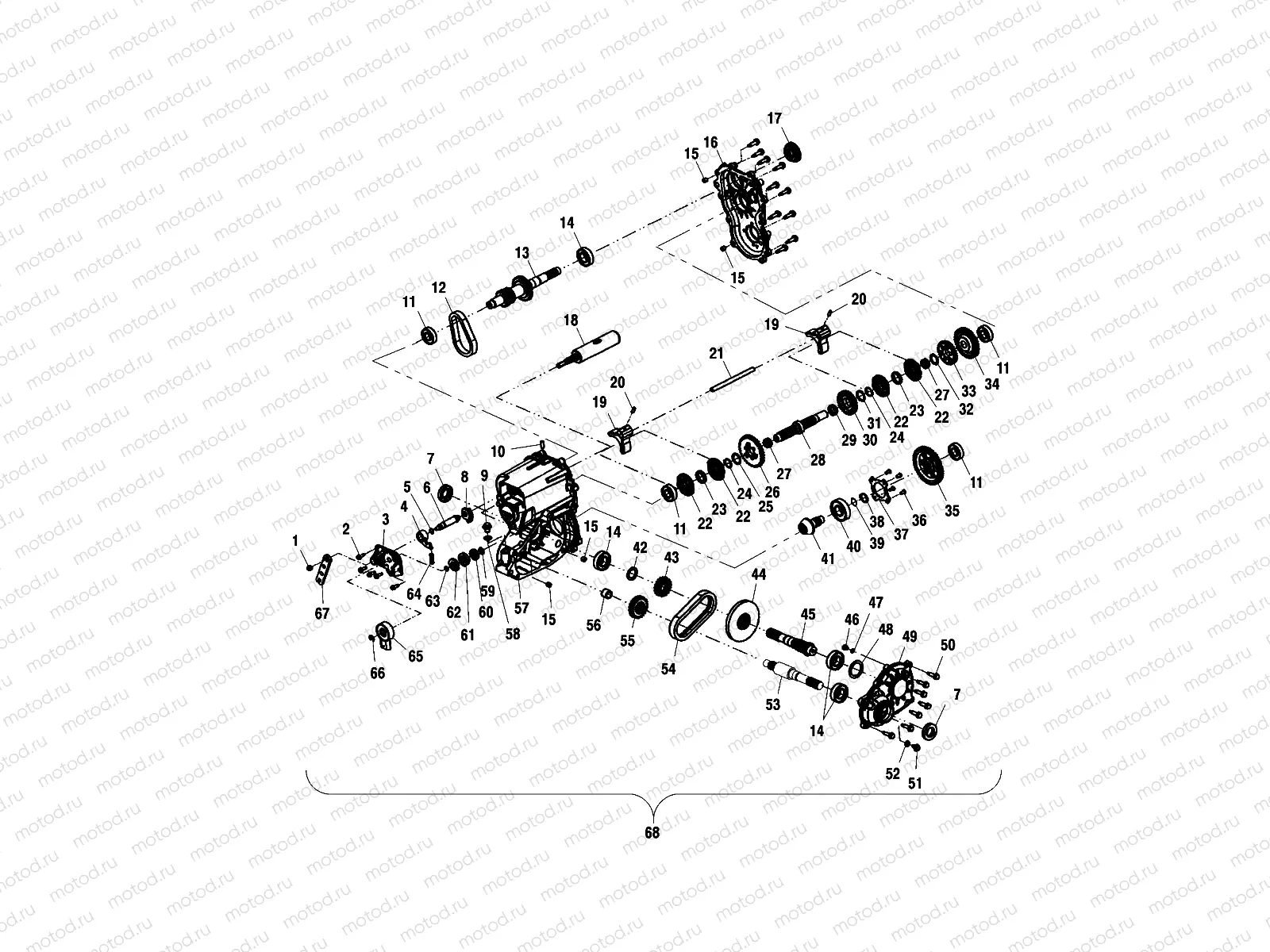

GEARCASE - C10RD50AA (4976437643C13) | GEARCASE - C10RD50AA (4976437643C13)

GEARCASE - C10RD50AA (4976437643C13) | GEARCASE - C10RD50AA (4976437643C13)

Например: 3233961

1

3233961

NUT-LOCK HEX FLANGE NYLON 5/16

2

3233826

Vis

3

3233827

COVER-SECTOR GEARS

4

3233829

PAWL-DETENT

5

3233828

O-Ring

6

3233831

SHAFT-SHIFT

7

3234892

SEAL-VITON TRIPLE LIP

8

3233832

GEAR-SECTOR 31T-CUT TO 11T

9

3233711

PLUG OIL FILL

10

3233524

TUBE VENT

11

3233018

Roulement

12

3233036

CHAIN SILENT 34P

13

3233974

SUBASM-INPUT SHAFT

14

3233019

Roulement

15

3233529

PIPE KNOCK

16

3233865

COVER-MAIN LH

17

3234851

SEAL

18

3233841

DRUM-SHIFT

19

3234141

SUB ASM-SHIFT FORK W/PIN

20

LR--

CALIPER, BRAKE, RH

21

3233860

RAIL-SHIFT SHAFT C VERSION

22

3233875

DOG-ENGAGEMENT 6 FACE

23

3233849

SPRING-WAVE

24

3233850

RING-RETAINING

25

3233851

Rondelle

26

3233852

GEAR-33T 6 FACE ENGAGEMENT

27

3233718

BEARING NDL SPLIT CAGE

28

3233892

SHAFT-REVERSE

29

3233103

BEARING NEEDLE

30

3233893

SPROCKET-24T 6 FACE

31

3233894

Rondelle

32

3233855

Rondelle

33

3234025

GEAR-32T

34

3233857

GEAR-37T HELICAL

35

3233847

Gear, 47T

36

3233608

Vis

37

3233609

COVER BEARING

38

3233106

RING SNAP

39

3233357

Entretoise

40

3233607

BEARING BALL

42

3233619

WASHER THRUST

43

3233843

SPROCKET-19T

44

3234912

SUBASM-GRND SPIRL BVL(411467)

45

3233622

SHAFT REAR OUTPUT

46

3233582

BUTTON THRUST

47

3233583

SHIM .450 X .265

48

3233611

SHIM (KIT)

49

3233845

Cover, Output, Front

50

3234114

SCR-TAPPING HEX WASHER HD 5/16

51

3233777

PLUG-HEX FLANGE

52

3233254

WASHER PLUG

53

3233625

SHAFT FRONT OUTPUT

54

3233408

CHAIN SILENT 40P 11W

55

3233844

SPROCKET-22T

56

3233552

BUSHING GARLOCK

57

3234046

Gearcase, Main

58

3233324

Rondelle

59

3233840

O-Ring

60

3233839

GEAR-SECTOR 16T

61

3233838

DISC-LOCKOUT

62

3233837

DETENT-STAR

63

3233836

O-Ring

64

3233830

SPRING-COMPRESSION

65

3236115

SWITCH-ROTARY 6 PIN

66

3233834

RING-RETAINING

67

3233825

BELLCRANK-HLNRP

68

1341460

Asm., Main Gearcase
