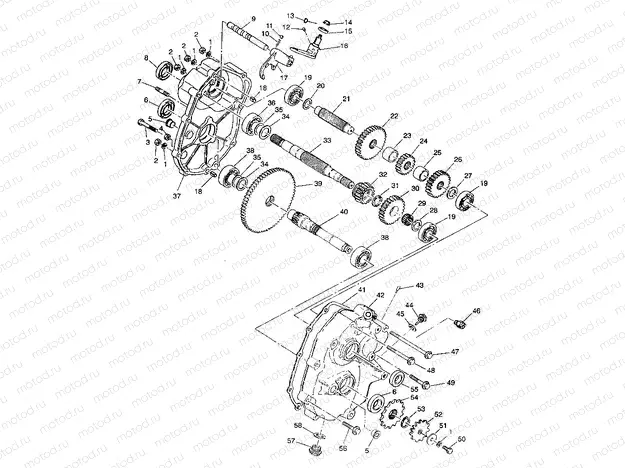

Главная Каталог товаров Polaris EPC 1993 Polaris ATV Polaris 1993 250 4X4 (W938127) Polaris 1993 ATV GEARCASE ASSEMBLY 4X4 250 W938127 (4924042404031A) | GEARCASE ASSEMBLY 4X4 250 W938127 (4924042404031A)

GEARCASE ASSEMBLY 4X4 250 W938127 (4924042404031A) | GEARCASE ASSEMBLY 4X4 250 W938127 (4924042404031A)

GEARCASE ASSEMBLY 4X4 250 W938127 (4924042404031A) | GEARCASE ASSEMBLY 4X4 250 W938127 (4924042404031A)

Например: 9990000

0

9990000

Suspension, Rear

1

3231545

WASHER, SPRING(10)

2

3231604

NUT(10)

3

7515485

Vis

4

7542404

Nut

5

3231517

SUPPORT

6

3231516

SEAL, OIL

7

3231608

STUD

8

3231507

SEAL, OIL

9

3231579

SHAFT, SHIFT

10

3231550

Spring

11

3231502

BALL, STEEL

12

3231607

PIN

13

7721113

KEY, HI-PRO

14

3231555

Nut (Lock)

15

3231521

SEAL, OIL

16

3231584

SHAFT SELECT

17

3231501

SHIFTER

18

3231543

PIPE, KNOCK

19

3231511

Roulement

20

3231565

SHIM 20, 0.1

20

3231564

SHIM 20, 0.3

21

3231512

SHAFT

22

3231514

"""GEAR"""

23

3231581

Entretoise

24

3231510

GEAR

25

3231587

Entretoise

26

3231529

GEAR

27

3231513

Rondelle

28

3231527

Rondelle

29

3231526

BEARING,NEEDLE

30

3231524

GEAR

31

3231525

Rondelle

32

3231585

GEAR

33

3231580

SHAFT, INPUT

34

3231505

Rondelle

35

3231562

SHIM 25, 0.3

35

3231563

SHIM 25 0.1

36

3231506

Roulement

37

3231594

CASE, LH

38

3231609

Roulement

39

3231582

GEAR

40

3231588

SHAFT, OUTPUT

41

3231553

PACKING

42

3231583

CASE, RH

43

3231548

PIPE,BREATHER

44

3231561

PLUG, OIL

45

3231539

Gasket

46

4110062

SW REV./NEUT.INDIC.

47

3231606

Vis

48

3231603

Vis

49

3231605

Vis

50

3231536

Vis

51

3231599

Rondelle

52

3221041

SPKT 13T SPLINED

52

3221058

SPKT 11T

53

3231531

C RING

54

3221044

SPKT 12T

55

3231528

SEAL, OIL

56

3231602

Vis

57

3231569

PLUG,DRAIN,20MM,MAGNET

58

3231592

Gasket
