Главная Каталог товаров Polaris EPC 2001 Polaris ATV Polaris 2001 XPLORER (A01AG25CA) Polaris 2001 ATV GEARCASE - A01AG25CA (4963866386C001) | GEARCASE - A01AG25CA (4963866386C001)

GEARCASE - A01AG25CA (4963866386C001) | GEARCASE - A01AG25CA (4963866386C001)

GEARCASE - A01AG25CA (4963866386C001) | GEARCASE - A01AG25CA (4963866386C001)

Например: 1341314

0

1341314

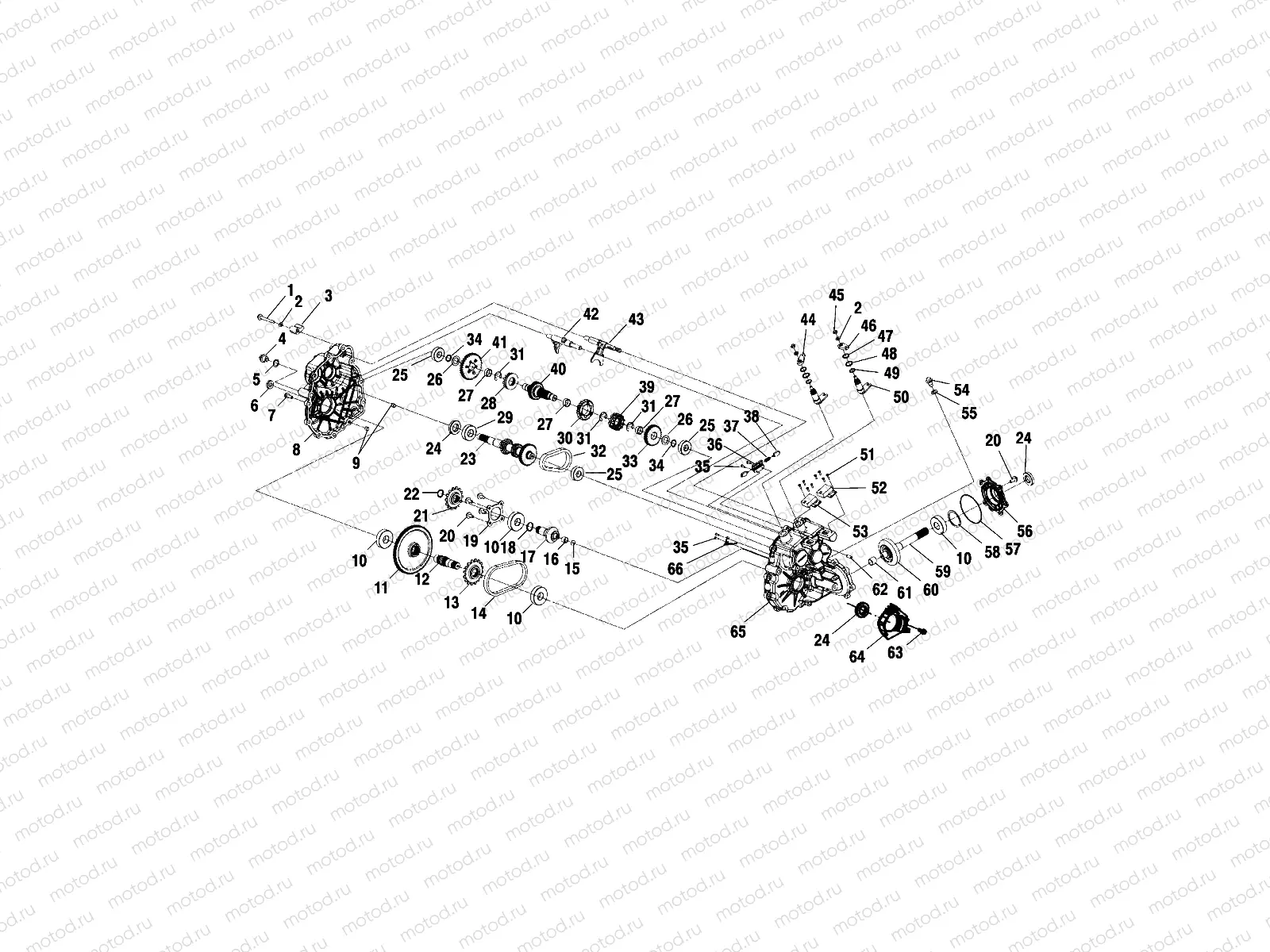

GEARCASE,HLR,CDS,4X4,3.34 (Incl. 1-64)

0

1341381

Asm., Gearcase (Incl. 1-38)(If built after 4/01/01) (Incl. 1-38)(If built after 4/01/01)

1

3233734

SCREW,CAP

2

3233054

Rondelle

3

3233735

DAMPENER,CARB,VIBRATION

4

3233448

PLUG

5

3233035

Rondelle

6

3233527

BUSHING PIVOT

7

3233252

Vis

8

3234036

GEARCASE-LH MACH

9

3233529

PIPE KNOCK

10

3233020

Roulement

11

3233360

GEAR O/P 100T HCR

12

3233544

SHAFT OUTPUT

13

3233729

SPROCKET 15/26T

14

3233546

CHAIN ROLLER

15

3233542

WASHER THRUST

16

3233541

BUSHING GARLOCK

17

3233540

SHAFT PINION 13T

18

3233306

RING RETAINING

19

3233263

COVER-BEARING

20

3233539

Vis

21

3233730

SPROCKET 15/22T

22

3233537

RING RETAINING

23

3233704

SHAFT-INPUT HIGH/LOW/REVERSE

24

3233788

SEAL-TRIPLE LIP

24

3233788

SEAL-TRIPLE LIP

25

3233018

Roulement

26

3233176

Rondelle

27

3233718

BEARING NDL SPLIT CAGE

28

3233732

DOG ENGAGEMENT LOW

29

3233019

Roulement

30

3233719

SPROCKET 24T

31

3233720

RING RET-RING EXTERNAL

32

3233036

CHAIN SILENT 34P

33

3233722

GEAR 30T

34

3233177

RING RETAINING

35

3233747

Rondelle (Lock)

35

3233747

Rondelle (Lock)

36

3233309

BRACKET INTERLOCK

37

3233032

Spring

38

3233308

PIN INTERLOCK

39

3233721

DOG ENGAGEMENT HIGH/REV

40

3233733

SHAFT REVERSE 29T

41

3233731

GEAR 33T

42

3233706

SHIFT FORK-LOW

43

3233633

FORK SHIFT HIGH/REV

44

3233547

BELLCRANK

45

3233961

NUT-LOCK HEX FLANGE NYLON 5/16

46

3233153

BELLCRANK

47

3233045

RING RETAINING

48

3233040

Rondelle

49

3233548

O-Ring

50

3233549

SHAFT SHIFT

51

3233749

Vis

51

3233749

Vis

52

3234002

SWITCH-GEAR INDICATION 3 PSTN

53

3234001

SWITCH-GEAR INDICATION 2 PSTN

54

3233711

PLUG OIL FILL

55

3233324

Rondelle

56

3233556

COVER SNORKEL

57

3233555

O-Ring

58

3233554

SHIM

59

3234939

SHAFT-SNORKEL

59

3233723

SNORKEL SUBASM SHAFT

60

3233898

GEAR-25T

61

3233552

BUSHING GARLOCK

62

3233037

VENT

63

3233026

Vis

64

3233897

GUIDE-CHAIN

65

3233895

GEARCASE-RH HLR

65

3233895

GEARCASE-RH HLR

66

3233043

DEFLECTOR OIL
