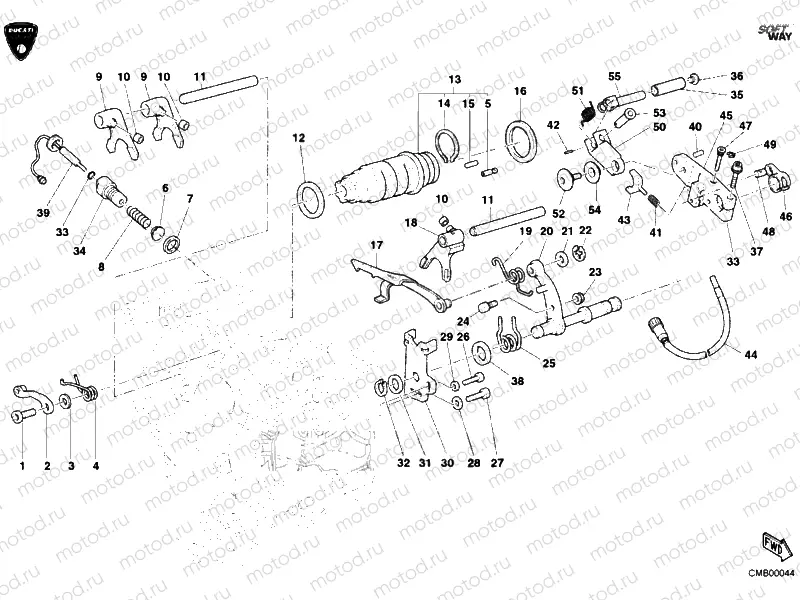

GEAR CHANGE MECHANISM » UNCLASSIFIED

GEAR CHANGE MECHANISM » UNCLASSIFIED
Например: 77910391A
1
77910391A
Vis (M8x21,5)
2
45520181A
GEAR FIXING CLICK ASSEMBLY
3
85210532A
Rondelle
4
79910821A
SPRING, RETURN
5
82111121A
SPECIAL ROLLER
6
23610191C
GEARBOX SENSOR FEELER PIN
7
85211381A
.THRUST WASHER 0.3 MM
7
85211391A
.THRUST WASHER 0.5 MM
7
85211401A
.THRUST WASHER 1 MM
8
79911021A
Spring
9
18010092A
GEAR SELECTOR FORK,1ST/4TH-2ND/3RD
10
71010071A
BUSH
11
82113881A
FORK PIN
12
85210051A
pc - .THRUST WASHER 1 MM
12
85210051B
.THRUST WASHER 1.1 MM
12
85210061A
. THRUST WASHER 02MM
12
85210071A
. THRUST WASHER 0.3 MM
12
85210931A
.THRUST WASHER 0.9 MM
13
18220151AA
CAM, GEAR SHIFT
14
88210061A
.NEEDLE RETAINING RING
15
82110701A
.SPECIAL ROLLER
16
066013060
.THRUST WASHER 45.2X49X1.0
16
066013061
.THRUST WASHER 45.2X49X0.2
16
066013062
.THRUST WASHER 45.2X49X0.3
16
85210841A
THRUST WASHER 1.2 MM
16
85210851B
THRUST WASHER 1.1 MM
16
85210941A
pc - .THRUST WASHER 45.2X49X0.9
17
18020261A
CONTROL FORK
18
18010102A
GEAR SELECTOR FORK 5TH/6TH
19
79912961A
Return spring
20
82110011A
GEAR SELECTOR SHAFT
21
076592205
.THRUST WASHER 10.5X15X0.2
22
88450341B
pc - . SPRING RING
23
74811221A
Nut
24
82111772A
GEARCHANGE LEVER PIN
25
79915061A
SPRING, SHIFT RETURN
26
77940181A
Vis
27
77940251A
Vis
28
85310021A
pc - Rondelle (spring)
29
85211721A
Rondelle (6x14.2x1.3)
30
82610261A
STOPPER PLATE
31
040029125
.THRUST WASHER 15.5X22X0.2
31
040029126
.THRUST WASHER 15.5X22X0.5
32
735001542
Seeger
33
88650121A
O-Ring
34
77912071A
HOLDER SENSOR
35
71210261A
BUSH
36
77940092A
Vis
37
77940191A
Vis
38
88110121A
CENTERING RING
39
55210301A
THROTTLE VALVE POTENTIOMETER
40
77911851A
PIN
41
79910921A
Spring
42
68540011A
pc - .COTTER PIN
43
83011741A
SKID PLATE
44
55210231B
SENSOR HALL
45
45610231A
Gear change pedal
46
45610221A
Gear change pedal
47
77912271A
Vis (spec)
48
71010761A
SPINDLE, TAPER
49
88450021A
pc - .SPRING RING
50
45610201A
RTICULATED LEVER
51
79911011A
Spring
52
77912001A
Vis (spec)
53
82111081A
PIN
54
85211221A
.BUSH
55
82111092A
PIN
56
85310041A
.SPRING WASHER 6 MM
