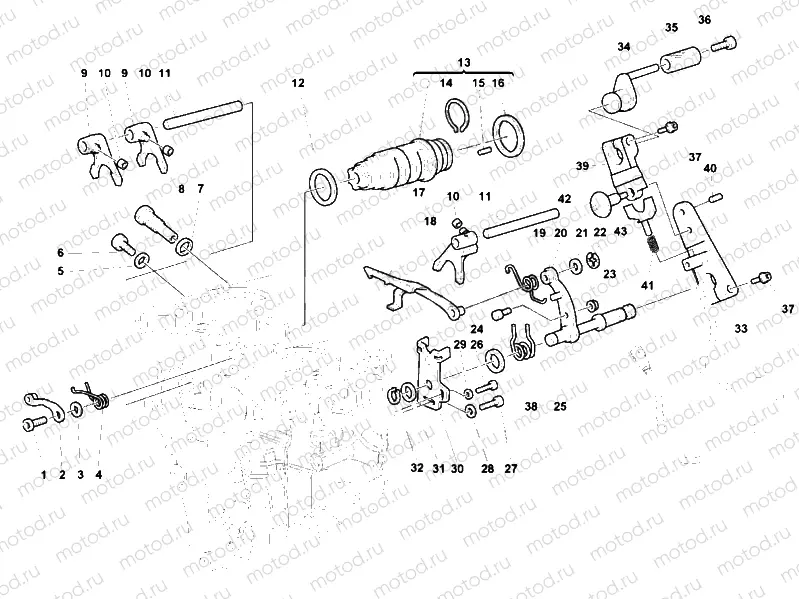

GEAR CHANGE MECHANISM » UNCLASSIFIED

GEAR CHANGE MECHANISM » UNCLASSIFIED
Например: 77910391A
1
77910391A
Vis (M8x21,5)
2
45520181A
GEAR FIXING CLICK ASSEMBLY
3
85210532A
Rondelle
4
79910821A
SPRING, RETURN
5
42020008A
10 pc - Rondelle
6
709312116
SCREW M8X1.00X14
7
027291090
pc - .GASKET 16.2X24X2
8
77912033A
.SCREW M16X1.5
9
18010092A
GEAR SELECTOR FORK,1ST/4TH-2ND/3RD
10
71010071A
BUSH
11
82113881A
FORK PIN
12
85210051A
pc - .THRUST WASHER 1 MM
12
85210061A
. THRUST WASHER 02MM
12
85210071A
. THRUST WASHER 0.3 MM
13
18220062C
FORK DRUM
14
88210061A
.NEEDLE RETAINING RING
15
82110701A
.SPECIAL ROLLER
16
066013060
.THRUST WASHER 45.2X49X1.0
16
066013061
.THRUST WASHER 45.2X49X0.2
16
066013062
.THRUST WASHER 45.2X49X0.3
17
18020261A
CONTROL FORK
18
18010102A
GEAR SELECTOR FORK 5TH/6TH
19
79912961A
Return spring
20
82110011A
GEAR SELECTOR SHAFT
21
076592205
.THRUST WASHER 10.5X15X0.2
22
88450341B
pc - . SPRING RING
23
74810401A
20 pc - Nut
24
066013165
.GEARCHANGE LEVER PIN
25
79915061A
SPRING, SHIFT RETURN
26
77150678B
pc - Vis
27
77151238C
0 pc - Vis (M8x18)
28
85310021A
pc - Rondelle (spring)
29
85211721A
Rondelle (6x14.2x1.3)
30
82610261A
STOPPER PLATE
31
040029125
.THRUST WASHER 15.5X22X0.2
31
040029126
.THRUST WASHER 15.5X22X0.5
32
735001542
Seeger
33
45610181A
Gear change pedal
35
71210261A
BUSH
36
77914461A
Vis
37
77150668B
Vis
38
88110121A
CENTERING RING
39
45610171A
Gear change pedal
40
77911851A
PIN
41
79910921A
Spring
42
77911841A
Vis (spec)
43
83011741A
SKID PLATE
