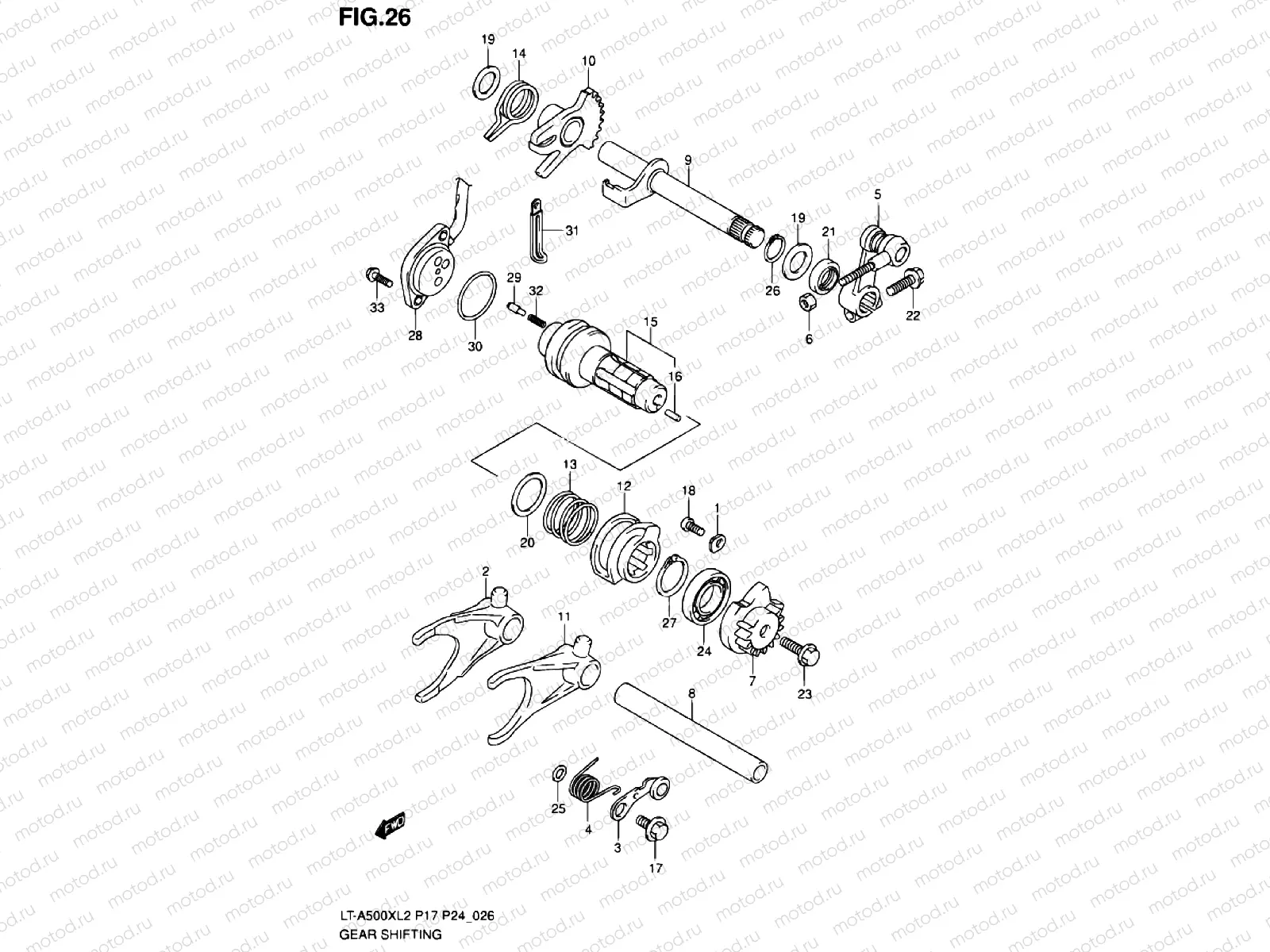

GEAR CHANGE

GEAR CHANGE

Например: 24741-21A00

1

24741-21A00

RETAINER

170 ₽/шт

2

25240-31G00

FORK, REVERSE GR SHIFT - No longer available

2

25240-31G10

Fork,gear shift

3

25350-31G00

Stopper,shift c

4

25355-35F01

SPRING,SHIFT

242 ₽/шт

5

25360-11H00

Arm,select

6

08310-0006B

Гайка

81 ₽/шт

7

25381-11H00

Plate,gr shift

8

25411-38A00

SHAFT,GEAR SHIFT FORK(L:115)

1 458 ₽/шт

9

25510-31G00

Shaft,sub t/m s

10

25540-31G00

ear,sub t/m sh

11

29510-31G00

FORK, SUB T/M GEAR SHIFT

11

29510-31G10

Fork,sub t/m ge

12

29611-31G00

Cam,sub t/m gea

13

29612-31G00

Spring,sub t/m

14

29613-31G00

Spring,shift ar

15

29620-31G11

Shaft,sub t/m g

16

04221-04089

шпонка ведомой звездочки балансира

81 ₽/шт

17

09111-06041

BOLT(6X14.3)

1 520 ₽/шт

18

09125-06122

SCREW(6X12)

1 250 ₽/шт

19

09181-14195

SHIM(14X24X1)

1 520 ₽/шт

20

09181-25139

ШАЙБА

1 720 ₽/шт

21

09283-14006

САЛЬНИК МЕХАНИЗМА ВЫБОРА КПП

678 ₽/шт

22

01550-0620A

Болт

81 ₽/шт

23

01550-0630A

БОЛТ

102 ₽/шт

24

08110-69040

Roulement

25

08211-06121

Шайба упорная

1 170 ₽/шт

26

08331-3114A

КЛИПС

97 ₽/шт

27

08331-31259

CIRCLIP

146 ₽/шт

28

37720-31G00

Base assy,gear

29

09209-05011

ШТИФТ

178 ₽/шт

30

09280-35006

O RING(D:2.4,ID:35.5)

221 ₽/шт

31

09404-06039

Clamp(L:65)

194 ₽/шт

32

09440-04010

ПРУЖИНА

113 ₽/шт

33

07120-0516B

БОЛТ

1 520 ₽/шт

33

07120-0516B

БОЛТ

1 520 ₽/шт
