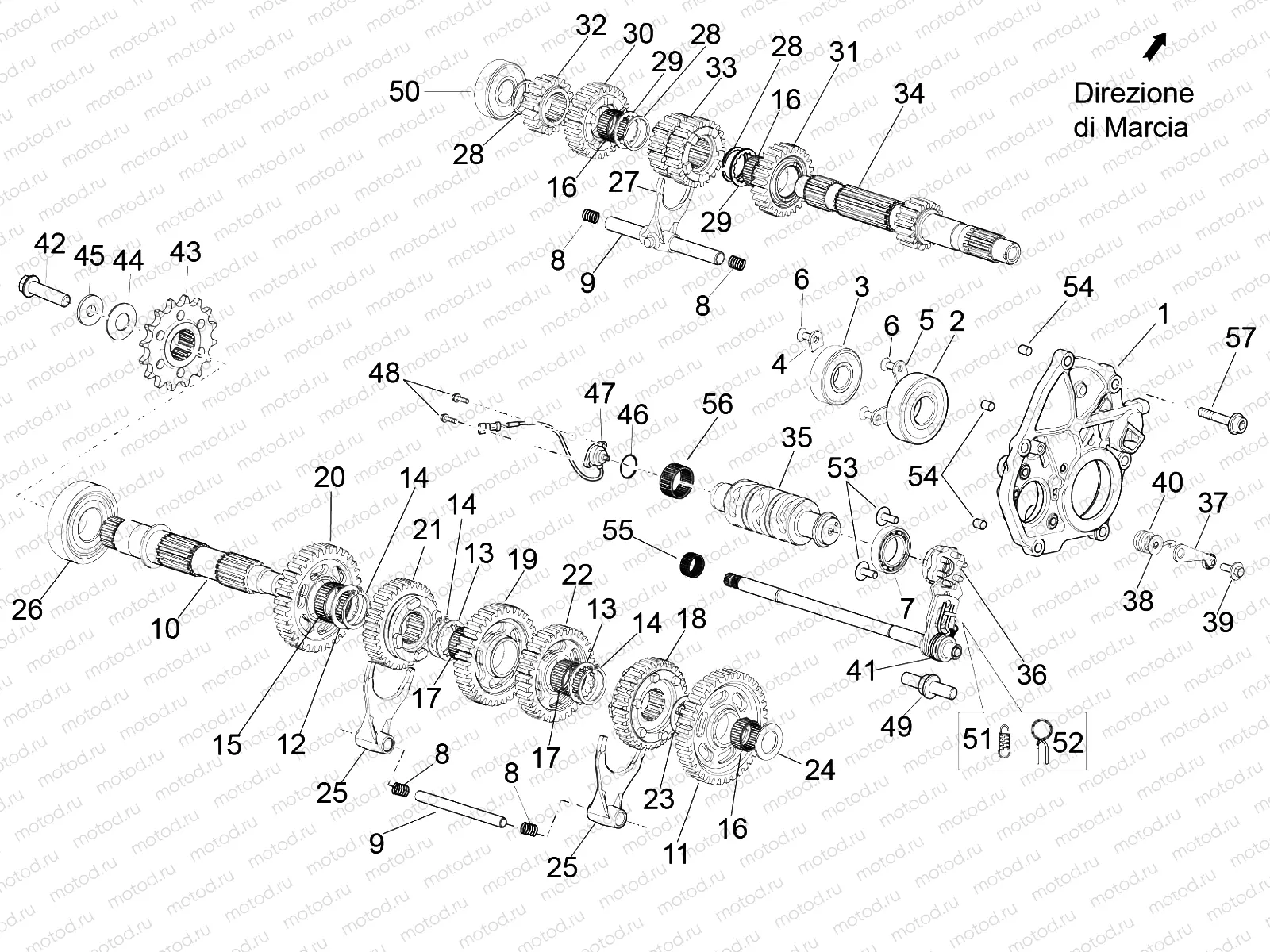

Gear box - Gear assembly

Gear box - Gear assembly
Например: 2A000436
1
2A000436
Trasmission support
2
898634
Roulement
3
898635
Roulement
4
AP9150145
Check bearing plate
5
857271
Check bearing plate
6
AP8152166
screw M6x16
7
857250
Roulement
8
857175
Spring
9
2A000440
Fork shaft
10
857236
Driven shaft
11
2A000879
1st wheel gear Z=39
12
857308
Rondelle
13
857247
Clearance washer
14
857248
3 pc - Seeger
15
857309
Roller cage 30x35x13
16
857233
Roller cage 24x28x13
17
857244
Roller cage 26x30x15,6
18
2A000883
5th wheel gear
19
2A000285
3rd gear on the sec. Z=34
20
2A000284
nd gear on the sec. Z=33
21
2A000288
6th gear on the sec. Z=34
22
2A000286
4th gear on the sec. Z=31
23
857246
Rondelle
24
857245
Rondelle
25
2A000558
Fork
26
898633
Roulement
27
2A000453R
Fork
28
857232
pc - Rondelle
29
857234
Clearance washer
30
2A000281
6th gear on the sec. Z=27
31
2A000280
5th gear on the sec. Z=23
32
2A000278
nd gear on the sec. Z=16
33
2A000554
3rd-4th pinion gear Z=20/21
34
2A000552
Primary gear shaft
35
857251
Shift cam
36
857123
Index washer
37
857274
Index assy. lever
38
AP9150051
Rondelle
39
AP9150006
Screw w/ flange M6x15
40
2A000048
Spring
41
857253
Gear shaft+spring cpl.
42
AP8152318
pc - Vis
43
890827
Pinion Z=16
44
854909
Belleville spring
45
854951
Entretoise
46
857494
O-Ring
47
1A018096R
Gear position sensor
48
AP8152273
0 pc - Vis
49
899599
Threaded pin
50
898636
Roulement
51
857260
Fasten spring
52
2A000047
Spring
53
GU98370616
2 pc - Vis (M6x16 inox)
54
857427
Pin M8x12
55
B045224
Needle bearing
56
857249
Needle bearing
57
AP8152287
0 pc - Vis
