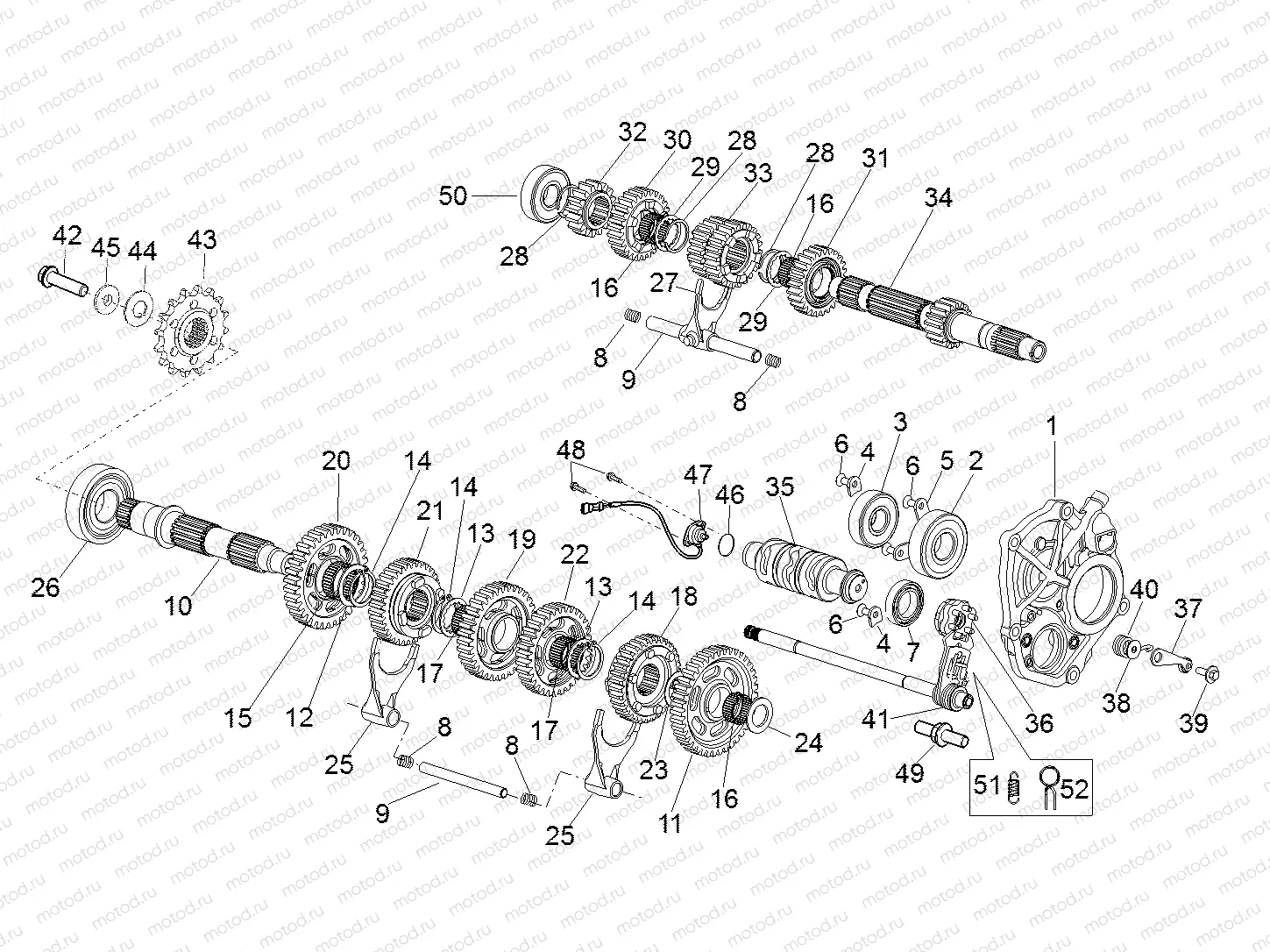

Gear box

Gear box
Например: 2A000069
1
2A000069
Trasmission support
2
898634
Roulement
3
898635
Roulement
4
AP9150145
Check bearing plate
5
857271
Check bearing plate
6
AP8152166
screw M6x16
7
857250
Roulement
8
857175
Spring
9
857284
Fork shaft
10
857236
Driven shaft
11
857237
1st wheel gear Z=39
12
857308
Rondelle
13
857247
Clearance washer
14
857248
3 pc - Seeger
15
857309
Roller cage 30x35x13
16
857233
Roller cage 24x28x13
17
857244
Roller cage 26x30x15,6
18
857241
th wheel gear Z=34
19
857239
rd wheel gear Z=34
20
857238
nd wheel gear Z=33
21
857242
6th wheel gear Z=33
22
857240
th wheel gear Z=32
23
857246
Rondelle
24
857245
Rondelle
25
85253R
Fork
26
898633
Roulement
27
85252R
Fork
28
857232
pc - Rondelle
29
857234
Clearance washer
30
857231
6th pinion gear Z=27
31
857230
th pinion gear Z=26
32
857459
2nd pinion gear Z=16
33
857229
3rd-4th pinion gear Z=20/Z=22
34
857458
Primary gear shaft
35
857251
Shift cam
36
857123
Index washer
37
857274
Index assy. lever
38
AP9150051
Rondelle
39
AP9150006
Screw w/ flange M6x15
40
2A000048
Spring
41
857253
Gear shaft+spring cpl.
42
AP8152318
pc - Vis
43
890827
Pinion Z=16
44
854909
Belleville spring
45
854951
Entretoise
46
857494
O-Ring
47
857265
Gear position sensor
48
AP8152280
Vis
49
899599
Threaded pin
50
898636
Roulement
51
857260
Fasten spring
52
2A000047
Spring
