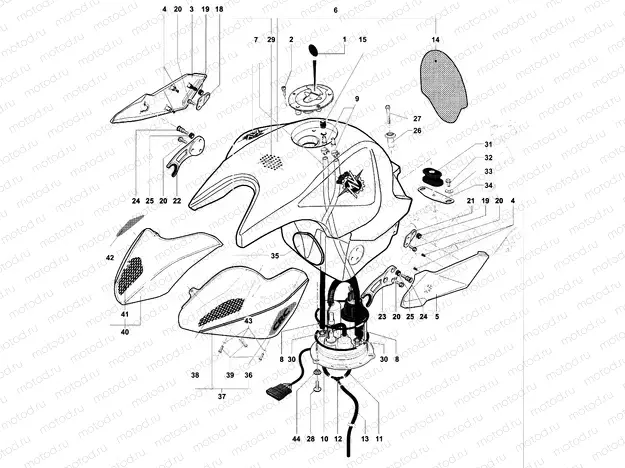

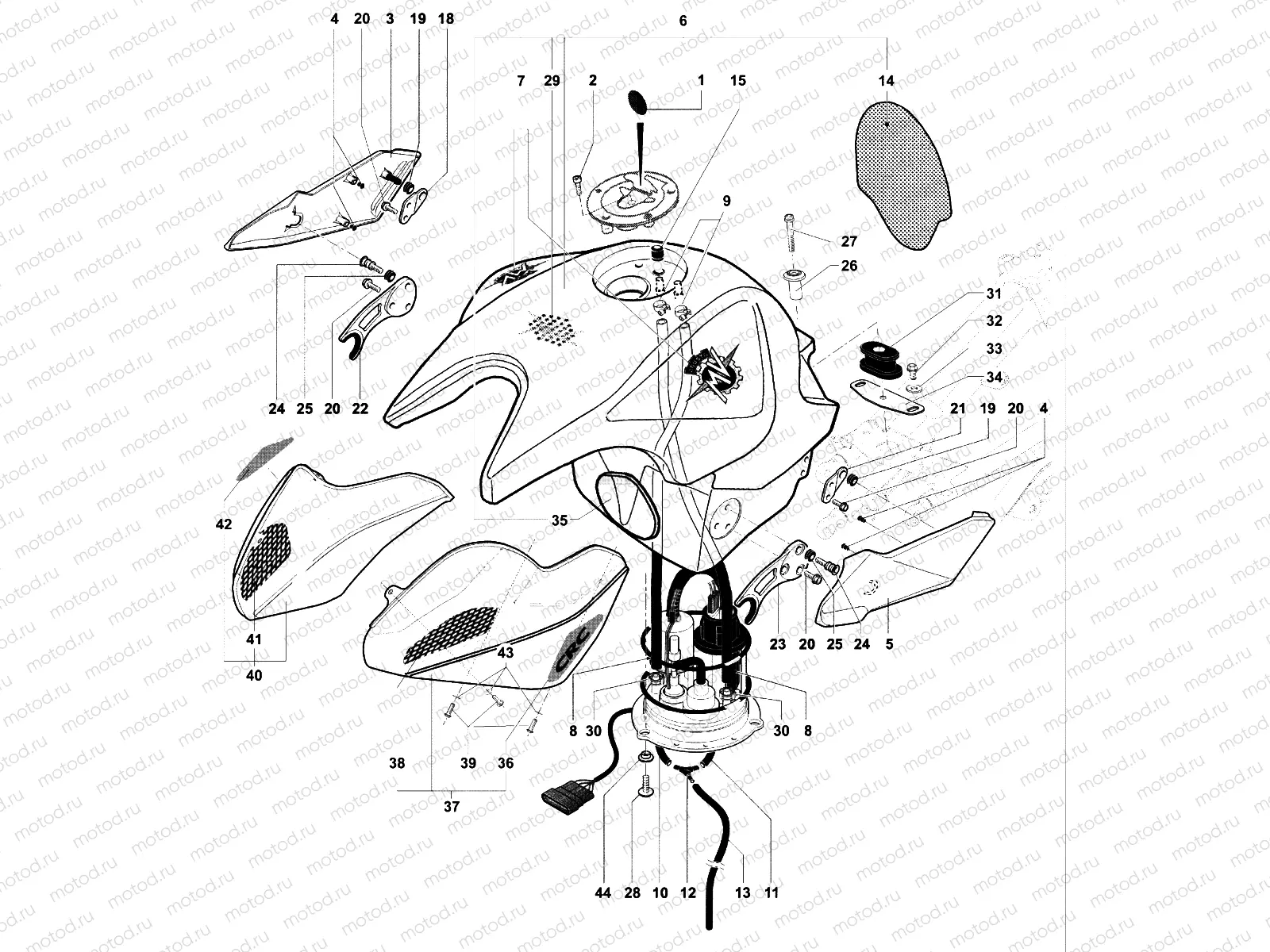

Fueltank Assembly

Fueltank Assembly
Например: SPMV800092664
1
SPMV800092664
pc - DECAL
2
8D0066531
Vis
3
80A098314
RH TANK PANEL
4
SPMV800090978
2 pc - CUSHION, FUEL TANK FAIRING SID
5
80A098313
LH TANK PANEL
6
800099325
FUEL TANK RED BRUTALE
6
8000A5184
FUEL TANK SILVER
6
80A099325
FUEL TANK BLACK BRUTALE
6
SPMV80A0A5184
Fuel tank
7
SPMV80A098832
DECAL
7
SPMV80B098832
DECAL
7
SPMV80C098832
EMBLEM MV
8
SPMV8A0090940
HOSE, VITON 6.5X10.5X475
9
8B0091687
Collier
10
SPMV800091695
HOSE, FUEL TANK BREATH, MEDIUM
11
SPMV800091690
HOSE, FUEL TANK BREATH, SHORT
12
SPMV800091689
CONECTOR, Y, FUEL TANK HOSE
13
SPMV800091688
HOSE, LARGE, FUEL TANK BREATH
14
SPMV80A0A5183
TANK PROTECTOR
14
SPMV800099324
TANK PROTECTOR
14
SPMV8000A5183
ROTECTOR, FUEL TANK
15
SPMV800090923
pc - Gasket
18
SPMV800090307
RH TANK BRACKET
19
SPMV800089293
CUSHION, D18xD8xE7,5
20
800062727
Vis
21
SPMV800090981
LH TANK BRACKET
22
SPMV800089784
UPPORT, RIGHT SIDE, FUEL TANK
23
SPMV800089785
UPPORT, LEFT SIDE, FUEL TANK
24
SPMV80A090977
is (spec)
25
SPMV800089293
CUSHION, D18xD8xE7,5
26
SPMV800099401
BUSH
27
SPMV8H00B2688
is
28
SPMV8A0089786
5 pc - SCREW, FLANGE M6
29
SPMV80D090321
GRAPHIC AIRBOX MV STARS
29
80B090321
TANK DECAL MILTI STAR
30
SPMV8C0092256
pc - Collier
31
SPMV800099326
5 pc - CUSHION, FIX, FUEL TANK
32
SPMV800062725
is
33
SPMV800056359
Rondelle
34
SPMV800098720
LATE
35
SPMV8000A0903
CUSHION, SMALL, FUEL TANK
36
800098827
EMBLEM CRC LH
37
800099429
LH AIRBOX COVER
38
SPMV800098705
LEFT GRID
39
8B0090901
Vis (spec)
40
SPMV800099430
AIRBOX RH SIDE
41
SPMV800098704
GRILLE R.BODY COVER
42
800098828
EMBLEM CRC RH
43
SPMV800092882
WASHER, PLASTIC, FAIRING, M
44
SPMV80A090392
Entretoise
