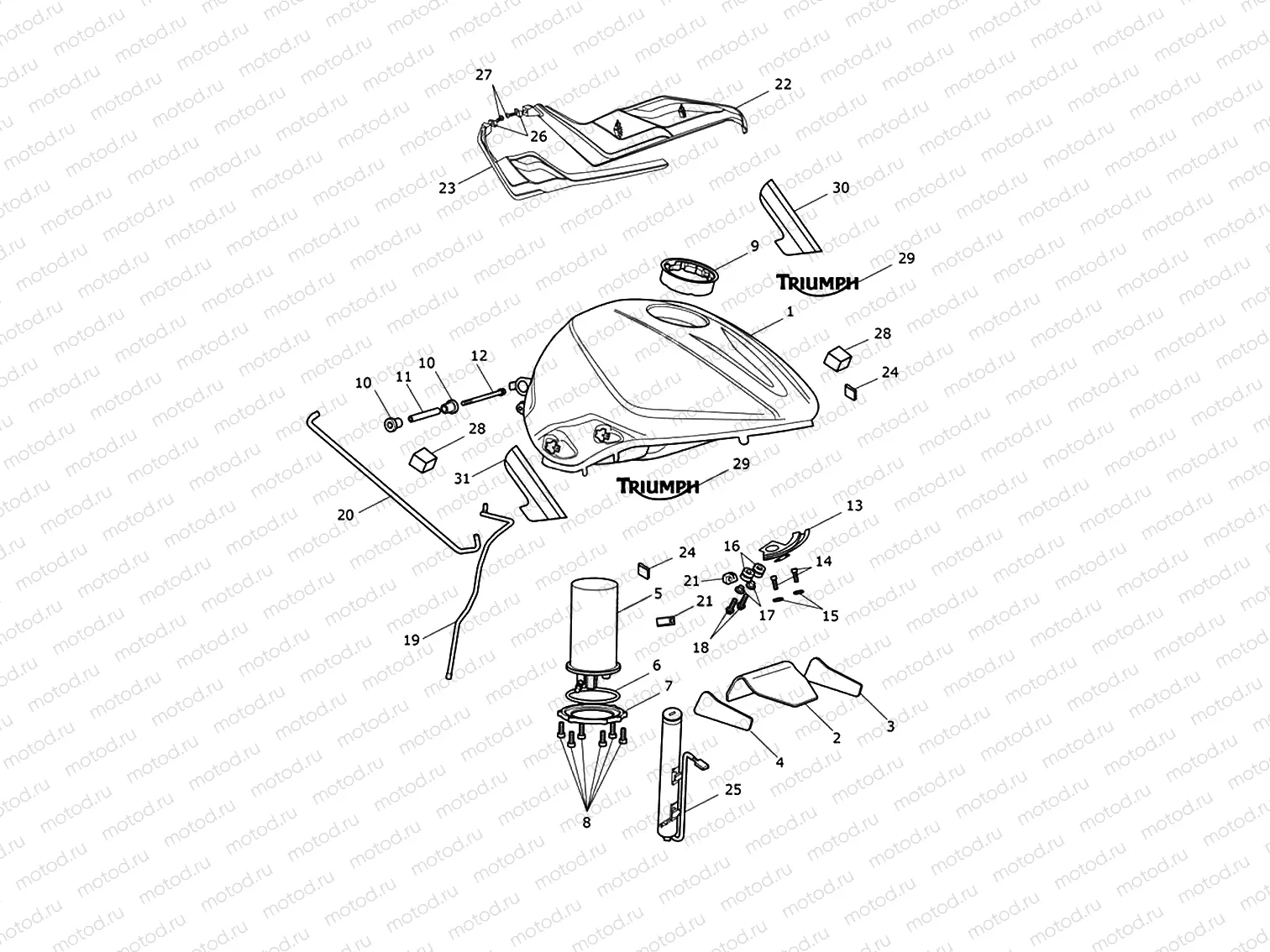

Fuel Tank, Fuel Pump & Fittings

Fuel Tank, Fuel Pump & Fittings

Например: T2401950-PI

1

T2401950-PI

Fuel Tank Spares Assembly

1 шт. в узле

1

T2403401-PI

Fuel Tank Spares Assembly

1 шт. в узле

2

T2401641

Heat Pad, Fuel Tank, Centre

1 шт. в узле

3

T2401642

Heat Pad, Fuel Tank, LH

1 шт. в узле

4

T2401643

Heat Pad, Fuel Tank, RH

1 шт. в узле

5

T2400735

Fuel Pump, 3.5 Bar

1 шт. в узле

6

T2401887

Seal, Fuel Pump Module

1 шт. в узле

7

T2400562

Location Plate, Pump

1 шт. в узле

8

T3331234

Screw, Torx, P/H, M6 x 20, Slv

6 шт. в узле

9

T2405034

Seal, Fuel Filler Cap

1 шт. в узле

10

T2400446

Rubber Bush

2 шт. в узле

11

T2401070

urned Spacer, Tank Mount

1 шт. в узле

12

T3205079

Bolt, HHF, Lghtd, M6 x 105, Sl

1 шт. в узле

13

T2405920

Bracket, Fuel Tank, Front Moun

1 шт. в узле

14

T3050334

Screw, Cap/Hd, M6 x 20, Slv

2 шт. в узле

15

T3555004

Washer, 6.4 x 14 x 1.6

2 шт. в узле

16

T3020601

Grommet, Castellated

2 шт. в узле

17

T3010710

Flanged Sleeve, 6.4 x 9.6 x 13

2 шт. в узле

18

T3200190

Bolt, RHHF, M6 x 25, SLV

2 шт. в узле

19

T3620052

Drain Hose, Fuel Tank

1 шт. в узле

20

T3620055

Drain Hose, Fuel Tank

1 шт. в узле

21

T2400641

Pad, Rubber

2 шт. в узле

22

T2405916

Infill, Fuel Tank, LH, Mouldin

1 шт. в узле

23

T2405917

Infill, Fuel Tank, RH, Mouldin

1 шт. в узле

24

T2405929

Spring Clip

2 шт. в узле

25

T2405926

Fuel Level Sender, Tube Type

1 шт. в узле

26

T3350129

Nut, Captive, M5

2 шт. в узле

27

T3330943

Screw, But/Hd, M5 x 14, Slv

2 шт. в узле

28

T3660149

Rubber Pad, 25 x 25 x 20

2 шт. в узле

29

T2407468

Decal, Fuel Tank

2 шт. в узле

30

T2403244

Decal, Tank, LH, DC

1 шт. в узле

30

T2403242

Decal, Tank, LH

1 шт. в узле

31

T2403243

Decal, Tank, RH

1 шт. в узле

31

T2403245

Decal, Tank, RH, DC

1 шт. в узле
