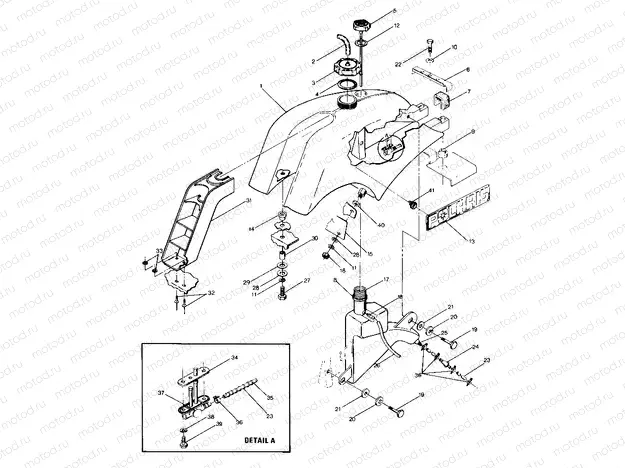

Fuel Tank Assembly (4913491349009A) | Fuel Tank Assembly (4913491349009A)

Fuel Tank Assembly (4913491349009A) | Fuel Tank Assembly (4913491349009A)
Например: 5430839
1
5430839
TANK,GAS,BLUE
2
5521154
LINE, VENT Substituted by 5521171
3
5430799
CAP, GAS TANK [No Longer Available]
4
5810288
GASKET, GAS CAP
5
5810141
GASKET-OIL CAP
5
5430801
DIPSTICK, OIL
5
2511162
CAP/DIPSTICK, OIL [No Longer Available]
5
5430779
CAP OIL TANK
6
5220674
PLATE,REAR TANK MT.
7
5810317
PAD,FUELTANK BRKT. Substituted by 8360026
8
5810311
PAD,SPOUT,OIL [No Longer Available]
9
5410428
GROMMET,FUEL TANK,REAR
10
7558301
WASHER FLAT
11
7552901
Rondelle (Lock)
13
5430864
LOGO,'POLARIS'
14
5410449
GROMMET,FUEL TANK,FRONT
15
5850070
FLAP,SPLASHGUARD
16
7542301
NUT HEX
17
5430762
TANK,OIL, 3&4 WHL.
19
7512113
Vis
20
7552801
Rondelle (Lock)
21
7558302
WASHER WROUGHT
22
7512252
SCREW(10)
23
8450037-600
FUEL LINE 3/16 ID(600 CM.)
24
2530009
Filtre à carburant (IN-LINE)
25
7052023
FITTING - OUTLET
26
9990000
Suspension, Rear
27
7512317
SCREW(10) Substituted by 5020499
28
7555716
Rondelle
29
5410430
WASHER, RUBBER
30
5330161
SPACER,MOUNTING
31
5430765
LOUVER,AIR INTAKE
32
7621457
RIVET
33
7558212
WASHER 13/64X1/2X18GA FL-Y (10
34
5810308
GASKET, FUEL VALVE
35
7042030
Spring
36
7080134
CLAMP-HOSE(10)
37
7052041
VALVE FUEL TANK
39
7512261
Vis
40
5410450
WASHER, RUBBER
41
7670052
CLIP, PUSH-ON(10)
