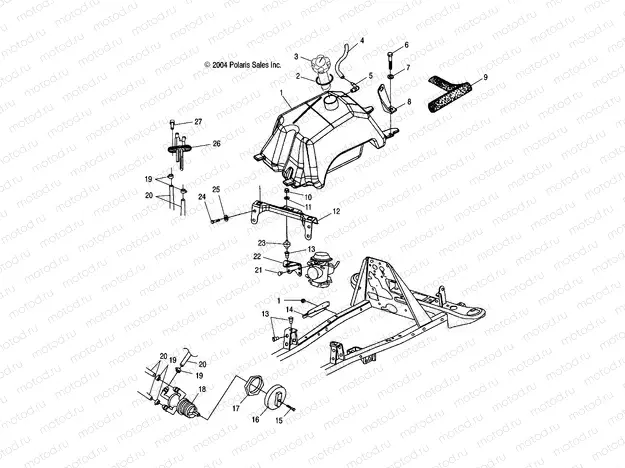

Главная Каталог товаров Polaris EPC 2005 Polaris ATV Polaris 2005 MAGNUM 330 2X4 (A05CB32AA) Polaris 2005 ATV FUEL TANK and CARBURETOR MOUNTING - A05CB32AA (4994889488A13) | FUEL TANK and CARBURETOR MOUNTING - A05CB32AA (4994889488A13)

FUEL TANK and CARBURETOR MOUNTING - A05CB32AA (4994889488A13) | FUEL TANK and CARBURETOR MOUNTING - A05CB32AA (4994889488A13)

FUEL TANK and CARBURETOR MOUNTING - A05CB32AA (4994889488A13) | FUEL TANK and CARBURETOR MOUNTING - A05CB32AA (4994889488A13)

Например: 2520409

1

2520409

ASM-FUEL TANK

2

5812123

Gasket

3

2871442

CAP FUEL GAUGE LONG

4

8360009-600

LINE FUEL 1/8 ID 600 CM.

5

5431053

VENT TANK

6

7512277

Vis

7

7558301

WASHER FLAT

8

5222155

BRKT-FUEL COVER MNT RH PLTD

8

5222154

BRKT-FUEL COVER MNT LH PLTD

9

5811899

FOAM-SEAL,17"

10

7542105

NUT HEX

11

7552801

Rondelle (Lock)

12

5245671-067

Bracket, Carburetor Support

13

7547069

NUTSERT HEX

14

5245394-067

SHIELD-SPLASH LH BLK

15

7517505

Vis

16

5432559

KNOB FUEL VALVE

17

5432733

NUT FUEL VALVE

18

7052161

VALVE 3-WAY

19

7080003

CLAMP HOSE

20

8450040-600

LINE FUEL 1/4 ID(600 CM.)

21

3084205

ASM. SCREW & WASHER

22

5245674-067

MOUNT CARBURETOR BLK

23

3110050

MOUNT CARBURETOR

24

7512276

Vis

25

7555859

WASHER FLAT

26

7052364

Fitting, Fuel Outlet, Dual

27

7515136

Vis
