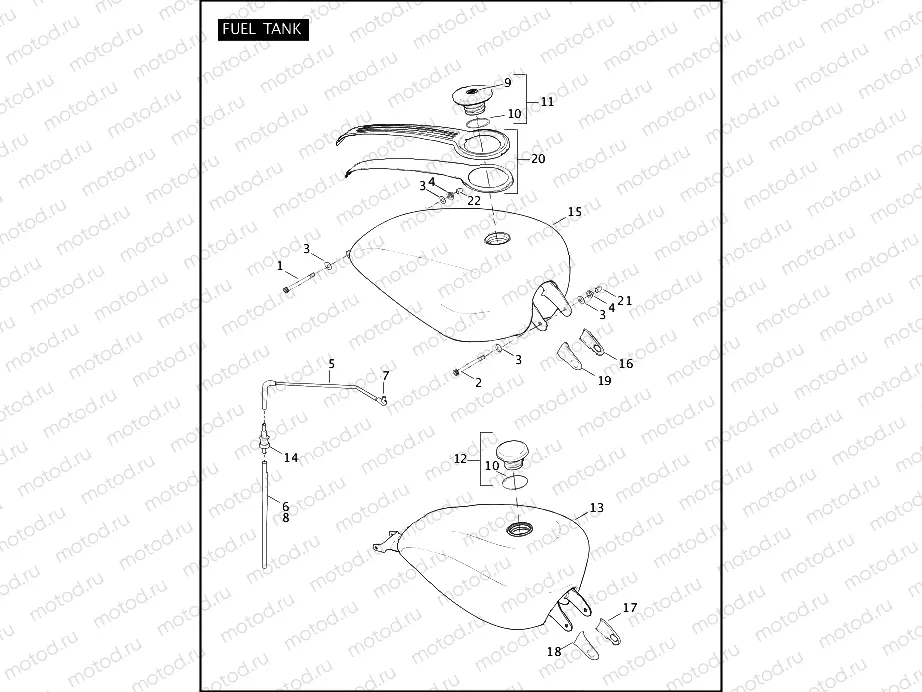

FUEL TANK

FUEL TANK

Например: 4758A

1

4758A

SCREW, HEX SOCKET

2

4771

SCREW, HEX SOCKET

3

6702

WASHER, PLAIN, TYPE A

4

7531

LOCKNUT.

5

VENTLINE, tank-to-valve, w/ 27250-96A

6

27096-04A

VENT LINE, VALVE TO ATMOSPHERE

7

27250-96B

CONNECTOR, 90 DEG, ELBOW

8

28911-04A

HOSE, VENTLINE VALVE TO CANIST

9

52494-04

MEDALLION, FUEL CAP

10

61100-194

CAP,FUEL,GASKET

11

FUEL CAP ASSEMBLY, vented, w/ 52494-04 & 61109-85D

12

FUEL CAP ASSEMBLY, w/ 61109-85D

12

61289-07D

CAP,FUEL,RH-THREAD,FILLER,SATI

13

61000-701

TANK,FUEL,SUB-ASSY,PRIMED

14

62150-85

VAPOR ORIFICE

15

61000-703

TANK,FUEL,SUB-ASSY,PRIMED

16

70903-04

TRIM,BRACKET,LH/FRT,F'TNK

17

70904-04

TRIM, LH, TANK

18

70917-04

TRIM,RH/FRT,F'TANK BRKT

19

70919-04

TRIM,RH/FRT,F'TANK BRKT

20

CONSOLE ASSEMBLY, fuel tank

21

89579-91

PROTECTIVE CAP

22

89586-04

CAP, THREAD PROTECTOR
