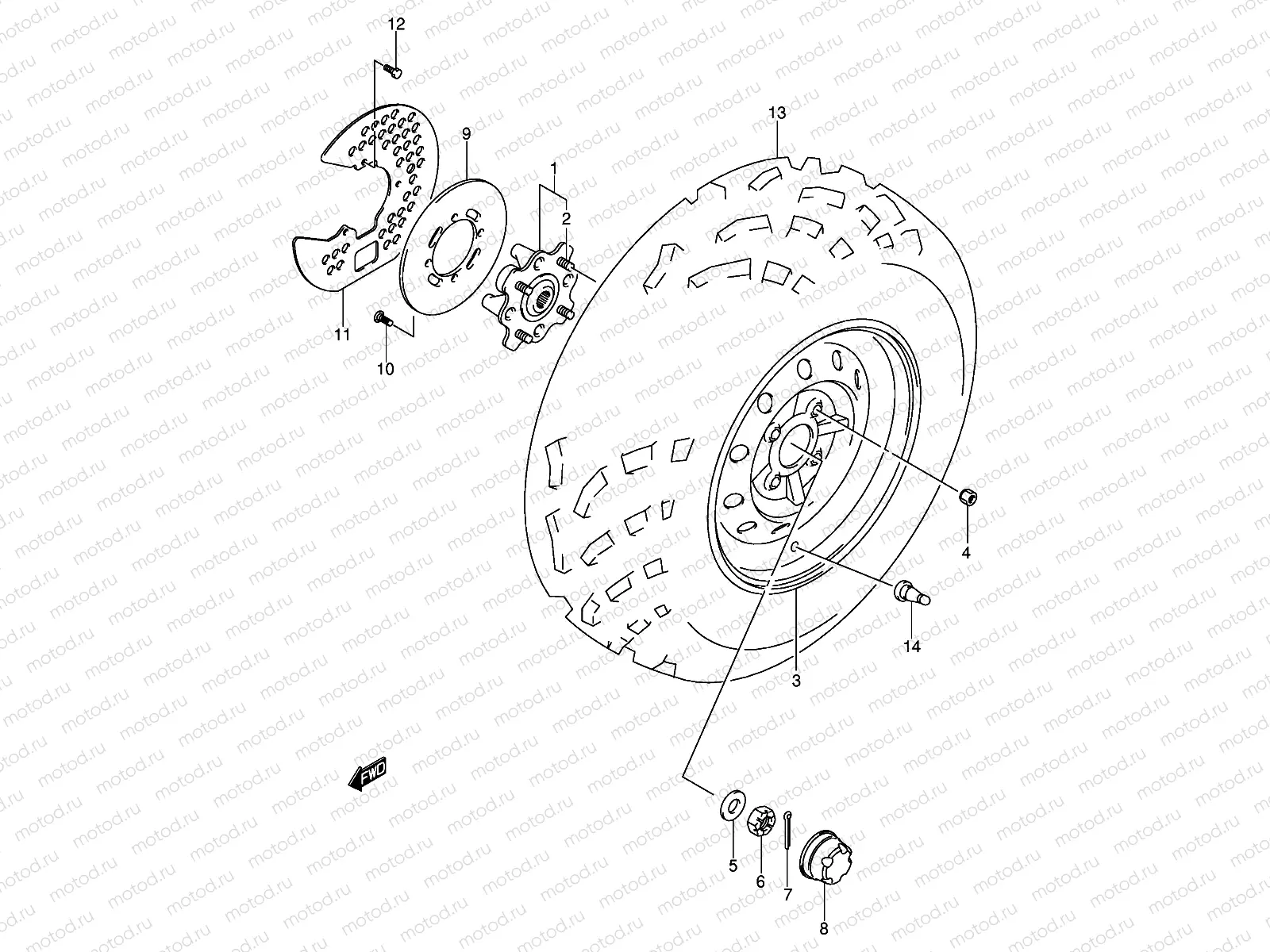

FRONT WHEEL

FRONT WHEEL
Например: 54110-38F20
1
54110-38F20
Hub,front
1
HUB, FRONT WHEEL [~F.NO.5SAAK46A3X102000]
2
09119-10049-XC0
Vis
3
55310-38F30-YL8
Rim,front wheel
3
55310-38F00-YL8
RIM,FR WHEEL 12X6.OAT
4
09140-10021
Nut
5
09164-18004
Rondelle
6
09141-18010
Nut
7
04111-4040A
PIN
820 ₽/шт
8
54725-09F01
Cap,wheel cente
9
DISC, FRONT BRAKE [F.NO.5SAAK46A3X102001~]
9
59211-38F20
Disc,front brak
9
DISC, FRONT BRAKE [~F.NO.5SAAK46A3X102000]
10
09106-08155
BOLT(8X20)
2 390 ₽/шт
11
COVER, FRONT DISC [MODEL K3]
11
59231-38F01
Cover,front dis
12
09103-06285
БОЛТ
136 ₽/шт
13
TIRE, FRONT [F.NO.5SAAK46A3X102001~, P24]
13
TIRE, FRONT [MODEL K4/K5/K6/K7, P17, ->5110-38F21]
13
TIRE, FRONT [F.NO.5SAAK46A3X102001~, P17]
14
43130-24A00
Ниппель
468 ₽/шт
