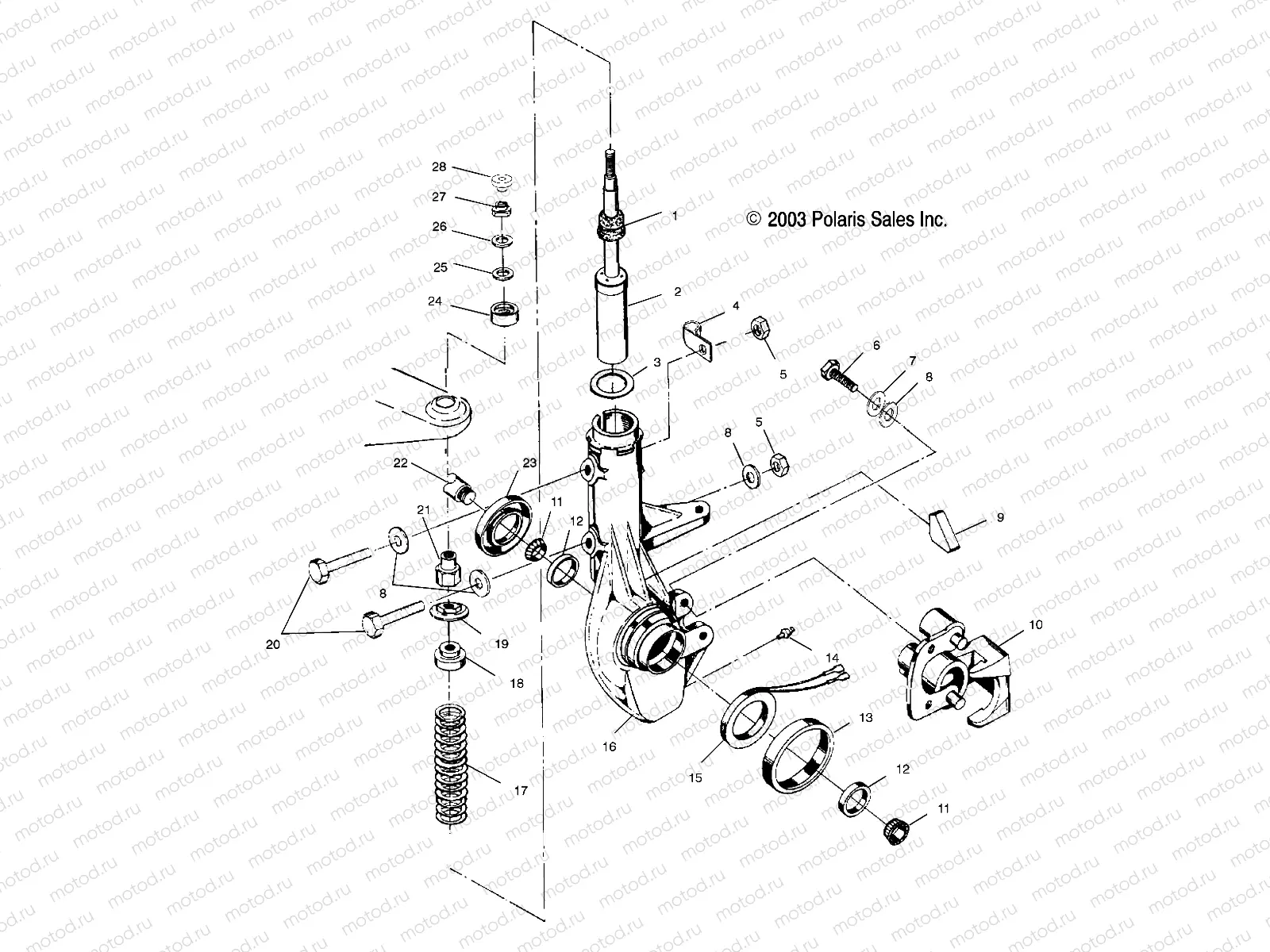

Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 XPLORER 4X4 (A02CG25CA) Polaris 2002 ATV FRONT STRUT - A02CG25CA (4954855485B006) | FRONT STRUT - A02CG25CA (4954855485B006)

FRONT STRUT - A02CG25CA (4954855485B006) | FRONT STRUT - A02CG25CA (4954855485B006)

FRONT STRUT - A02CG25CA (4954855485B006) | FRONT STRUT - A02CG25CA (4954855485B006)

Например: 5412665

1

5412665

BUMPER-MCU 17.8MM ID

2

7041762

STRUT-FRONT 18X30MM 184.7MM LT

3

5211115

Rondelle

4

7080367

CLAMP CABLE

5

7542324

Nut (SELF-LOCKING)

6

7512365

SCREW CAP

7

7552901

Rondelle (Lock)

8

7558402

WASHER FLAT

9

5810439

RETAINER,WIRE,STRUT CAST

11

3554509

BEARING TAPERED ROLLER

12

3554507

BRG TAPER ROLL CUP

13

5222193

SLEEVE STRUT HUB SEAL

14

7080306

FITTING LUBE.W/BALL CK.

15

2201313

HUB/COIL(KIT)

16

1820951

HUBSTRUT RH ASM.

16

1820950

HUBSTRUT LH ASM.

17

7041873-067

SPRING-COMP,55-105#/IN,BLK

18

5243364

RETAINER-SPRING

19

5432871

PIVOT BALL BOTTOM

20

7515339

Vis

21

5132062

SPACER-1/2-20

22

LR--

CALIPER, BRAKE, RH

23

3610028

SEAL HUB STRUT

24

5432872

PIVOT BALL TOP

25

5810291

SPACER RUBBER

26

7555749

Rondelle

27

7547104

NUT

28

7052028

Damper
