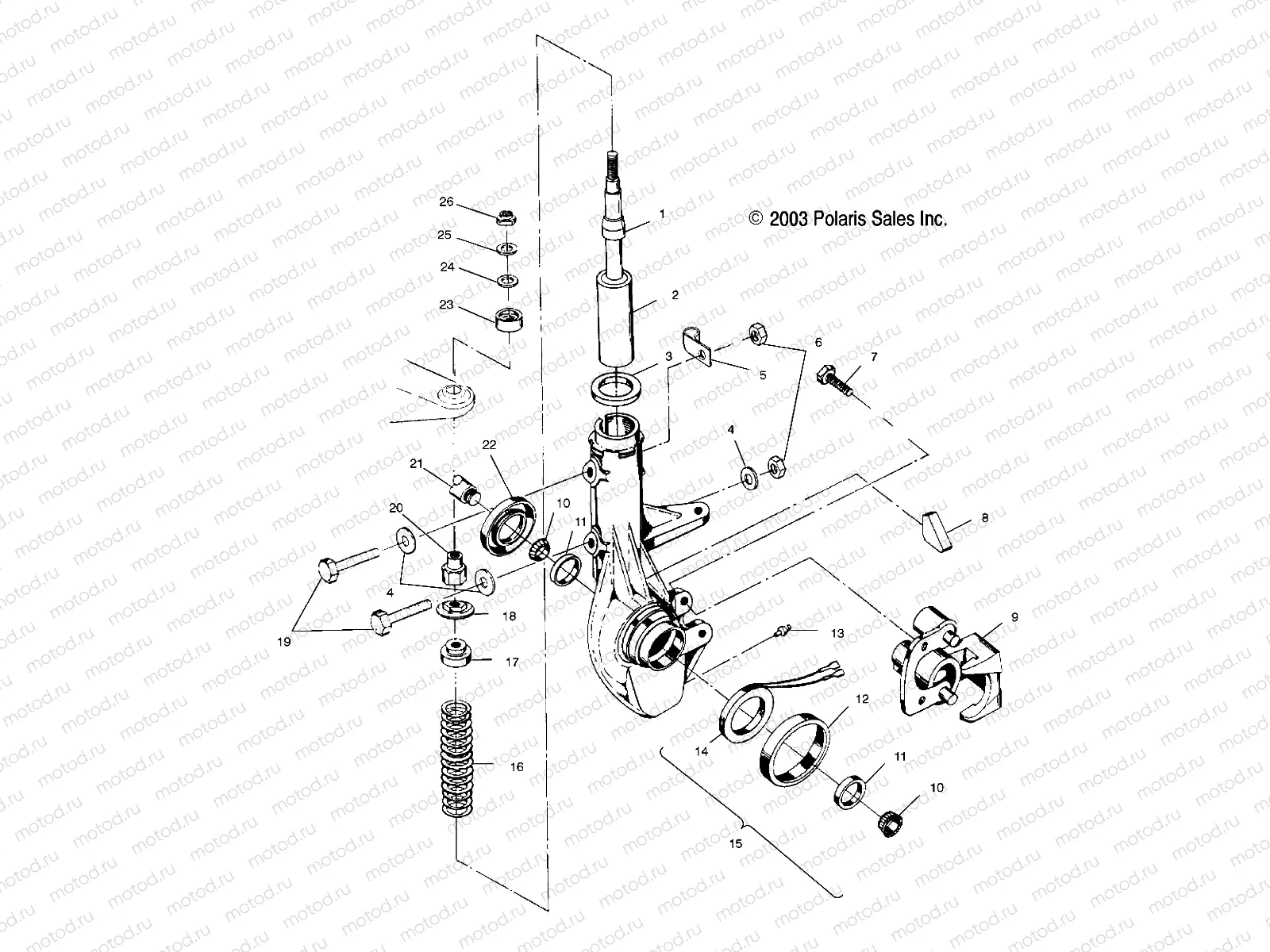

Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 MAGNUM 325 4X4 (A02CD32AB) Polaris 2002 ATV FRONT STRUT - A02CD32AA/AB/AC (4949304930B005) | FRONT STRUT - A02CD32AA/AB/AC (4949304930B005)

FRONT STRUT - A02CD32AA/AB/AC (4949304930B005) | FRONT STRUT - A02CD32AA/AB/AC (4949304930B005)

FRONT STRUT - A02CD32AA/AB/AC (4949304930B005) | FRONT STRUT - A02CD32AA/AB/AC (4949304930B005)

Например: 5412665

1

5412665

BUMPER-MCU 17.8MM ID

2

7041761

STRUT-FRONT 18X30MM 153.8MM ST

3

5211115

Rondelle

4

7558402

WASHER FLAT

5

7080573

CLAMP RUBBER-COATED .562

6

7542324

Nut (SELF-LOCKING)

7

7512365

SCREW CAP

8

5810439

RETAINER,WIRE,STRUT CAST

10

3554509

BEARING TAPERED ROLLER

11

3554507

BRG TAPER ROLL CUP

12

5222193

SLEEVE STRUT HUB SEAL

13

7080306

FITTING LUBE.W/BALL CK.

14

2201313

HUB/COIL(KIT)

15

1820951

HUBSTRUT RH ASM.

15

1820950

HUBSTRUT LH ASM.

16

7042312-067

SPRING-COMP 64-113# 11.6 BLK

17

5243364

RETAINER-SPRING

18

5432871

PIVOT BALL BOTTOM

19

7515339

Vis

20

5132062

SPACER-1/2-20

21

LR--

CALIPER, BRAKE, RH

22

3610028

SEAL HUB STRUT

23

5432872

PIVOT BALL TOP

24

5810291

SPACER RUBBER

25

7555749

Rondelle

26

7547104

NUT
