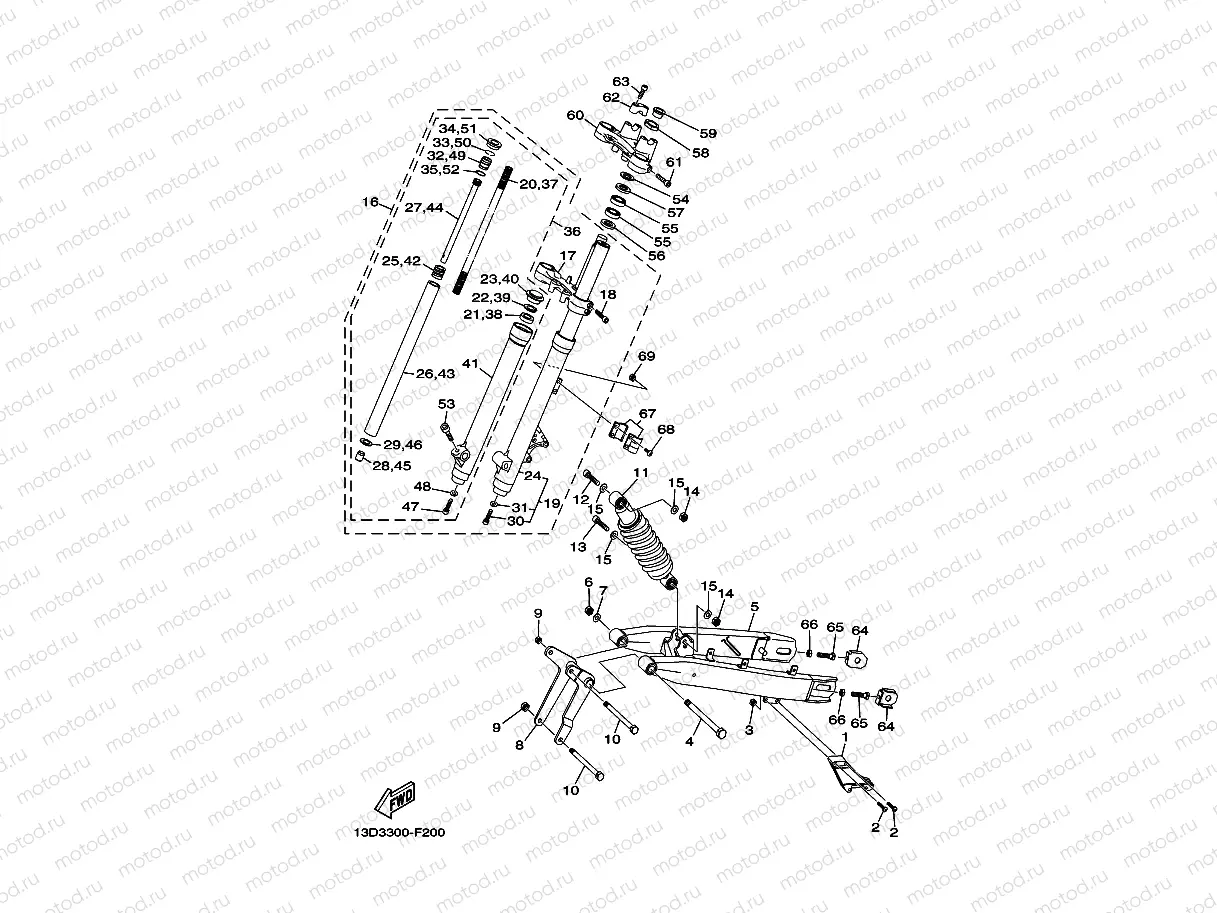

FRONT & REAR SUSPENSION

FRONT & REAR SUSPENSION
Например: 3D6-F2187-00
1
3D6-F2187-00
GUIDE, CHAIN
2
1D4-F2225-00
Vis
3
1D4-E4775-00
Nut
4
1D4-F2141-00
SHAFT, PIVOT
5
3D6-F2110-10
Rear arm
6
1D4-F2143-00
Nut
7
1D4-F2142-00
WASHER, SHAFT
8
3D6-F1400-00
ENGINE BRACKET COMP.
9
13D-F1293-00
Nut
10
13C-F1481-00
BOLT, ENGINE MOUNTING 1
11
13D-F2210-00
Amortisseur arrière
12
1D4-F2241-00
Vis
13
1D4-F2242-00
Vis
14
1D4-F2251-00
NUT 1
15
1D4-F2243-00
WASHER 1
16
13D-F3100-10
RONT FORK ASSY
17
3D6-F2403-00
UNDER BRACKET COMP
18
1D4-F3181-00
Vis
19
13D-F3102-10
RONT FORK ASSY (L.H)
20
1D4-F2441-00
SPRING, FRONT FORK
21
1D4-F2480-00
Joint d'huile de fourche
22
1D4-F3156-00
pc - CLIP, OIL SEAL
23
1D4-F3144-00
ork dust seal
24
13D-F3126-10
TUBE, OUTER (LEFT)
25
3D6-F3151-00
SPRING, REBOUND
26
3D6-F3124-00
TUBE, INNER 1
27
3D6-F3171-00
PISTON, FRONT FORK
28
3D6-F3173-00
SPINDLE, TAPER
29
1D4-F3159-00
WASHER, SPRING, LOWER
30
3D6-F3181-00
Vis
31
1D4-F3158-00
GASKET
32
3D6-F3448-00
Entretoise
33
1D4-F3155-00
RING, FELT
34
1D4-F319U-00
CAP
35
1D4-F3147-00
O-Ring
36
3D6-F3103-10
RONT FORK ASSY (R.H)
37
1D4-F2441-00
SPRING, FRONT FORK
38
1D4-F2480-00
Joint d'huile de fourche
39
1D4-F3156-00
pc - CLIP, OIL SEAL
40
1D4-F3144-00
ork dust seal
41
3D6-F3136-10
TUBE, OUTER (RIGHT)
42
3D6-F3151-00
SPRING, REBOUND
43
3D6-F3124-00
TUBE, INNER 1
44
3D6-F3171-00
PISTON, FRONT FORK
45
3D6-F3173-00
SPINDLE, TAPER
46
1D4-F3159-00
WASHER, SPRING, LOWER
47
3D6-F3181-00
Vis
48
1D4-F3158-00
GASKET
49
3D6-F3448-00
Entretoise
50
1D4-F3155-00
RING, FELT
51
1D4-F319U-00
CAP
52
1D4-F3147-00
O-Ring
53
3D6-F311H-00
ORK, BOLT
54
1D4-F3150-00
OUTER NUT COMP.
55
1D4-F339Y-00
Roulement
56
1D4-F3527-00
SEAL, DUST 1
57
1D4-F3528-00
SEAL, DUST 2
58
1D4-F3453-00
NUT, FITTING 1
59
1D4-F3437-00
COVER, CROWN
60
13D-F3435-00
CROWN, HANDLE
61
1D4-F3471-00
Vis
62
1D4-F3441-00
HOLDER, HANDLE UPPER
63
1D4-F3471-00
Vis
64
1D4-F5388-00
PULLER, CHAIN 1
65
1D4-F5379-00
BOLT, CHAIN PULLAR
66
1D4-F538E-00
NUT, ADJUSTING
67
3D6-F5875-00
HOLDER, BRAKE HOSE 1
68
13D-F4444-00
Vis
69
13D-F1635-00
NUT, REAR FENDER
