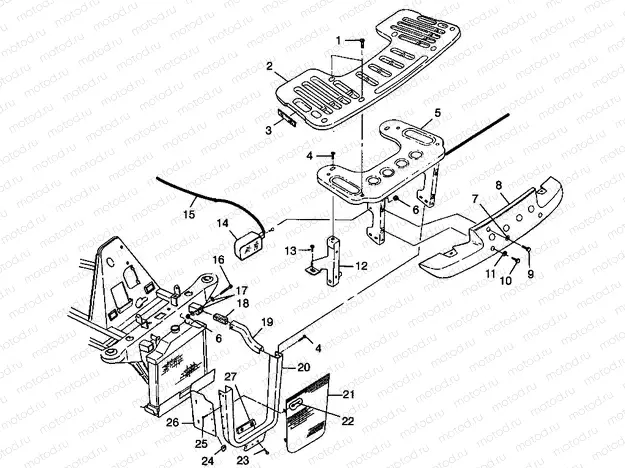

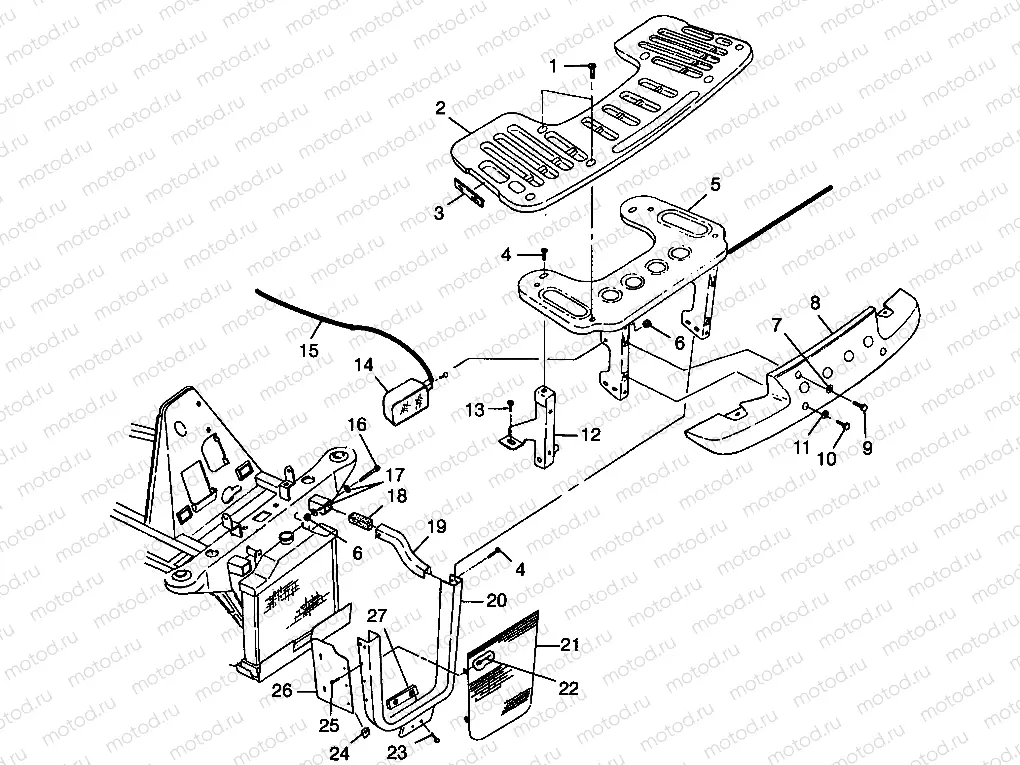

Главная Каталог товаров Polaris EPC 1998 Polaris ATV Polaris 1998 SPORTSMAN 500 (W98CH50AB) Polaris 1998 ATV FRONT RACK and BUMPER MOUNTING - W98CH50AB (4945714571a009) | FRONT RACK and BUMPER MOUNTING - W98CH50AB (4945714571a009)

FRONT RACK and BUMPER MOUNTING - W98CH50AB (4945714571a009) | FRONT RACK and BUMPER MOUNTING - W98CH50AB (4945714571a009)

FRONT RACK and BUMPER MOUNTING - W98CH50AB (4945714571a009) | FRONT RACK and BUMPER MOUNTING - W98CH50AB (4945714571a009)

Например: 7517685

1

7517685

Vis

2

2670180-070

RACK FRONT BLK

3

2670071

REFLECTOR AMBER

4

7515399

Vis

5

1014023-067

SUPPORT FRONT RACK BLK

6

7542324

Nut (SELF-LOCKING)

7

7558403

WASHER WROUGHT

8

5432155-070

BUMPER BLK

9

7515391

Vis

10

7515390

Vis

11

7555954

Rondelle

12

1013211-067

SUPPORT FRT. RACK RH BLK

12

1013210-067

SUPPORT FRT.RACK LH BLK

13

7512232

Vis

14

2431014

ASM. HEADLIGHT SIDE MOUNT LH

14

2431015

ASM. HEADLIGHT SIDE MOUNT RH

14

4030059

BULB H/L 27W.HOBBS

15

2460610

HARNESS H/L LO

16

7515384

Vis

17

7558402

WASHER FLAT

18

5810467

PLUG FRAME

19

5241399-067

EXTENSION RH.FRAME BLK.

19

5241398-067

EXTENSION,LH.FRAME,BLK.

20

1013772-067

WELD-BRUSH GUARD BLK

21

5240591-067

GRILL BRUSHGUARD BLK.

22

7621330

RIVET POP

23

7517208

Vis

24

7670094

Nut

25

7512097

Vis

26

5431815

SHIELD,RH RADIATOR

26

5431814

SHIELD,LH RADIATOR

27

5131312

SPACER,BRUSHGUARD
