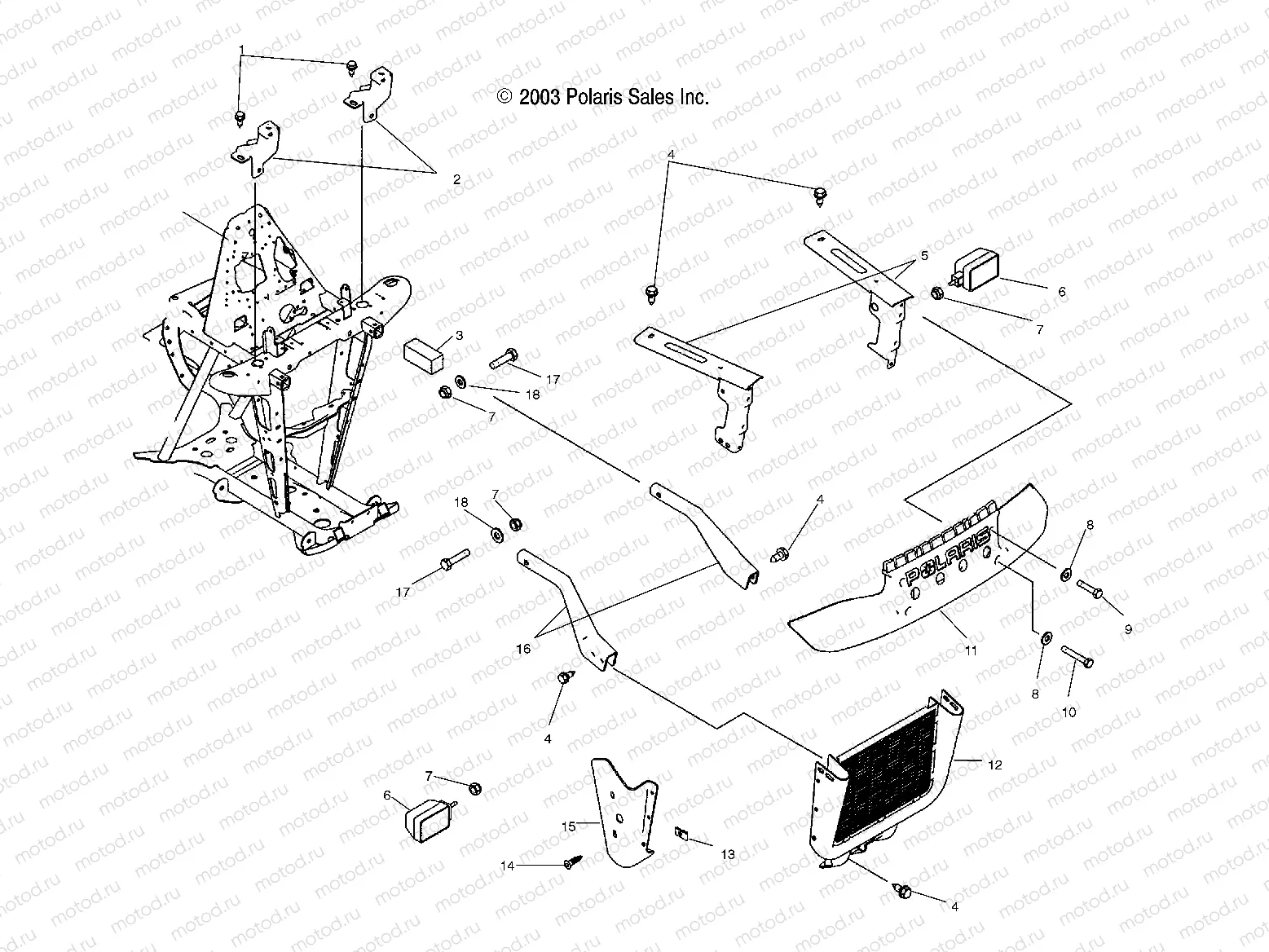

Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 ATP 330 4X4 (A04JD32AA) Polaris 2004 ATV FRONT RACK and BUMPER MOUNTING - A04JD32AA (4977487748A11) | FRONT RACK and BUMPER MOUNTING - A04JD32AA (4977487748A11)

FRONT RACK and BUMPER MOUNTING - A04JD32AA (4977487748A11) | FRONT RACK and BUMPER MOUNTING - A04JD32AA (4977487748A11)

FRONT RACK and BUMPER MOUNTING - A04JD32AA (4977487748A11) | FRONT RACK and BUMPER MOUNTING - A04JD32AA (4977487748A11)

Например: 7512232

1

7512232

Vis

2

1013746-067

WELD-SUPPORT RACK FRONT RH BLK

2

1013744-067

WELD-SUPPORT RACK FRONT LH BLK

3

5810467

PLUG FRAME

4

7515399

Vis

5

1014101-067

WELD-RACK MOUNT RH BLK

5

1014099-067

WELD-RACK MOUNT LH BLK

6

2431011

ASM-HEADLIGHT 30/30W SIDE MOUN

6

2431012

ASM-HEADLIGHT 30/30W SIDE MOUN

6

4030061

BULB H/L 30/30 W.

7

7542324

Nut (SELF-LOCKING)

8

7555954

Rondelle

9

7517977

BOLT-5/16-18X2.25 FLG TAP/R-Y

9

7515391

Vis

10

7515390

Vis

11

5432155-070

BUMPER BLK

12

1013772-067

WELD-BRUSH GUARD BLK

13

7670094

Nut

14

7512097

Vis

15

5433924

SHIELD-RADIATOR SIDE RH

15

5433923

SHIELD-RADIATOR SIDE LH

16

5244730-067

EXTENSION-FRAME RH BLK

16

5244729-067

EXTENSION-FRAME LH BLK

17

7512329

Vis

18

7558402

WASHER FLAT
