Главная Каталог товаров Polaris EPC 2002 Polaris PPS Polaris 2002 LUH 6X6 PPS (C02CL50AB) Polaris 2002 PPS FRONT HOUSING - C02CL50AB (4972367236B02) | FRONT HOUSING - C02CL50AB (4972367236B02)

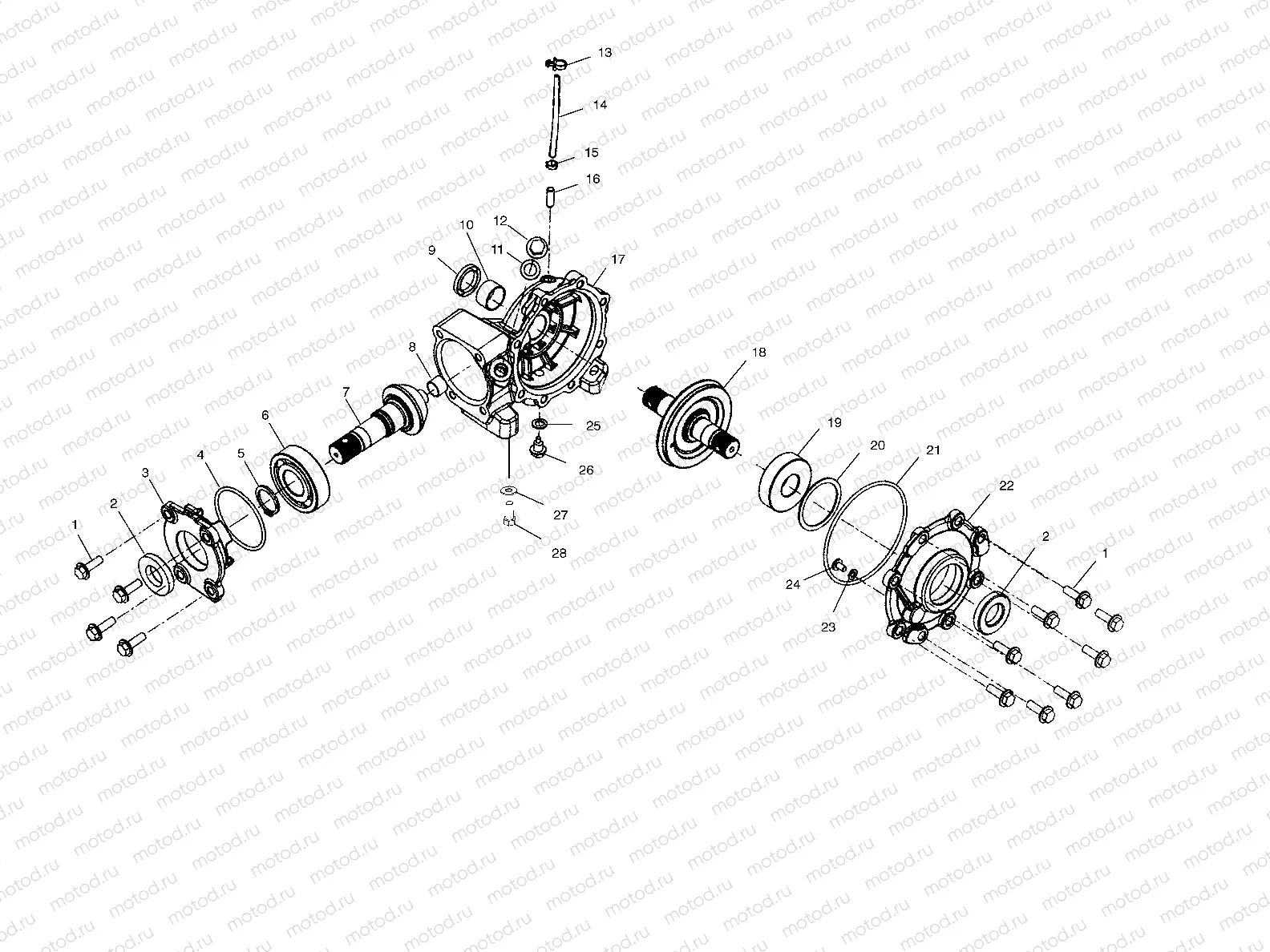

FRONT HOUSING - C02CL50AB (4972367236B02) | FRONT HOUSING - C02CL50AB (4972367236B02)

FRONT HOUSING - C02CL50AB (4972367236B02) | FRONT HOUSING - C02CL50AB (4972367236B02)

Например: 1341323

0

1341323

GEARCASE FRONT ASM.

1

3233252

Vis

2

3233788

SEAL-TRIPLE LIP

3

3233701

INPUT COVER-FRONT HOUSING

4

3233700

O-Ring

5

3233699

RING-RETAINING

6

3233589

BEARING BALL

7

3233726

PINION INPUT 14T

8

3233541

BUSHING GARLOCK

9

3233319

SEAL

10

3233697

BUSHINHG-GARLOCK

11

3233324

Rondelle

12

3233711

PLUG OIL FILL

13

7080756

CLIP SNAP-IN

14

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

15

7080307

CLAMP HOSE

16

3233524

TUBE VENT

17

3233696

GEARCASE

18

3233725

SHAFT OUTPUT 29T

19

3233020

Roulement

20

3233554

SHIM

21

3233693

O-Ring

22

3233724

COVER OUTPUT

23

3233583

SHIM .450 X .265

24

3233582

BUTTON THRUST

25

3233254

WASHER PLUG

26

3233777

PLUG-HEX FLANGE

27

7552603

Rondelle (Lock)

28

7512492

Vis
