Главная Каталог товаров HUSQVARNA EPC 2011 HUSQVARNA TC-TE-TXC 250-310 HUSQVARNA 2011 (VIN: ZKHA301A) FRONT FORK (TC-TXC)

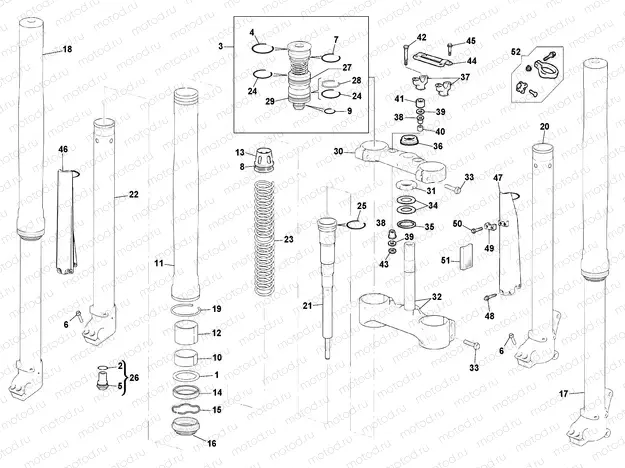

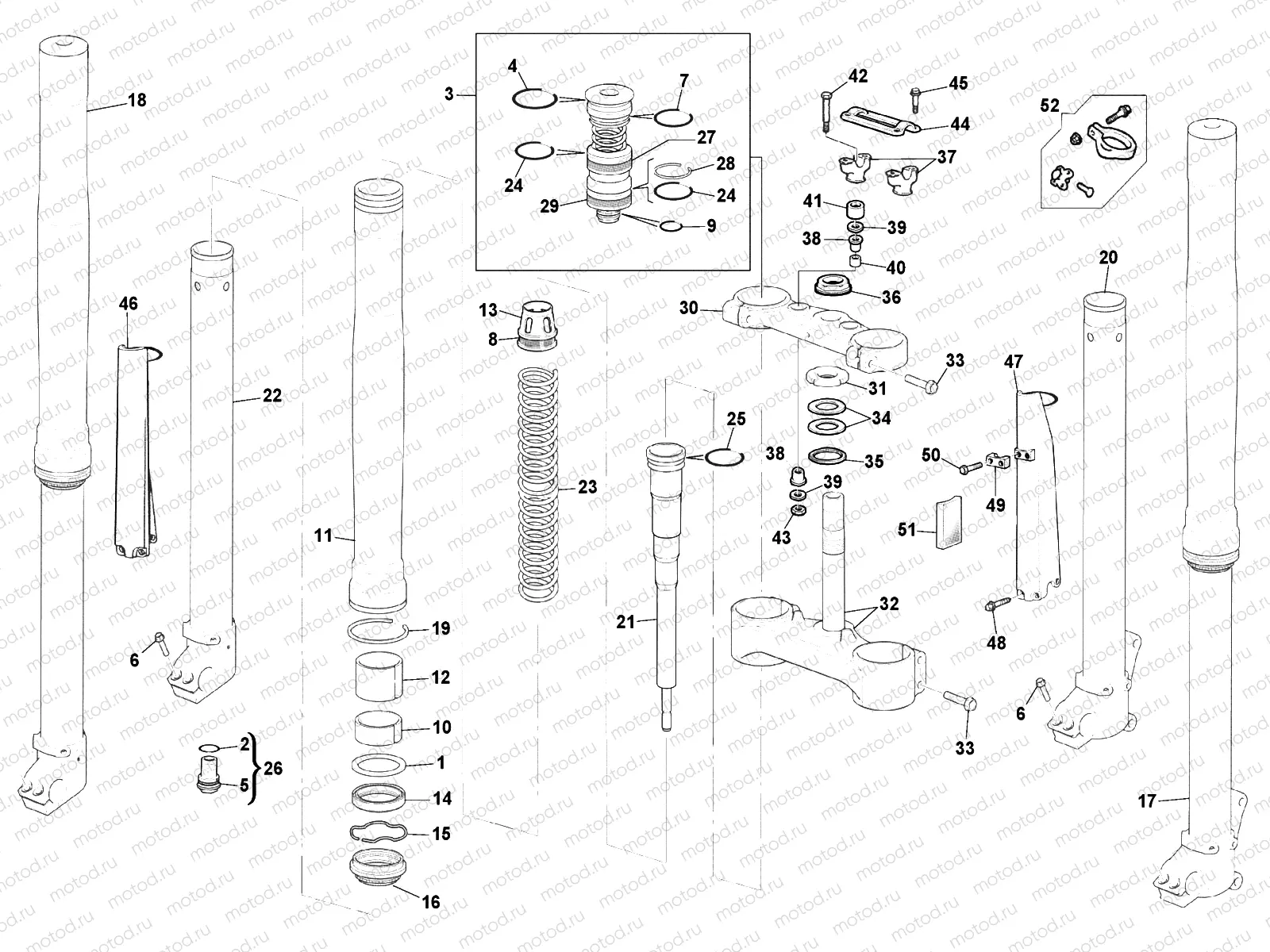

FRONT FORK (TC-TXC)

FRONT FORK (TC-TXC)
Например: 8000H2661
1
8000H2661
GASKET, OIL CAP
2
8000H2678
LOWER VALVE O-RING
3
8000H2666
VALVE ASSEMBLY
4
8000H2674
O-Ring
5
8000H2676
VALVE SUPPORT
6
8000H2671
Vis
7
8000H2677
O-Ring
8
8000H2675
BUSH
9
8000H2679
PISTON RING
10
8000H2660
BUSHING
11
8000H2656
PIPE ASSY
12
8000H2659
PISTON
13
8000H2668
COLLAR COMPLETE FOR SPRING
14
8000H2662
OIL SEAL
15
8000H2663
Rondelle
16
8000H2664
STRIPPER
17
8000H2735
FORK LEG ASSY, LEFT
18
8000H2736
FORK LEG ASSY, RIGHT
19
8000H2672
RING
20
8000H2657
FORK INNER TUBE LH
21
8000H2665
CYLINDER ASSY
22
8000H2658
RH ASSEMBLY
23
8000H2669
SPRING UPPER SEAT K= 4,4 N/MM
24
8000H2683
PISTON RING
25
8000H2673
CYLINDER O-RING
26
8000H2670
PLUG
27
8000H2680
PISTON UPPER BUSH
28
8000H2681
PISTON RING
29
8000H2682
BUSH
30
8000H1286
EAD STEERING STEM
31
8A0087717
Nut
32
8000H1354
STEERING STEAM ASSY
33
8E00B1959
Vis
34
800087745
Gasket
35
800087736
WASHER 40.5X29.5X2
36
8A0069315
NUT, STEERING STEM M26X1 CH30
37
8000H2355
LOWER CLAMP
38
8000H1385
Entretoise
39
800060234
Rondelle (28x22x10.5x2.5)
40
8000H1714
SPACER D12XD10X33
41
8A00A6683
Entretoise
42
60ND01222
Vis
43
Z00061314
Nut (Lock)
44
8000H3069
UPPER CLAMP
45
8000B1959
SCREW M8X30 MM
46
80A0A8482
GUARD FORK TUBE, RH
47
80A0A8481
GUARD FORK TUBE, LH
48
8000A8423
Vis
49
80A0A0633
PLATE
50
ZA0084658
SCREW M5X0,8-CH8-L16
51
800074842
REFLEX REFLECTOR, SIDE
52
8000B1530
KIT STARTING HOOK
