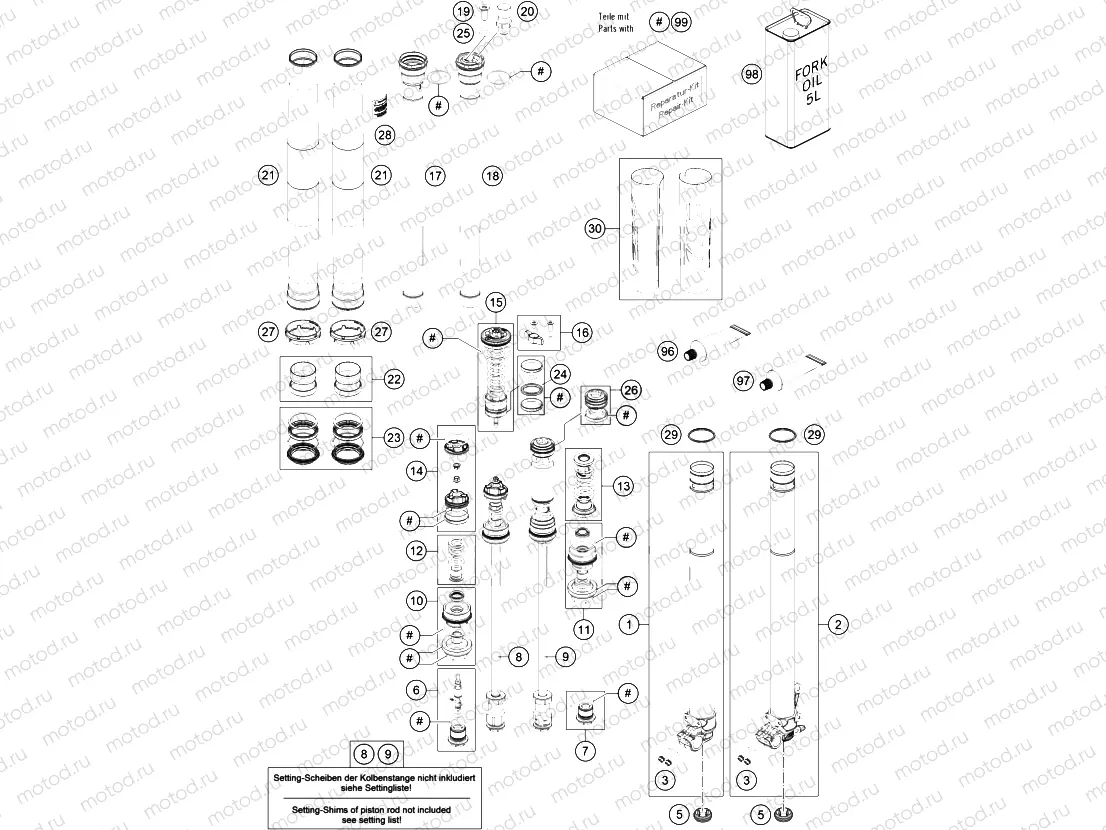

FRONT FORK DISASSEMBLED|Frame|01

FRONT FORK DISASSEMBLED|Frame|01
1
48601408S2
FORK LEG R/S . TUBE CPL.
2
48601407S2
FORK LEG L/S . TUBE CPL.
3
0025080256
Vis
5
48600692
Rubber cap 26,4x11
6
48601484S
ADJUSTING CAP M20 CPL.
7
48601533S
PLUG M20 CPL.
8
48601574S4
Pistonrod D12 M9x1 L385 cpl.
9
48601501S1
Piston Rod left kpl. M12x1
10
48601462S1
CREW SLEEVE OIL CPL.
11
48602138S2
crew sleeve M35,5x0,8 cpl.
12
48600578S
PRING REBOUND . SPRING GUIDE
13
48601820S
pring rebound spring guide
14
RP10024
epair kit piston air fork
15
48602049S1
Basevalve cpl.
16
RP10025
Adjuster kit screw cap compres
17
48602048S1
screw cap M51x1,5 cpl.
18
48602047S1
screw cap M51x1,5 cpl.
19
00700007
Vis
20
48601494S
VALVE M8X1 INCL. SCREW CAP
21
48602096
fork outer tube 49.13x577 dt54 db60
22
R14047T
Guide bushing set fork 48mm (48 mm)
23
RP10048T
Front fork revision kit
24
04100002
X-RING 26,57X3,53 FKM 80SH.
25
50180222
O-ring 4x1,5 NBR70
26
48601628S
Piston 34x35,4 mainpiston Freudenb cpl.
27
48601948
Fork protection ring 60,1mm
28
52000158
Sticker warning 40x40
29
48602007
Stroke indicator 48mm red
30
52000235SET
ticker set XACT 5 AER CC 182.5x238
96
T14034
Fuchs grease IPR (250g)
97
00062010053
spezial grease AER Fork 50g
98
48601166S1
FORK OIL SAE4 5L
99
R14060
SEALING KIT CPL.

Узлы для TC 250 (F2301T1) [EU] HUSQVARNA 2020 Offroad
