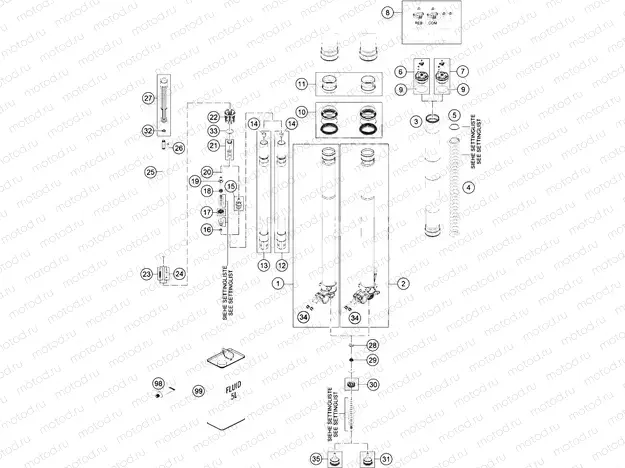

FRONT FORK DISASSEMBLED|Frame|01

FRONT FORK DISASSEMBLED|Frame|01
Например: 48601933S1
1
48601933S1
Axleclamp OC right cpl. with tube
2
48601932S1
Axleclamp OC left cpl. with tube
3
48602096
fork outer tube 49.13x577 dt54 db60
4
91410099S
PRING 3,8N/MM SET D=4,9MM
4
91410100S
PRING 4,0N/MM SET D=4,9MM
4
91410101S
PRING 4,2N/MM SET D=4,9MM
4
91410102S
PRING 4,4N/MM SET D=4,9MM
4
91410103S
FORK SPRING L= 470 4,6 N/MM SET
4
91410104S
PRING 4,8N/MM SET D=4,9MM
5
48600456
Washer 35x43x2,5 plastic
5
48600457
Preload bush 35x43x3,5
5
48600458
Washer 35x43x1,5 plastic
6
48601680S2
crew cap M51x1,5 PA right cpl.
7
48601680S3
crew cap M51x1,5 PA left cpl.
8
R14033
SCREW CAP SMALL PART KIT
9
48600048
O-ring 46x2 NBR70 siliconized yellow
10
RP10048T
Front fork revision kit
11
R14047T
Guide bushing set fork 48mm (48 mm)
12
48600763S5
Tube, including screw sleeve with hole
13
48600763S6
Tube with screwsleeve
14
48600430
Guide bushing 12x14x10
15
48601843S3
Tap compression cpl.
16
40540486
Nut M6x0,5 h6,5 WAF10 rebound
17
48601817S
Piston 6x23x13 cpl.
18
48600382
Spring (11,4) 0,4-8 valve
19
48600576
Tap 6x46 rebound
20
48600299
O-ring 6x1,2 NBR70
21
48600578S
PRING REBOUND . SPRING GUIDE
22
48601298
Spring retainer 27,08x43x45
23
48600277S
ADJUSTING NEEDLE CPL.
24
48601558S
COMPRESSION ADJ. NEEDLE CPL.
25
48600568
Piston rod 12x554
26
48601786
ADJUSTING PIPE
27
48601556S
HYDR. STOP L200 Ø31,9 CPL.07
28
48600163
Nut valve M6x0,5 h6,5 WAF17
29
48600202
Spring (8,5) l6,5 valve
30
48601934S
Piston 6x27,3x9 compression cpl.
31
48601553S
CREW CAP OC SPLIT CPL.
32
04500003
O-RING 11X2,5 NBR 70 SH PTFE
33
48601702
Shim 27,5x33x0,3
34
0025080256
Vis
35
48601980S
crew cap M29,3x1
98
T14034
Fuchs grease IPR (250g)
99
48601166S1
FORK OIL SAE4 5L
