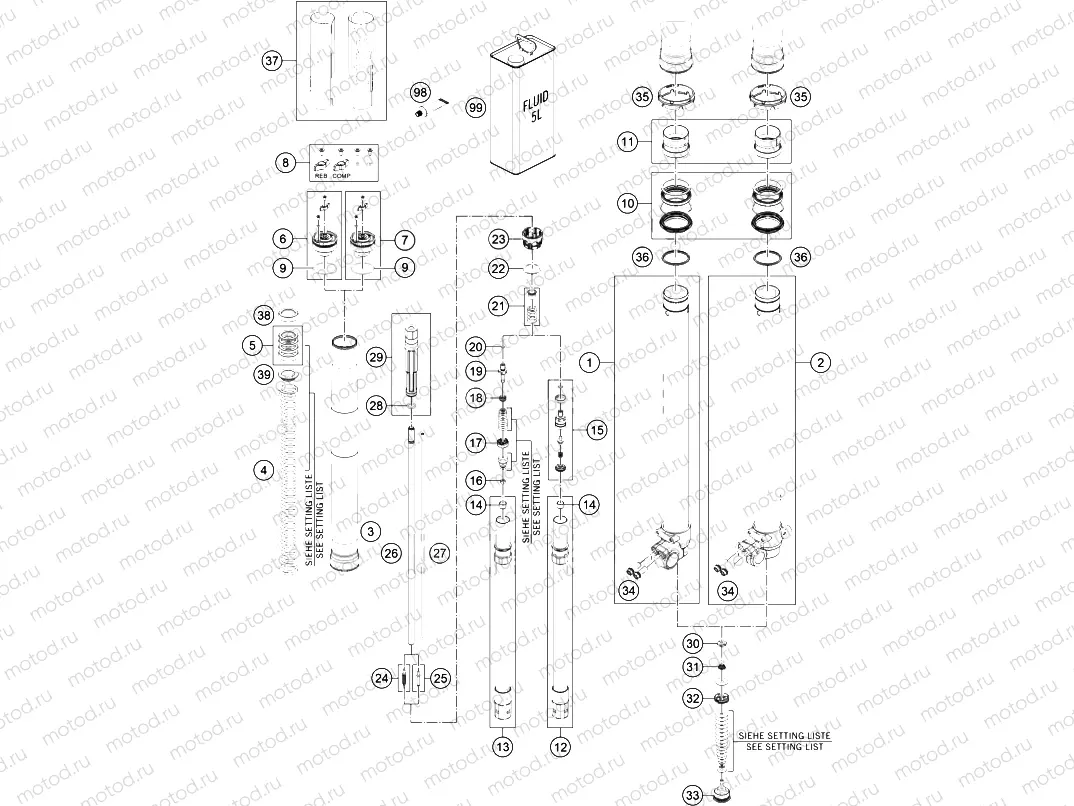

FRONT FORK DISASSEMBLED

FRONT FORK DISASSEMBLED
Например: 43570810S1
1
43570810S1
Axle clamp right + tube cpl.
2
43570809S1
Axle clamp left + tube cpl.
3
43570935
Fork outer tube 44x510 dt49 db 53 natur
4
95010050S
PRING 4,6 N/MM SET
4
95010054S
PRING 4,8 N/MM SET
4
95010087
Spring l=415mm 5,0 N/mm
5
R14054
EP. KIT SPACER
6
43570928S
crew cap M46x1,5 cpl.
7
43570951S
crew cap M46x1,5 cpl.
8
RP10021T
Adjuster kit screw cap
9
43570023
O-ring 41x2 NBR70 siliconized yellow
10
R513
GASKET SET
11
R14042
GUIDE BUSHING SET
12
48600870S8
Cartridge tube 23x330 cpl.
13
48600870S9
Cartridge tube 23x330 cpl.
14
48600430
Guide bushing 12x14x10
15
48601843S
Tap compression cpl.
16
40540486
Nut M6x0,5 h6,5 WAF10 rebound
17
48602002S
Midvalve piston assembly d23
18
35480377
Spring (11,7) 1,5-8 valve
19
48600576
Tap 6x46 rebound
20
48600299
O-ring 6x1,2 NBR70
21
48600578S
PRING REBOUND . SPRING GUIDE
22
48601702
Shim 27,5x33x0,3
23
43570808
Spring retainer 27,3x59,6x26,5
24
48600277S
ADJUSTING NEEDLE CPL.
25
48601558S
COMPRESSION ADJ. NEEDLE CPL.
26
48601822
Piston rod 12x483
27
43570941
Adjustment tube 6x453,6
28
04500003
O-RING 11X2,5 NBR 70 SH PTFE
29
43570860S
top 12,4x28,6x167 cpl.
30
48600163
Nut valve M6x0,5 h6,5 WAF17
31
48600202
Spring (8,5) l6,5 valve
32
48601934S
Piston 6x27,3x9 compression cpl.
33
48601553S
CREW CAP OC SPLIT CPL.
34
0025080206
Vis
35
43570915
Fork protection ring 55,1mm
36
43570926
Stroke indicator d43 red
37
52000232SET
ticker set XPLOR OC 214x161
38
43570135
Preload bush 26x38x10
39
43570869
Spring retainer 26,2x40,5x2
98
T14034
Fuchs grease IPR (250g)
99
48601166S1
FORK OIL SAE4 5L
