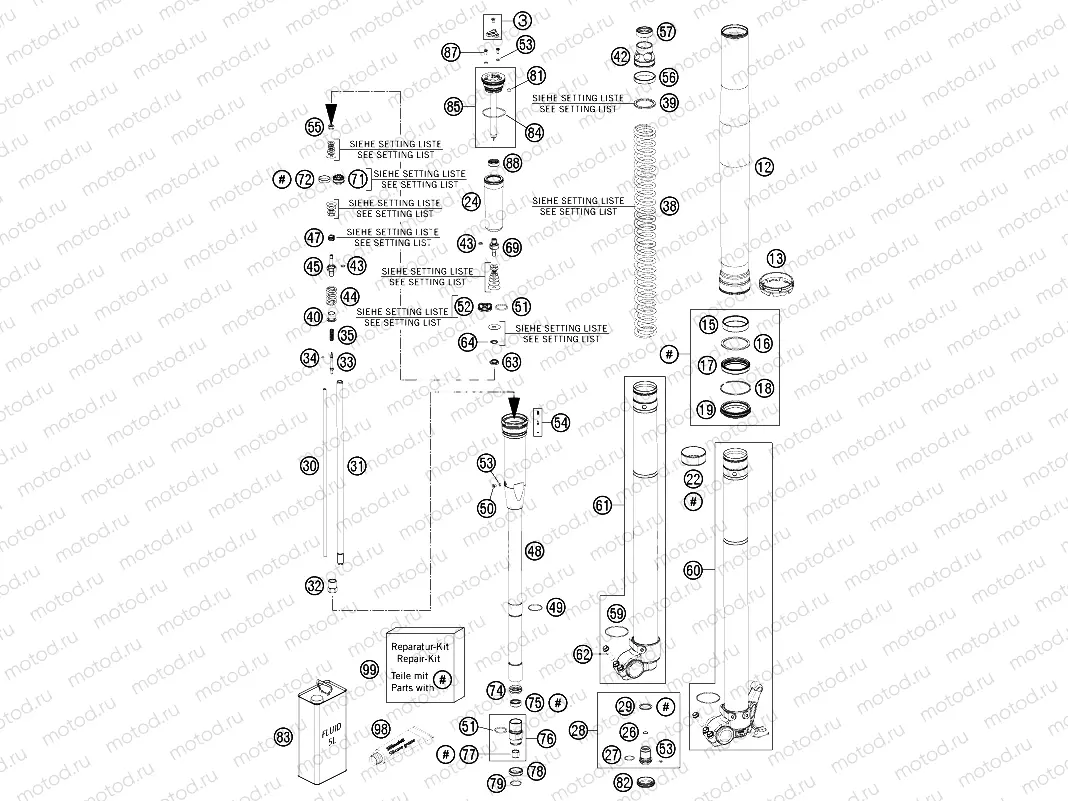

FRONT FORK DISASSEMBLED

Например: 48600811S

48600811S

Adjuster compression cpl.

48600736

Fork outer tube 49,13x577 dt54 db60 natu

48600698

Fork protection ring 62,1mm

48601009

Guide bushing 48x52x12

48600013

Supportwasher 50x57,6x1,5

S604800001000C1

Oil Seal Ring 48X57,8X9,5 03

1 623 ₽/шт

48600070

Rondelle (Lock)

S604800000000C1

Fork dust seal

48601008

Guide bushing 47x49x20

48600281

Membrane 11,2x37x112

48600301

O-ring 9,5x1,5 NBR70 yellow

46810811

O-ring 17x2 70 Sh NBR black

48600280S

CREW BUSH M20X1 L=33 CPL.

48600275

Copper disc 20,5x26x1

48600269

Adjustment tube 6x371

48600464

Piston rod 12x405

48600459

Lock nut M12x1 h23 WAF17

48600887

Needle 4,5x43,6 rebound

48600298

O-ring 2x1,5 NBR70

48600444

Spring (5,4) 4-23 rebound

91410010S

PRING D43.2 L485 5.2N/MM

91410027S

PRING 4,4 N/MM SET D=5,1MM

91410028S

PRING 4,6 N/MM SET D=5,1MM

91410029S

POLISHED SPRING 4,8 N/MM

91410030S

PRING 5,0 N/MM

91410059S

PRING 4,0 N/MM SET

91410060S

PRING 4,2 N/MM SET D=5,0MM

48600456

Washer 35x43x2,5 plastic

48600457

Preload bush 35x43x3,5

48600458

Washer 35x43x1,5 plastic

48600525

Spring retainer 12,3x19x1,25 rebound

48600520

Spring support ring 27,08x42x41

48600299

O-ring 6x1,2 NBR70

48600578

Spring (13,9) 37-32 rebound

48600576

Tap 6x46 rebound

48600382

Spring (11,4) 0,4-8 valve

48600519E3

Membrane holder WP

48600512

Rondelle (Lock)

48600542

HS countersunk head screw M4x6

46811499

O-ring 21x2 NBR70

48600047

Piston 6x27,8x9 compression

50180222

O-ring 4x1,5 NBR70

48600977S

PIN KIT

40540486

Nut M6x0,5 h6,5 WAF10 rebound

48600744

Guiding ring 39x44x8

48600577

Spring guide ring 27,08x32x9,5

48600113

Washer 32x42x2,5 plastic

48600863SA

XLE CLAMP LEFT + TUBE CPL.

48600864SA

XLE CLAMP RIGHT + TUBE CPL.

0025080256

Vis

48601169

Nut valve M6x0,5 h6,5 WAF17

48600202

Spring (8,5) l6,5 valve

48600509

Tap 6x38 compression

48600575

Piston 6,07x22,7x13

48600455

Piston ring 21x23x5

48601056

Spring retainer 13,5x21,9x2,65

48600829

Seal ring Freudenberg 12mm 85Sh violett

48601055S

CREW SLEEVE M24,5X1 CPL.

48600430

Guide bushing 12x14x10

48600709

Check valve locking R4

48600446

Rondelle (Lock)

15080017

Silicon plug 60Sh

48600692

Rubber cap 26,4x11

48601166S1

FORK OIL SAE4 5L

40140024

O-ring 43x2 NBR70 siliconized yellow

48600516E1

SCREW CAP L=125

48600526

Cross flat head screw M4x10

48600514

Clamping ring bladder 11,31x22x7,5

T14034

Fuchs grease IPR (250g)

RP10046T

EPAIR KIT SEALS MXMA CC2011
