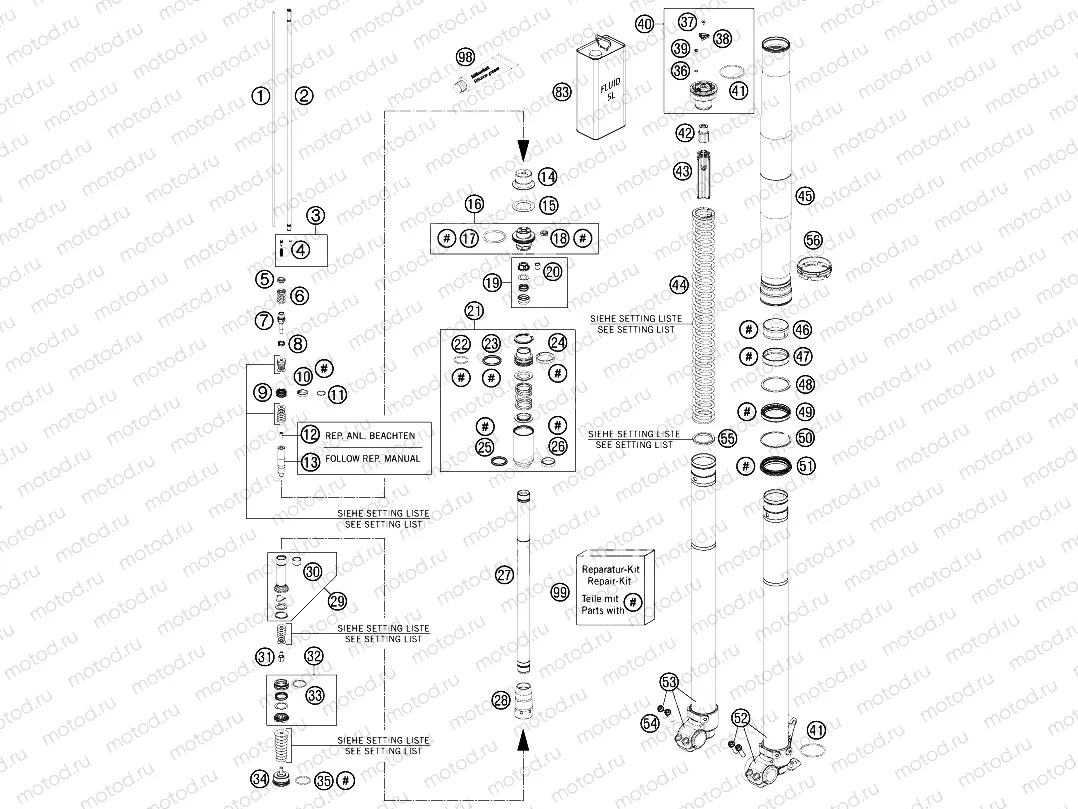

FRONT FORK DISASSEMBLED

FRONT FORK DISASSEMBLED
Например: 48600996
1
48600996
Adjustment tube 3x486
2
48601054
Piston rod 8x499
3
48600998S
Needle 5x10 cpl.
4
46811265
O-ring 2,2x1,6 Viton75 green
5
48601048
GUIDE SHIM REBOUND SPRING
6
48601049
Spring (11) 38-25 rebound
7
48600986
Tap 6x45 rebound
8
48600382
Spring (11,4) 0,4-8 valve
9
48600985E
PISTON REBOUND D20
10
48601171
Pistonring 18x20x4,9
11
48601128
O-ring 15x1 NBR70 Adcoat71
12
48601033
Pusher DO5
13
48601123
Needle 15x59,5 red
13
48600999
Needle 14x59,9
14
48601061
Spring retainer 8,3x44x1,5
15
48601184
Shim 29x44x0,3
16
48601022S
crew sleeve M23,5 cpl.
17
48601130
O-ring 40x3 NBR70 Adcoat 71
18
48600954
Seal ring Freudenberg 8mm 86Sh black
19
48601025S1
Check valve d21mm cpl.
20
48600953
Guide bushing 8x10x10
21
48601021S
Reservoir 36x74,5 cpl.
22
48601127
O-RING 24x2
23
48601111
X-ring 29,74x3,53 NBR70 Adcoat 71
24
48601124
Pistonring 32x36x5
25
48601110
X-ring 24,99x3,53 NBR70 Adcoat 71
26
48601109
Guide bushing 24x27x6
27
48601031
Cartridge-tube 20x403
28
48601019
Screw sleeve M30x1/M24x0,75
29
R14034
HYDROSTOP KIT
30
48601180
BUSHING
31
48601083
Adapter M6x0,5xM6x0,5x19
32
48600984S
Piston 6x28,8x13 compression cpl.
33
48601133
O-ring 24x1,5 NBR70 Adcoat71
34
48601247
SCREW CAP M30
35
48601132
O-ring 26x2 NBR70 Adcoat 71
36
50180222
O-ring 4x1,5 NBR70
37
48600527
HS countersunk head screw M4x16 DIN 7991
38
48601117S
ADJUSTING KNOB + SCREW
38
48601118S
ADJUSTER REB. RED CPL.
39
48600481
Cross countersunk head screw M4x8
40
48601116S
CREW CAP M51X1,5 COMP. KPL
40
48601050S
CREW CAP M51X1,5 REB. KPL.
41
48600048
O-ring 46x2 NBR70 siliconized yellow
42
48601034
Lock nut M8 h33 WAF19
43
48601035
Spring guide 8,2x32,5x102
44
91410093S
PRING D43,8 L465 5,0N/MM SET
44
91410082S
PRING D43,8 L465 3,8N/MM SET
44
91410083S
PRING D43,8 L465 4,0N/MM SET
44
91410084S
PRING D43,8 L465 4,2N/MM SET
44
91410085S
PRING D43,8 L465 4,4N/MM SET
44
91410086S
PRING D43,8 L465 4,6N/MM SET
44
91410092S
PRING D43,8 L465 4,8N/MM SET
44
91410094S
PRING D43,8 L465 5,2N/MM SET
45
48600736
Fork outer tube 49,13x577 dt54 db60 natu
46
48601008
Guide bushing 47x49x20
47
48601009
Guide bushing 48x52x12
48
48600013
Supportwasher 50x57,6x1,5
49
S604800001000C1
Oil Seal Ring 48X57,8X9,5 03
1 623 ₽/шт
50
48600070
Rondelle (Lock)
51
S604800000000C1
Fork dust seal
52
48601028S1
AXLE CLAMP L/S WITH INNER TUBE
53
48601029S1
AXLE CLAMP R/S WITH INNER TUBE
54
0025080256
Vis
55
48600458
Washer 35x43x1,5 plastic
55
48600456
Washer 35x43x2,5 plastic
55
48600457
Preload bush 35x43x3,5
56
48600698
Fork protection ring 62,1mm
83
48601166S1
FORK OIL SAE4 5L
98
T14034
Fuchs grease IPR (250g)
99
RP10047T
EPAIR - KIT
