Главная Каталог товаров KTM EPC 2013 KTM Offroad KTM 2013 Cross Country KTM 2013 Offroad 250 XCF-W (F8175M3) [US] KTM FRONT FORK DISASSEMBLED

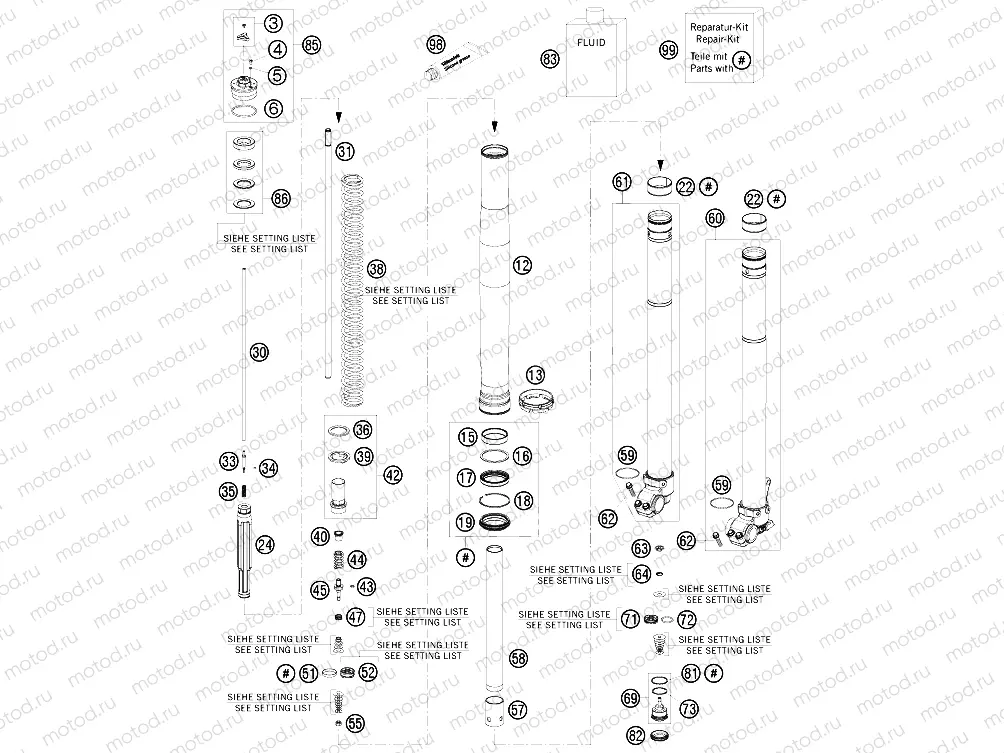

FRONT FORK DISASSEMBLED

FRONT FORK DISASSEMBLED
Например: 48600812ST
3
48600812ST
ADJUSTING KNOB + SCREW
4
48600481
Cross countersunk head screw M4x8
5
48600046
O-ring 3x1,5 NBR70
6
46810340
O-ring 45x2 NBR70 siliconized
12
48600736
Fork outer tube 49,13x577 dt54 db60 natu
13
48600698
Fork protection ring 62,1mm
15
48601009
Guide bushing 48x52x12
16
48600013
Supportwasher 50x57,6x1,5
17
S604800001000C1
Oil Seal Ring 48X57,8X9,5 03
1 623 ₽/шт
18
48600070
Rondelle (Lock)
19
S604800000000C1
Fork dust seal
22
48601008
Guide bushing 47x49x20
24
48600557S
top 12,4x31,9x200 cpl.
30
48600559
Adjustment tube 6x520
31
48600568
Piston rod 12x554
33
48600277
Needle 4,5x43,6
34
48600298
O-ring 2x1,5 NBR70
35
48600444
Spring (5,4) 4-23 rebound
36
48600113
Washer 32x42x2,5 plastic
38
91410012S
PRING 3,8N/MM SET D=4,9MM
38
91410013S
PRING 4,0N/MM SET D=5,0MM
38
91410014S
PRING 4,2N/MM SET D=5,0MM
38
91410015S
PRING 4,4N/MM SET D=5,1MM
38
91410016S
PRING 4,6N/MM SET
39
48600021
Spring retainer 33,5x43x3
40
48600525
Spring retainer 12,3x19x1,25 rebound
42
48600830S
CREW SLEEVE M27X0,8
43
48600299
O-ring 6x1,2 NBR70
44
48600511
Spring (13,9) 17-32 rebound
45
48600576
Tap 6x46 rebound
47
48600382
Spring (11,4) 0,4-8 valve
51
48600455
Piston ring 21x23x5
52
48600575
Piston 6,07x22,7x13
55
40540486
Nut M6x0,5 h6,5 WAF10 rebound
57
48600764
Adapter 23x28x70
58
48600763
Tube 23x350
59
48600048
O-ring 46x2 NBR70 siliconized yellow
60
48600860SA2
XLE CLAMP L/S + TUBE CPL.
61
48600861S1
AXLE CLAMP R/S + TUBE CPL. 09
62
0025080256
Vis
63
48600163
Nut valve M6x0,5 h6,5 WAF17
64
48600202
Spring (8,5) l6,5 valve
69
48600586S3
Compression, cmpl.
71
48600047
Piston 6x27,8x9 compression
72
46811499
O-ring 21x2 NBR70
73
35480320
O-Ring (24x2)
81
48600004
Copper disc 29,5x33,5x1
82
48600141
Rubber cap 35x10 NBR80
83
48601166S1
FORK OIL SAE4 5L
85
48600431S2
PRE-LOAD ADJ. M51X1,5 09
86
48600038
Preload bush 26,5x42x10
86
48600037
Preload bush 26,5x42x5
86
48600036
Preload bush 42x26,5x2,5
86
48600053
Preload bush 26,5x42x1,5
98
T14034
Fuchs grease IPR (250g)
99
RP10046T
EPAIR KIT SEALS MXMA CC2011
