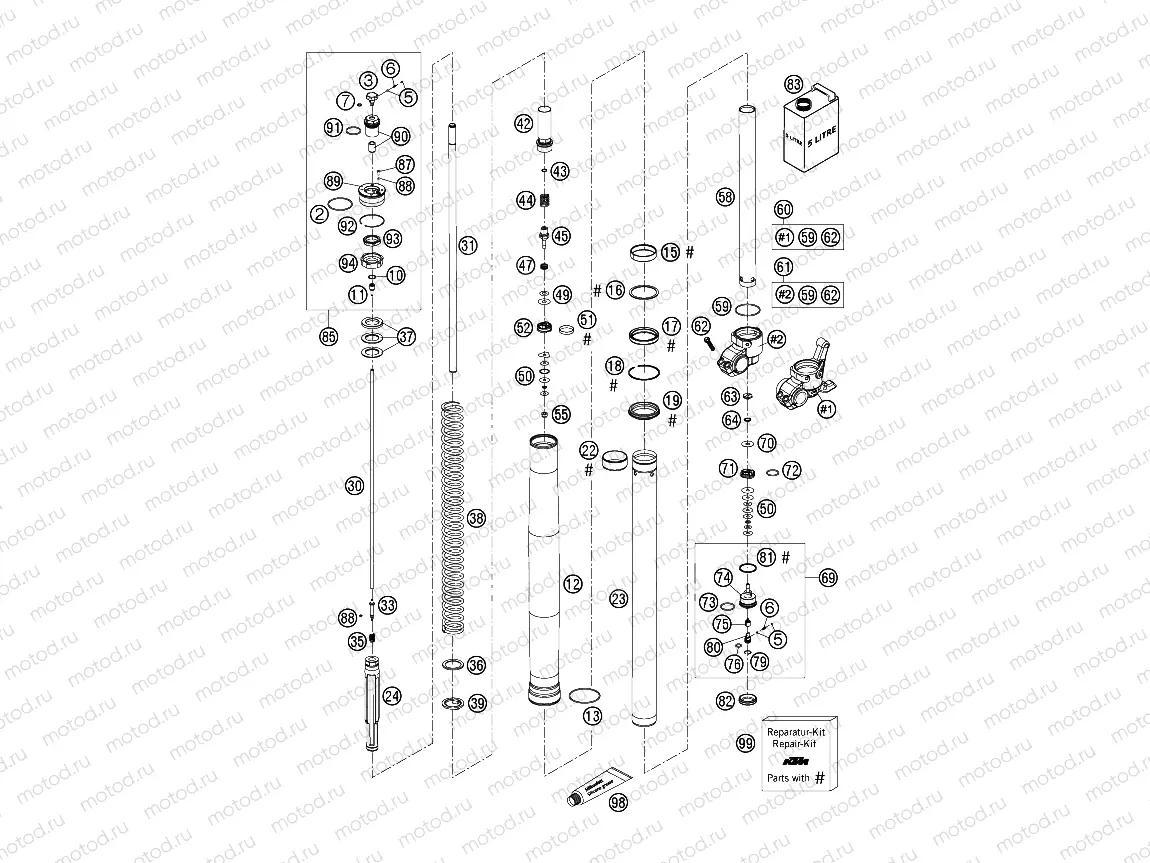

FRONT FORK DISASSEMBLED

FRONT FORK DISASSEMBLED
Например: 46810340
2
46810340
O-ring 45x2 NBR70 siliconized
3
48600018
Adjuster rebound
5
40540603
Steel ball d3
6
48600028
Spring (1,7) l7,9
7
48600044
O-ring 6x1,5 NBR70
10
48600043
O-ring 12x1,5 NBR70
11
48600019
Tube tap d4x25
12
48600693
OUTER TUBE L577 D54/60MM 2L BL
13
48600016
Round-wire snap ring 48x2
15
48601009
Guide bushing 48x52x12
16
48600013
Supportwasher 50x57,6x1,5
17
S604800001000C1
Oil Seal Ring 48X57,8X9,5 03
1 623 ₽/шт
18
48600070
Rondelle (Lock)
19
S604800000000C1
Fork dust seal
22
48601008
Guide bushing 47x49x20
23
48601052
INNER TUBE D=48 L=595
24
48600380S1
top 14,4x32,1x200 cpl.
30
48600092
ADJUSTMENT TUBE L=517MM
31
48600409
PISTON ROD D=14 L=551 M11X1
33
48600189
Needle 6x42,6 rebound
35
48600033
Spring (7,2) 4-23 needle
36
48600113
Washer 32x42x2,5 plastic
37
48600036
Preload bush 42x26,5x2,5
37
48600037
Preload bush 26,5x42x5
37
48600053
Preload bush 26,5x42x1,5
38
91410011S
PRING 3,6N/MM SET
38
91410012S
PRING 3,8N/MM SET D=4,9MM
38
91410013S
PRING 4,0N/MM SET D=5,0MM
38
91410014S
PRING 4,2N/MM SET D=5,0MM
38
91410015S
PRING 4,4N/MM SET D=5,1MM
38
91410016S
PRING 4,6N/MM SET
38
91410017S
PRING 4,8N/MM SET
39
48600021
Spring retainer 33,5x43x3
42
48600383S
CREW SLEEVE M29,3X1 L=90 CPL.
43
48600239
O-ring 8x1,25 NBR70 siliconized
44
48600403
Spring (15) 12-34,5 rebound
45
48600203
Tap 6x45 rebound
47
48600382
Spring (11,4) 0,4-8 valve
49
48600062
CHECK VALVE 8X24X0,1
49
43570120
Shim 8x18x0,10
49
48600215
Shim 8x20x0,10
49
48600216
Shim 8x22x0,10
49
48600218
Shim 8X11X0,40
49
48600357
Shim 8x11x0,10
50
48600063
Shim 6x24x0,10
50
48600064
Shim 6x22x0,10
50
48600065
Shim 6x20x0,10
50
48600116
Shim 6x24x0,10 delta
50
40540400
Shim 6x12x0,10
50
40540401
Shim 6x14x0,10
50
40540402
Shim 6x16x0,10
50
40540403
Shim 6x18x0,10
50
40540414
Shim 6x16x0,25
50
40540415
Shim 6x18x0,25
50
40540448
Shim 6x8,5x0,30
50
40540450
Shim 6x9,5x0,30
51
48600060
Pistonring 26x28x5
52
48600042
Piston 6,05x27,65x12 rebound
55
40540486
Nut M6x0,5 h6,5 WAF10 rebound
58
48600081
TUBE 29,3X1X390 D=8,5MM
59
48600048
O-ring 46x2 NBR70 siliconized yellow
60
48600860S
AXLE CLAMP L/S CPL.
61
48600861S
Axle clamp right cpl.
62
0025080256
Vis
63
48600163
Nut valve M6x0,5 h6,5 WAF17
64
48600202
Spring (8,5) l6,5 valve
69
48600586S3
Compression, cmpl.
70
48600061
Shim 8x24x0,40
71
48600047
Piston 6x27,8x9 compression
72
46811499
O-ring 21x2 NBR70
73
35480320
O-Ring (24x2)
74
48600586S3
Compression, cmpl.
75
48600190
Needle 10x11,6 compression
76
48600049
O-ring 8x2 NBR70
79
48600051
Rondelle (Lock)
80
48600034
Adjustment screw slot compression
81
48600004
Copper disc 29,5x33,5x1
82
48600141
Rubber cap 35x10 NBR80
83
48601166S1
FORK OIL SAE4 5L
85
48600075S
PRE-LOAD ADJUSTER CPL.(1 PC.)
87
48600481
Cross countersunk head screw M4x8
88
48600046
O-ring 3x1,5 NBR70
89
48600075
SCREW CAP M51X1,5
90
48600073S
ADAPTER ADJUST. KNOB + BUSHING
91
48600077
O-ring 26x2 NBR90
92
46810010
Round-wire snap ring 49x1,8
93
48600072
Locking nut M25x1 LH h7 WAF32
94
48600071
Carrier ring spring fork
98
T14034
Fuchs grease IPR (250g)
99
R14013
EPAIR-KIT EXC FRONT FORK06/07
