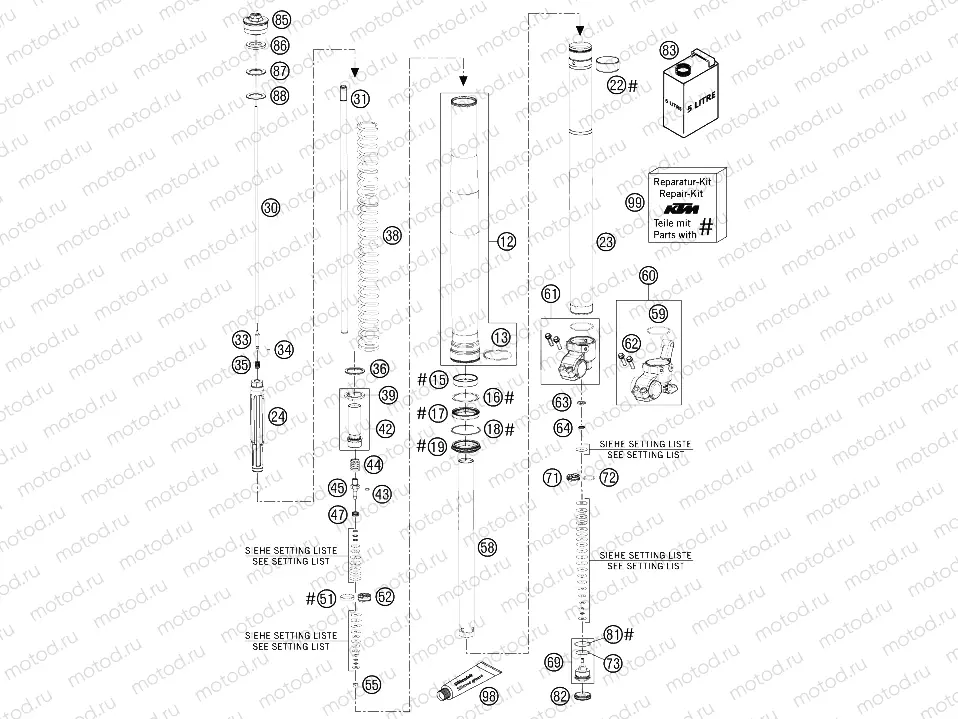

FRONT FORK DISASSEMBLED

FRONT FORK DISASSEMBLED
Например: 48600553E
12
48600553E
OUTER TUBE L=610MM D=54/60 2L
13
48600016
Round-wire snap ring 48x2
15
48601009
Guide bushing 48x52x12
16
48600013
Supportwasher 50x57,6x1,5
17
S604800001000C1
Oil Seal Ring 48X57,8X9,5 03
1 623 ₽/шт
18
48600070
Rondelle (Lock)
19
S604800000000C1
Fork dust seal
22
48601008
Guide bushing 47x49x20
23
48600417
INNER TUBE D=48 L=595 2005
24
48600380S1
top 14,4x32,1x200 cpl.
30
48600143
ADJUSTMENT TUBE L=467MM 06
31
48600538
PISTON ROD D=14 M11X1 L=501
33
48600189
Needle 6x42,6 rebound
34
48600046
O-ring 3x1,5 NBR70
35
48600033
Spring (7,2) 4-23 needle
36
48600037
Preload bush 26,5x42x5
38
91410045S
PRING 5,9 N/MM SET D=5,5MM
39
48600021
Spring retainer 33,5x43x3
42
48600196S
crew sleeve M29,3x1 cpl.
43
48600239
O-ring 8x1,25 NBR70 siliconized
44
48600403
Spring (15) 12-34,5 rebound
45
48600203
Tap 6x45 rebound
47
35480377
Spring (11,7) 1,5-8 valve
51
48600060
Pistonring 26x28x5
52
48600042
Piston 6,05x27,65x12 rebound
55
40540486
Nut M6x0,5 h6,5 WAF10 rebound
58
48600537
TUBE 28X29,3X1 L=435 ALU D=8,5
59
48600048
O-ring 46x2 NBR70 siliconized yellow
60
48600534S
AXLE CLAMP L/S KPL. D=48 06
61
48600861S
Axle clamp right cpl.
62
0025080256
Vis
63
48600163
Nut valve M6x0,5 h6,5 WAF17
64
48600202
Spring (8,5) l6,5 valve
69
48600586S3
Compression, cmpl.
71
48600047
Piston 6x27,8x9 compression
72
46811499
O-ring 21x2 NBR70
73
35480320
O-Ring (24x2)
81
48600004
Copper disc 29,5x33,5x1
82
48600141
Rubber cap 35x10 NBR80
83
48601166S1
FORK OIL SAE4 5L
85
48600431S
PRE-LOAD ADJ. CPL. M51X1,5 05
86
48600053
Preload bush 26,5x42x1,5
87
48600036
Preload bush 42x26,5x2,5
88
48600038
Preload bush 26,5x42x10
98
T14034
Fuchs grease IPR (250g)
99
R14013
EPAIR-KIT EXC FRONT FORK06/07
