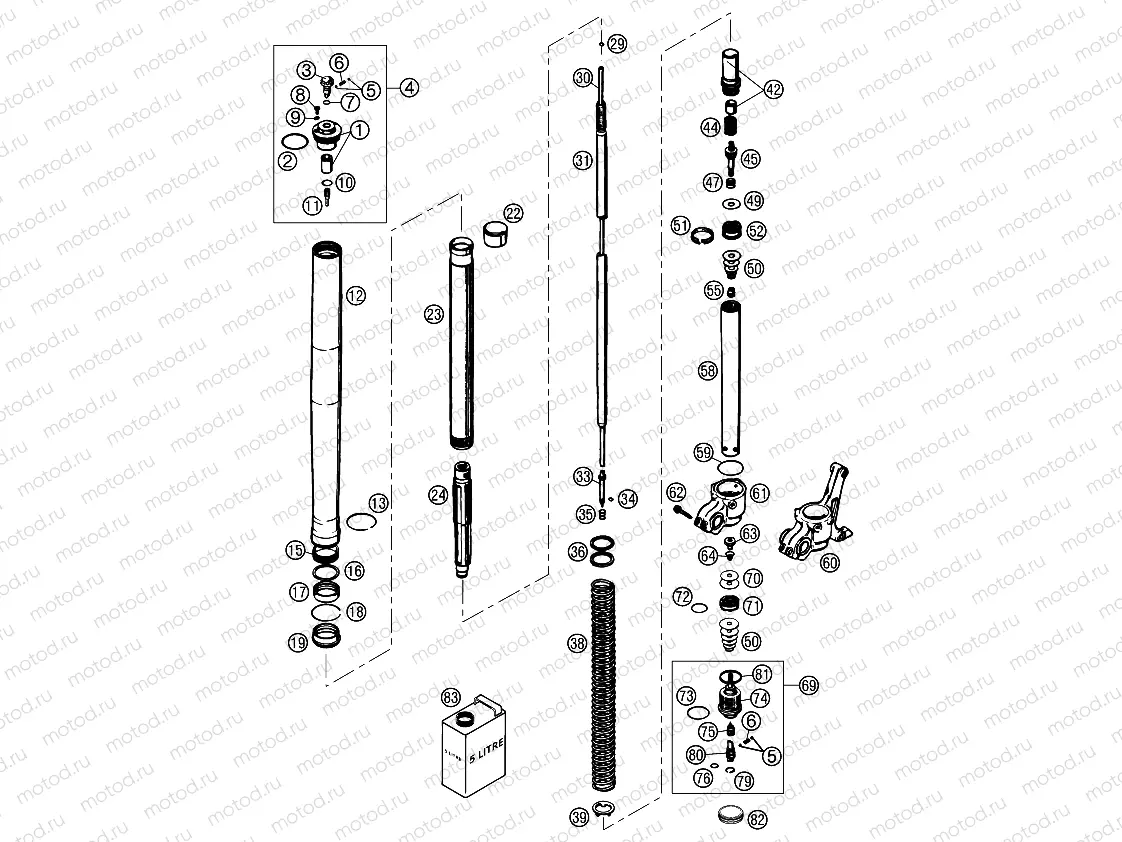

FRONT FORK DISASSEMBLED

FRONT FORK DISASSEMBLED
Например: 48600020S1
1
48600020S1
CREW CAP M51X1,5 CPL.
2
46810340
O-ring 45x2 NBR70 siliconized
3
48600018
Adjuster rebound
4
48600020S1
CREW CAP M51X1,5 CPL.
5
40540603
Steel ball d3
6
48600028
Spring (1,7) l7,9
7
48600044
O-ring 6x1,5 NBR70
8
48600058
Cross flat head screw M4x6
9
48600009
O-ring 3,7x1,6 NBR70
10
48600043
O-ring 12x1,5 NBR70
11
48600019
Tube tap d4x25
12
48600001
OUTER TUBE L=577mm D=54/60MM
13
48600016
Round-wire snap ring 48x2
15
48600429S
LEADING BUSH 48X52X12.8MM
16
48600013
Supportwasher 50x57,6x1,5
17
S604800001000C1
Oil Seal Ring 48X57,8X9,5 03
1 623 ₽/шт
18
48600070
Rondelle (Lock)
19
S604800000000C1
Fork dust seal
22
48601008
Guide bushing 47x49x20
23
48600002
INNER TUBE D=48MM L=590MM
24
48600706S
TOP L200 D31.8 '05 CPL.
29
48600175
O-ring 6,3x2,4 NBR70
30
48600094
ADJUSTMENT TUBE L=492MM
31
48600093
PISTONR. D=14MM L=526MM M11X1
33
48600150
* REBOUND NEEDLE
34
48600046
O-ring 3x1,5 NBR70
35
48600033
Spring (7,2) 4-23 needle
36
48600036
Preload bush 42x26,5x2,5
36
48600037
Preload bush 26,5x42x5
36
48600053
Preload bush 26,5x42x1,5
38
91410006S
PRING 4,4N/MM SET D=5,1MM
39
48600021
Spring retainer 33,5x43x3
42
43570132S
CREW SLEEVE M29,3X1+BUSH
44
48600015
REBOUND SPRING D=14,6MM L=22MM
45
48600151
TAB REBOUND
47
35480377
Spring (11,7) 1,5-8 valve
49
48600062
CHECK VALVE 8X24X0,1
50
48600116
Shim 6x24x0,10 delta
50
40540401
Shim 6x14x0,10
50
40540402
Shim 6x16x0,10
50
40540403
Shim 6x18x0,10
50
40541402
Shim 6x11x0,20
50
40540405
Shim 6x14x0,15
50
40540406
Shim 6x16x0,15
50
40540414
Shim 6x16x0,25
50
40540447
Shim 6x10x0,30
50
48600063
Shim 6x24x0,10
50
48600064
Shim 6x22x0,10
50
48600065
Shim 6x20x0,10
50
40540415
Shim 6x18x0,25
51
48600060
Pistonring 26x28x5
52
48600042
Piston 6,05x27,65x12 rebound
55
40540486
Nut M6x0,5 h6,5 WAF10 rebound
58
48600140
TUBE 29,3X1X385 ALU
59
48600048
O-ring 46x2 NBR70 siliconized yellow
60
48600184
AXLE CLAMP L/S USD48 ADV. 02
61
48600005
AXLE CLAMP R/S USD 48 2002
62
0025080306
Vis
63
40541241
CHECK VALVE NUT M6X0,5
64
40541278
Spring (8,5) l6,5 valve
69
48600586S3
Compression, cmpl.
70
48600061
Shim 8x24x0,40
71
48600047
Piston 6x27,8x9 compression
72
46811499
O-ring 21x2 NBR70
73
35480320
O-Ring (24x2)
74
48600586S3
Compression, cmpl.
75
48600153
NEEDLE COMPRESSION M10X1
76
48600049
O-ring 8x2 NBR70
79
48600051
Rondelle (Lock)
80
48600034
Adjustment screw slot compression
81
48600004
Copper disc 29,5x33,5x1
82
48600141
Rubber cap 35x10 NBR80
83
48601166S1
FORK OIL SAE4 5L
