Главная Каталог товаров KTM EPC 2000 KTM Street KTM 2000 Supermoto KTM 2000 Street 640 LC4-E Super-Moto (972600) [EU] KTM (VIN: VBKGSL4) FRONT FORK DISASSEMBLED

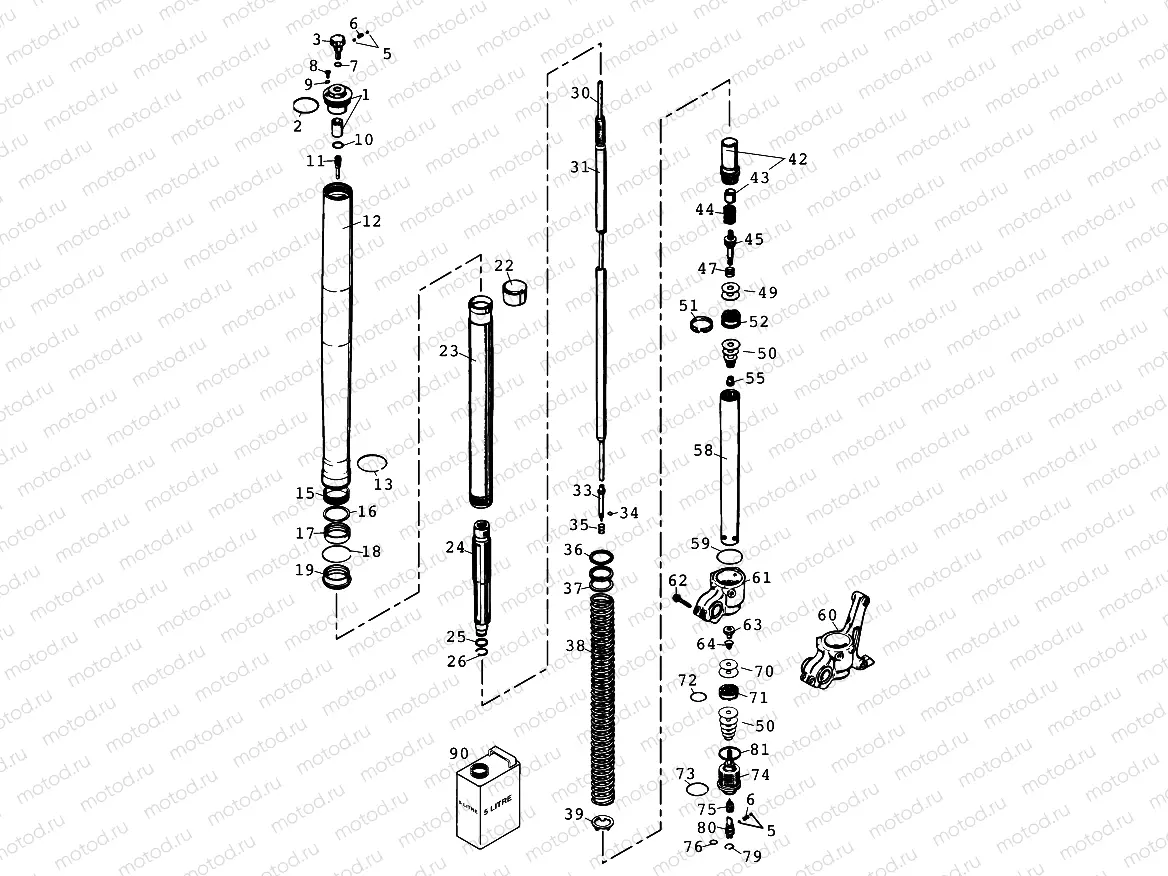

FRONT FORK DISASSEMBLED

FRONT FORK DISASSEMBLED
Например: 48600020S1
1
48600020S1
CREW CAP M51X1,5 CPL.
2
46810016
O-ring 48x2 NBR70 siliconized
3
48600018
Adjuster rebound
5
40540603
Steel ball d3
6
48600028
Spring (1,7) l7,9
7
48600044
O-ring 6x1,5 NBR70
8
48600058
Cross flat head screw M4x6
9
48600009
O-ring 3,7x1,6 NBR70
10
48600043
O-ring 12x1,5 NBR70
11
48600019
Tube tap d4x25
12
43570125
Outer tube l=577mm d=54/57mm
13
43570099
Round-wire snap ring 53x2
15
43570019
DU-BUSH 47 X 43 X 20
16
43570092
Supportwasher 45x52,5x1,5
17
43570623
Shaft seal SKF 43x52,9x11,4 black
18
43570008
Rondelle (Lock)
19
43570624
Dirt scarper SKF 43mm black
22
43570617
Guide bushing 42x44x20
23
43570221
INNER TUBE D=43MM L=585MM
24
43570142S1
HYDR.STOP L=200 D=27,5 CPL. 05
25
48600012
* RING HYDR.STOP
26
48600045
Rondelle (Lock)
30
48600094
ADJUSTMENT TUBE L=492MM
31
48600093
PISTONR. D=14MM L=526MM M11X1
33
48600003
REBOUND NEEDLE
34
48600046
O-ring 3x1,5 NBR70
35
48600033
Spring (7,2) 4-23 needle
36
48600036
Preload bush 42x26,5x2,5
36
48600037
Preload bush 26,5x42x5
36
48600038
Preload bush 26,5x42x10
37
48600053
Preload bush 26,5x42x1,5
38
95010012S
PRING 4,4 N/MM SET D=4,9MM
38
95010013S
PRING 4,2 N/MM SET D=4,75MM
38
95010014S
PRING 4,6 N/MM SET D=4,9MM
38
95010015S
PRING 4,8 N/MM SET D=4,9MM
39
43570131
Spring retainer 33,5x38,2x3
42
43570132S
CREW SLEEVE M29,3X1+BUSH
43
46810651
Guide bushing 14x16x12
44
48600015
REBOUND SPRING D=14,6MM L=22MM
45
48600025
TAP REBOUND
47
48600059
Spring (11) 0,25-10
49
48600062
CHECK VALVE 8X24X0,1
50
40540400
Shim 6x12x0,10
50
40540401
Shim 6x14x0,10
50
40540402
Shim 6x16x0,10
50
40540403
Shim 6x18x0,10
50
40540404
Shim 6x12x0,15
50
40540405
Shim 6x14x0,15
50
40540406
Shim 6x16x0,15
50
40540407
SHIM 6X18X0,15
50
40540411
Shim 6x18x0,20
50
40540414
Shim 6x16x0,25
50
40540447
Shim 6x10x0,30
50
40541383
Shim 6X11X0,10
50
40541391
Shim 6x11x0,30
50
40541402
Shim 6x11x0,20
50
48600063
Shim 6x24x0,10
50
48600064
Shim 6x22x0,10
50
48600065
Shim 6x20x0,10
50
S604800001000C1
Oil Seal Ring 48X57,8X9,5 03
1 623 ₽/шт
50
48600139
Shim 6x22x0,1 delta
51
48600060
Pistonring 26x28x5
52
48600042
Piston 6,05x27,65x12 rebound
55
40540486
Nut M6x0,5 h6,5 WAF10 rebound
58
48600078
* TUBE 29,3X1X385 ALU
59
43570023
O-ring 41x2 NBR70 siliconized yellow
60
43570124S
AXLE CLAMP L/S CPL. 04
61
43570123S
AXLE CLAMP R/S CPL. USD 43 04
62
0025080306
Vis
63
40541241
CHECK VALVE NUT M6X0,5
64
40541278
Spring (8,5) l6,5 valve
70
48600061
Shim 8x24x0,40
71
48600047
Piston 6x27,8x9 compression
72
46811499
O-ring 21x2 NBR70
73
35480320
O-Ring (24x2)
74
48600586S3
Compression, cmpl.
75
48600035
* NEEDLE COMPRESSION M10X1
76
48600049
O-ring 8x2 NBR70
79
48600051
Rondelle (Lock)
80
48600034
Adjustment screw slot compression
81
48600004
Copper disc 29,5x33,5x1
90
48601166S1
FORK OIL SAE4 5L
