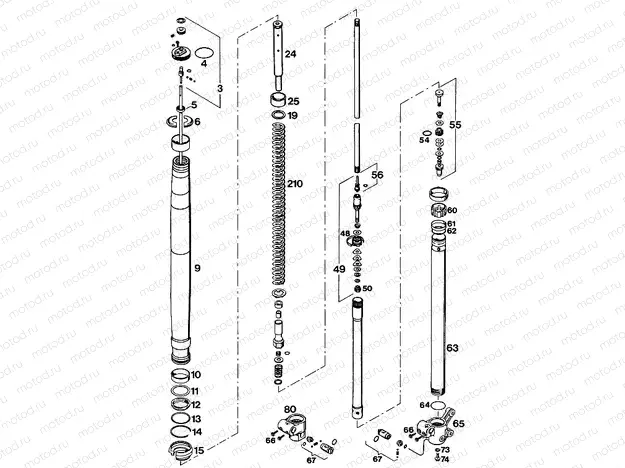

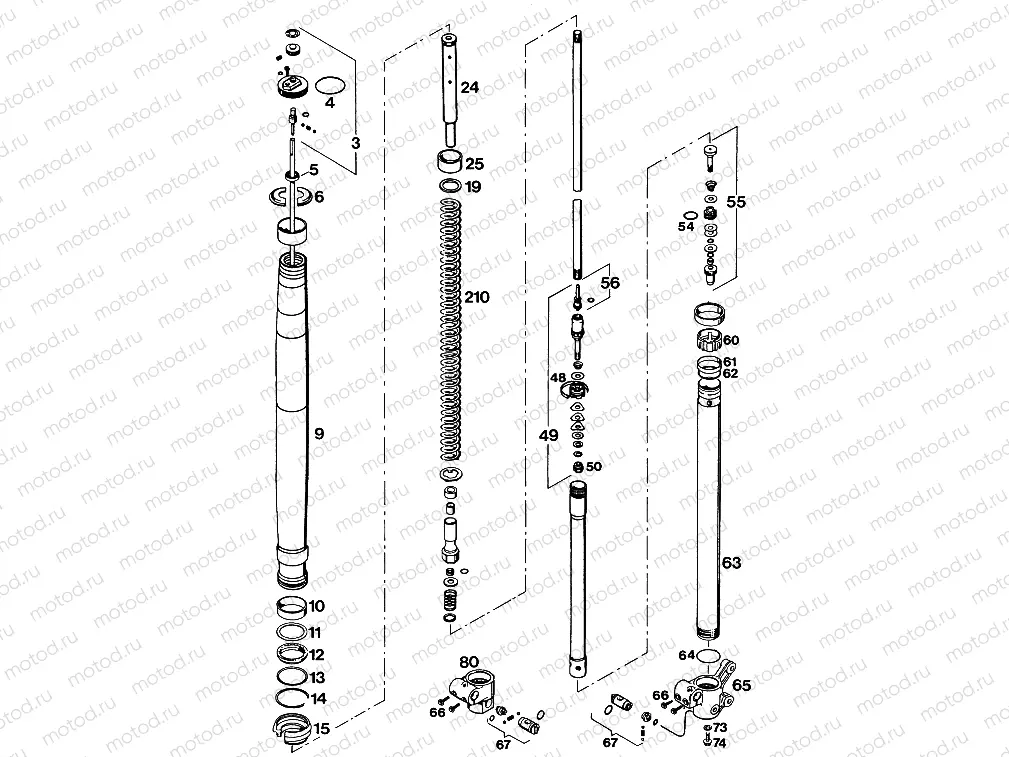

FRONT FORK DISASSEMBLED

FRONT FORK DISASSEMBLED
Например: 57601036044
3
57601036044
SCREW CAP CPL.IBS '94
4
40540026
O-ring 43x3 NBR70
5
54501051000
* rubber gasket 14,1x22x4
6
54501050000
% key half
9
57601004000
* OUTER TUBE L=606MM '
10
40541075
SLIDING BUSHING 40X44X20-10
11
56401027000
RING 42X49,2X1,5
12
40541034
Joint d'huile de fourche
13
56401127000
RING 49,5X45X1
14
56401029000
SEEGER LOCK RING SB50
15
40540756
Fork dust seal
19
54501019000
WASHER 24,5X34X2
24
56501457244
HYDROSTOP CPL IBS L=227,5 MM
25
56401022000
* preload bushing 25x34x5
25
56401022100
% preload bushing 25x34x10
25
56401022200
* preload bushing 25x34x2,5
48
54501070000
* PISTON RING 4X1X62
49
57601071044
REBOUND DAMPING CPL. IBS'94
50
54501072000
* HEX.NUT M6X0,5
54
40540437
O-ring 15,6x1,78 NBR
55
50201476644
* COMPRESSION DAMPING CPL.
55
50201476744
* COMPRESSION DAMPING CPL.
56
56501467244
* ADJUSTMENT SCREW CPL IBS '93
60
40540468
RETAINER RING FOR DU-BUSH MA
61
40540864
BEARING RING 42,8´X8X8
62
54501046000
% ring 39x42x1
63
54501003300
% inner tube l=625mm "0618q712
64
0770380020
O-RING 38,00X2,00 NBR 70 SH
65
54501206100
% fork leg ax.passag. d17 brem
66
0015070253
Vis
67
54501078144
% adjustment screw comp.dampin
73
58038032100
SEAL RING 8 X 12 X 2
74
54501082000
COLLAR SCREW M8X20
80
57601106000
% axle clamp r/s '94
210
54501021380
* SPRING 530 MM 3,8 KG
210
54501021405
* SPRING 530 MM / 4,0 KG
210
54501021420
* SPRING 543 MM / 4,2 KG
210
54501021440
SPRING 530 MM / 4,4 KG
210
54501021460
* SPRING 530 MM / 4,6 KG
