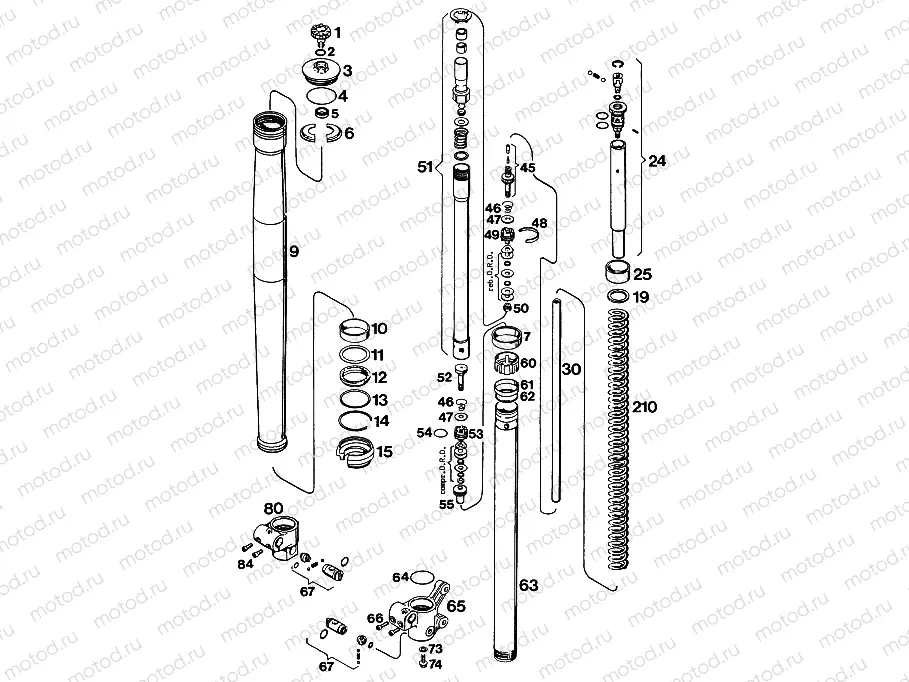

FRONT FORK DISASSEMBLED

FRONT FORK DISASSEMBLED
Например: 54501038000
1
54501038000
*ADJUSTMENT KNOB REBOUND DAMP.
2
54501039000
% o-ring 12x3
3
54501036000
* SCREW CAP M 49X1,5
4
40540026
O-ring 43x3 NBR70
5
54501051000
* rubber gasket 14,1x22x4
6
54501050000
% key half
7
54501052000
BUSHING 47X21
9
50201404500
* OUTER TUBE 54/57X606 '93
10
40540030
GUIDE BUSHING LOW
11
56401027000
RING 42X49,2X1,5
12
40541034
Joint d'huile de fourche
13
56401127000
RING 49,5X45X1
14
56401029000
SEEGER LOCK RING SB50
15
40540756
Fork dust seal
19
54501019000
WASHER 24,5X34X2
24
54501057044
* HYDROSTOP CPL L=227,5MM
25
56401022000
* preload bushing 25x34x5
25
56401022100
% preload bushing 25x34x10
25
56401022200
* preload bushing 25x34x2,5
30
54501010000
* SPINDLE 12X551
45
54501067044
* TAPER REBOUND DAMPING CPL
46
54501068000
% spring
48
54501070000
* PISTON RING 4X1X62
49
54501071000
* PISTON REBOUND DAMPING
50
54501072000
* HEX.NUT M6X0,5
51
50201473544
* DAMPING TUBE CPL. L=408MM '9
52
54501074100
Vis (spec)
53
54501075000
* PISTON COMPRESSION DAMPING
54
40540437
O-ring 15,6x1,78 NBR
55
54501076000
% taper m22,3x1 compression da
60
40540468
RETAINER RING FOR DU-BUSH MA
61
40540864
BEARING RING 42,8´X8X8
62
54501046000
% ring 39x42x1
63
54501003300
% inner tube l=625mm "0618q712
64
0770380020
O-RING 38,00X2,00 NBR 70 SH
65
54501206100
% fork leg ax.passag. d17 brem
66
0912070253
AH SCREW DIN912 M7x25
67
54501078144
% adjustment screw comp.dampin
73
58038032100
SEAL RING 8 X 12 X 2
74
54501082000
COLLAR SCREW M8X20
80
54501106100
% fork leg axle passage r/s d2
210
54501021380
* SPRING 530 MM 3,8 KG
210
54501021405
* SPRING 530 MM / 4,0 KG
210
54501021420
* SPRING 543 MM / 4,2 KG
210
54501021440
SPRING 530 MM / 4,4 KG
210
54501021460
* SPRING 530 MM / 4,6 KG
