Главная Каталог товаров HUSQVARNA EPC 2012 HUSQVARNA WR 250-300 HUSQVARNA 2012 FRONT FORK ASSEMBLY

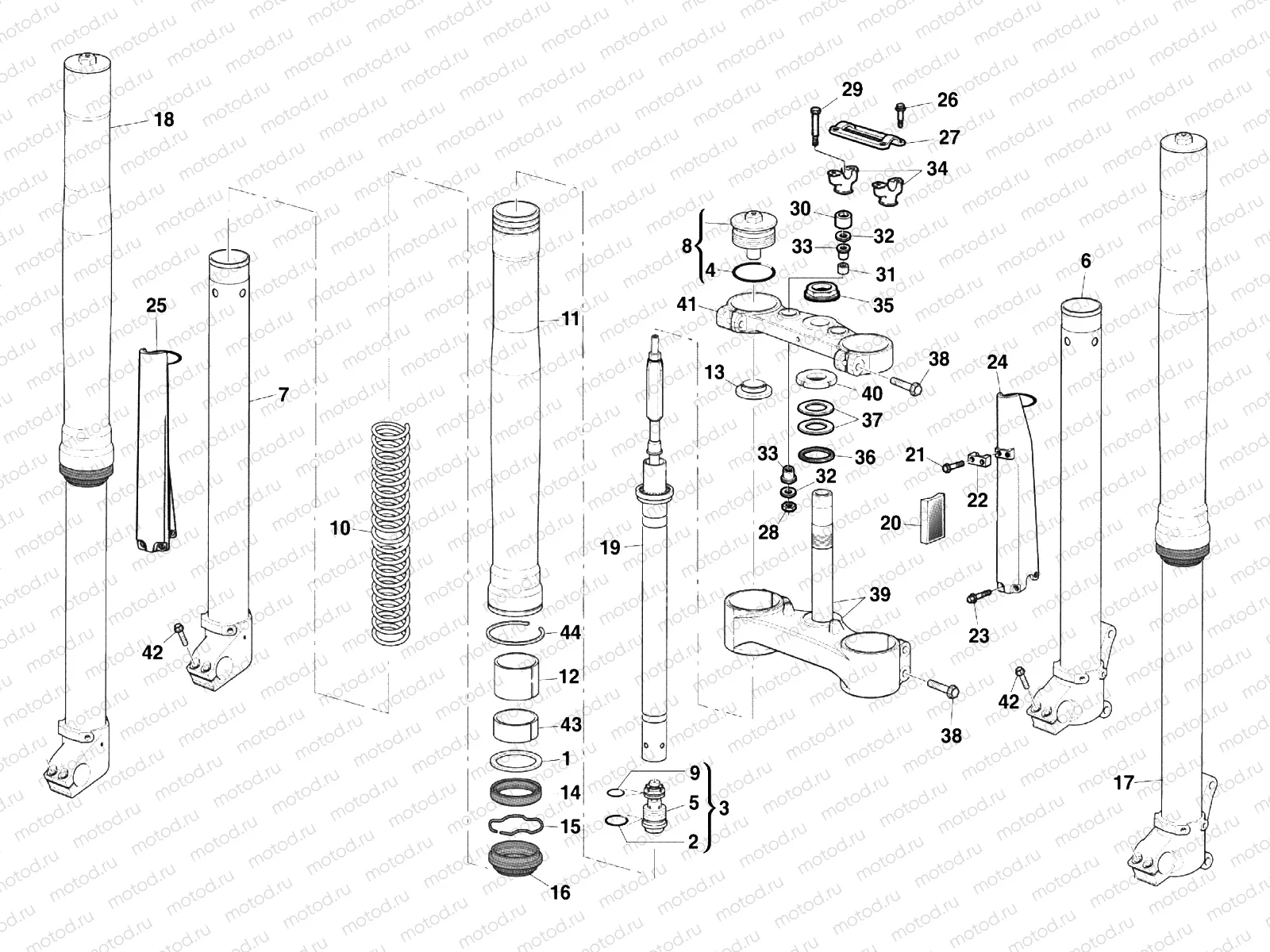

FRONT FORK ASSEMBLY

FRONT FORK ASSEMBLY
Например: 8000H2661
1
8000H2661
GASKET, OIL CAP
2
8000H2693
LOWER VALVE O-RING
3
8000H2689
VALVE ASSEMBLY
4
8000H2694
UPPER VALVE O-RING
5
8000H2696
VALVE SUPPORT
6
8000H2687
FORK INNER TUBE LH
7
8000H2686
RH ASSEMBLY
8
8000H2692
PLUG
9
8000H2695
PISTON RING
10
8000H2690
SPRING K=4,2 N/MM
11
8000H2656
PIPE ASSY
12
8000H2659
PISTON
13
8000H2691
SPRING SEAT
14
8000H2662
OIL SEAL
15
8000H2663
Rondelle
16
8000H2664
STRIPPER
17
8000H2939
FORK LEG ASSY, LEFT
18
8000H2940
BUSH
19
8000H2688
CYLINDER ASSY
20
800074842
REFLEX REFLECTOR, SIDE
21
ZA0084658
SCREW M5X0,8-CH8-L16
22
80A0A0633
PLATE
23
8000A8423
Vis
24
80A0A8481
GUARD FORK TUBE, LH
25
80A0A8482
GUARD FORK TUBE, RH
26
8000B1959
SCREW M8X30 MM
27
8000H3069
UPPER CLAMP
28
Z00061314
Nut (Lock)
29
60ND01222
Vis
30
8A00A6683
Entretoise
31
8000H1714
SPACER D12XD10X33
32
800060234
Rondelle (28x22x10.5x2.5)
33
8000H1385
Entretoise
34
8000H2355
LOWER CLAMP
35
8A0069315
NUT, STEERING STEM M26X1 CH30
36
Z00087736
Rondelle
37
800087745
Gasket
38
8E00B1959
Vis
39
8000H1396
STEERING STEAM ASSY
40
8A0087717
Nut
41
8000H1286
EAD STEERING STEM
42
8000H2671
Vis
43
8000H2660
BUSHING
44
8000H2672
RING
