Главная Каталог товаров HUSQVARNA EPC 2005 HUSQVARNA 250-400-450-510 HUSQVARNA 2005 (VIN: ZCGH803C) FRONT FORK ASSEMBLY

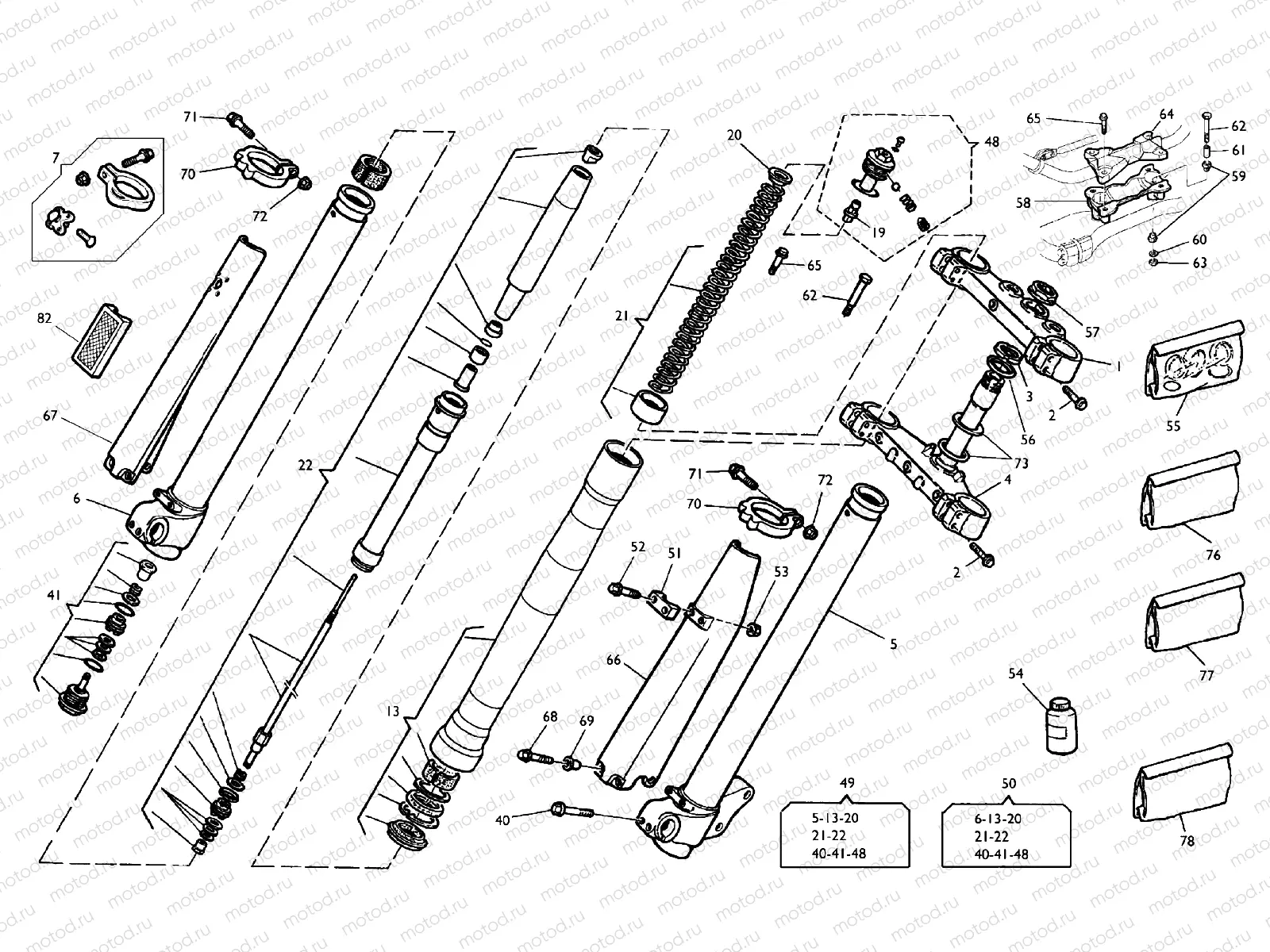

FRONT FORK ASSEMBLY

FRONT FORK ASSEMBLY
Например: 800095703
1
800095703
HEAD, STEERING STEM
1
8A0096811
HEAD, STEERING STEM
1
800096811
HEAD, STEERING STEM
2
Z00062796
Vis
3
8A0087717
Nut
3
800083395
RING NUT, STERING STEM
4
800096897
UNDER BRACKET ASSY
4
800095702
UNDER BRACKET ASSY
4
800096813
UNDER BRACKET ASSY
5
8A0096643
FORK INNER TUBE LEFT
5
800098787
FORK INNER TUBE LEFT
6
800098786
FORK INNER TUBE RIGHT
7
8000A3191
KIT STARTING HOOK
13
800091474
FORK OUTER TUBE ASSY
19
7850652
PIN + O-RING
20
800077373
CUP
21
800098803
FORK SPRING K=5.0 N/MM
21
800091610
FORK SPRING K=4.5 N/MM
21
800098789
FORK SPRING K=4.8 N/MM
21
8000A4876
SPRING, FRONT FORK K=4.8 N/MM
22
800096645
PLUNGER ASSY
22
800098552
PISTON, FRONT FORK
22
800098792
PLUNGER ASSY
40
Z00062729
Vis
41
800096647
BOTTOM VALVE ASSY
41
800095260
VALVE ASSY, BASE
41
800098781
BOTTOM VALVE ASSY
48
800091480
CAP, FRONT FORK
49
8A0097015
FORK LEG ASSY, LEFT
49
8A0095699
FORK LEG ASSY, LEFT
49
800096839
LH FRONT CUSHION ASS'Y
50
800096840
RIGHT FRONT FORK ASSY
50
8A0095698
FORK LEG ASSY, RIGHT
50
8A0097016
FORK LEG ASSY, RIGHT
51
8000A0633
PLATE
51
80A0A0633
PLATE
52
ZA0067997
Vis
53
Z00061355
Nut (Lock)
54
800080260
FORK OIL
55
800091519
FRONT FORK OVERHAUL SET
56
8A0065503
WASHER 34.5X26
56
800087736
WASHER 40.5X29.5X2
57
8A0069315
NUT, STEERING STEM M26X1 CH30
57
800069315
NUT, STEERING STEM M24X1 CH30
58
800098237
HOLDER HANDLE LOWER
59
800060233
RUBBER
60
800060234
Rondelle (28x22x10.5x2.5)
61
8000H3016
Entretoise
62
60N101219
SCREW TE M10X1.5X65
63
Z00061314
Nut (Lock)
64
800098118
HOLDER, HANDLE UPPER
65
SPMV8C00B2682
REW M8X1,25-L30
66
80A095696
GUARD FORK TUBE, LH
66
800095696
GUARD FORK TUBE, LH
66
80G0H6084
ABELSTANGENSCHUTZ LINKS
67
80G069338
UARD FORK TUBE, RH
67
80C069338
GUARD FORK TUBE, RH
68
Z00067997
Vis
69
800069282
Bushing
70
800093283
Collier
71
8B0066525
Vis (M5x1x30)
72
800056443
Nut
73
800087745
Gasket
76
800097750
BUSHING SLIDE OVERHAUL SET
77
800097749
FRONT FORK SEAL OVERHAUL SET
78
800098782
REED SET 0.1 MM
78
800098784
REED SET 0.3 MM
78
800098785
REED SET 0.4 MM
78
800098783
REED SET 0.2 MM
82
800074842
REFLEX REFLECTOR, SIDE
