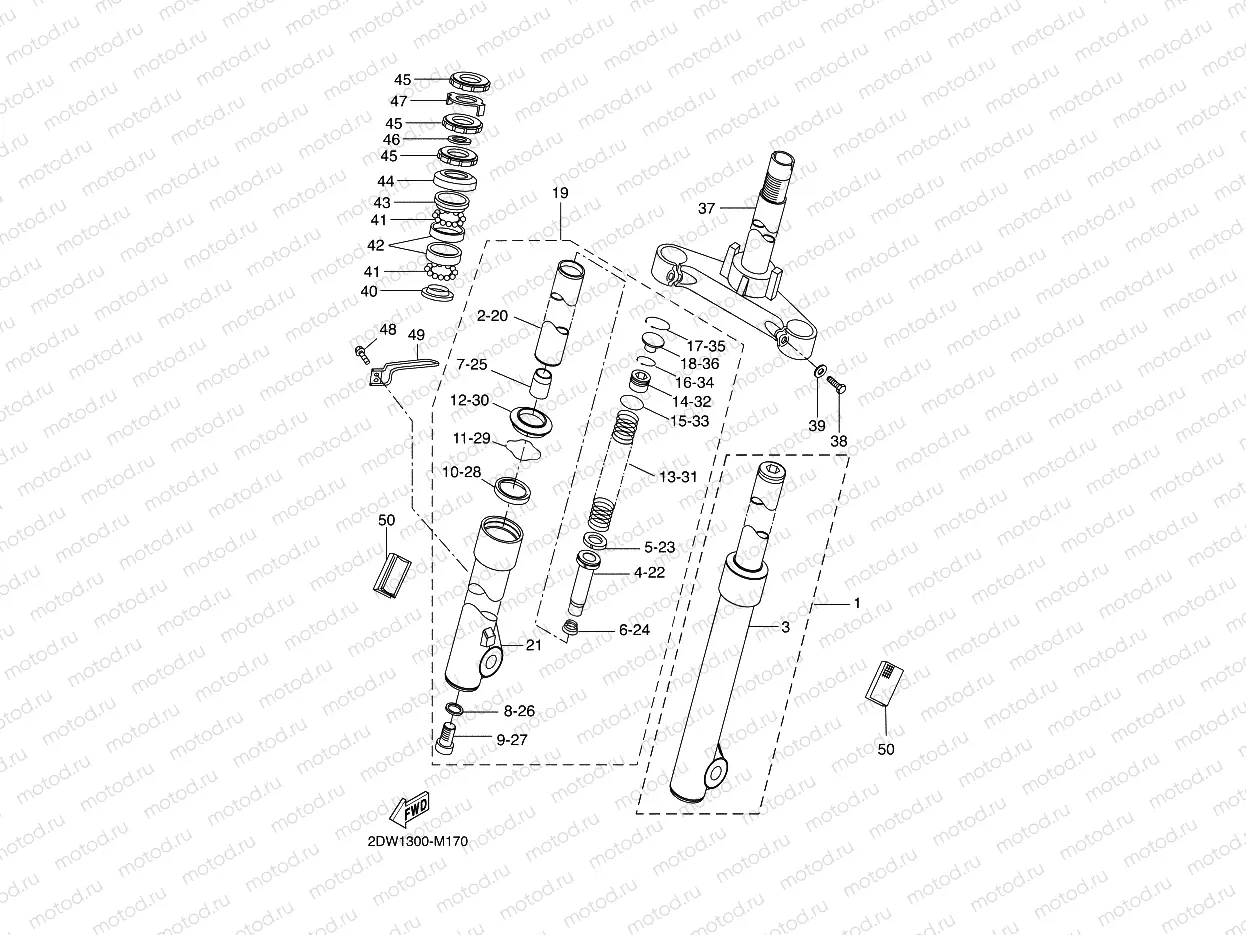

FRONT FORK

FRONT FORK
Например: 2DW-F3102-00
1
2DW-F3102-00
RONT FORK ASSY (L.H) (LH)
2
2DW-F3110-00
INNER TUBE COMP.1
3
2DW-F3126-00
TUBE, OUTER (L.H)
4
1WP-F3170-00
CYLINDER COMP., FRONT FORK
5
5ME-F3157-30
RING, PISTON
6
5ME-F2169-30
SPRING, TENSIONER
7
5ME-F3166-30
SPACER, OIL LOCK
8
5ME-F3165-30
WASHER, FELT
9
5ME-F3181-30
Vis
10
5ME-F3145-30
Сальник (KAIFA)
1 472 ₽/шт
11
5ME-F3156-30
RING, SNAP
12
5ME-F3144-30
SEAL, DUST
13
2DW-F3141-00
SPRING, FRONT FORK
14
5ME-F3113-30
COLLAR
15
5ME-F3147-30
O-Ring
16
5ME-F3183-30
Seeger
17
5ME-F387J-30
RING, STOPPER
18
5ME-F3111-30
BOLT, CAP
19
2DW-F3103-00
RONT FORK ASSY (R.H) (RH)
20
2DW-F3110-00
INNER TUBE COMP.1
21
2DW-F3136-00
TUBE, OUTER (R.H)
22
1WP-F3170-00
CYLINDER COMP., FRONT FORK
23
5ME-F3157-30
RING, PISTON
24
5ME-F2169-30
SPRING, TENSIONER
25
5ME-F3166-30
SPACER, OIL LOCK
26
5ME-F3165-30
WASHER, FELT
27
5ME-F3181-30
Vis
28
5ME-F3145-30
Сальник (KAIFA)
1 472 ₽/шт
29
5ME-F3156-30
RING, SNAP
30
5ME-F3144-30
SEAL, DUST
31
2DW-F3141-00
SPRING, FRONT FORK
32
5ME-F3113-30
COLLAR
33
5ME-F3147-30
O-Ring
34
5ME-F3183-30
Seeger
35
5ME-F387J-30
RING, STOPPER
36
5ME-F3111-30
BOLT, CAP
37
1WP-F3340-00
UNDER BRACKET COMP.
38
5ME-F3394-30
BOLT, SPECIAL
39
5ME-F3112-30
WASHER, CAP
40
22F-23414-01
Шайба подшипника
811 ₽/шт
41
22F-2341E-00
Подшипник (сепаратор)
1 319 ₽/шт
42
BP2-23412-00
Race, Ball 2
763 ₽/шт
43
BP2-23411-00
Race, Ball 1
1 213 ₽/шт
44
3VP-23416-00
Крышка подшипника
270 ₽/шт
45
90179-25004
Гайка
429 ₽/шт
46
90202-26X00
Шайба
149 ₽/шт
47
5DS-F3418-00
Шайба специальная
468 ₽/шт
48
2DW-F3317-00
HOLDER, CABLE
49
9580M-06012
Болт
133 ₽/шт
50
5HE-H5111-00
Светоотражатель
1 655 ₽/шт
