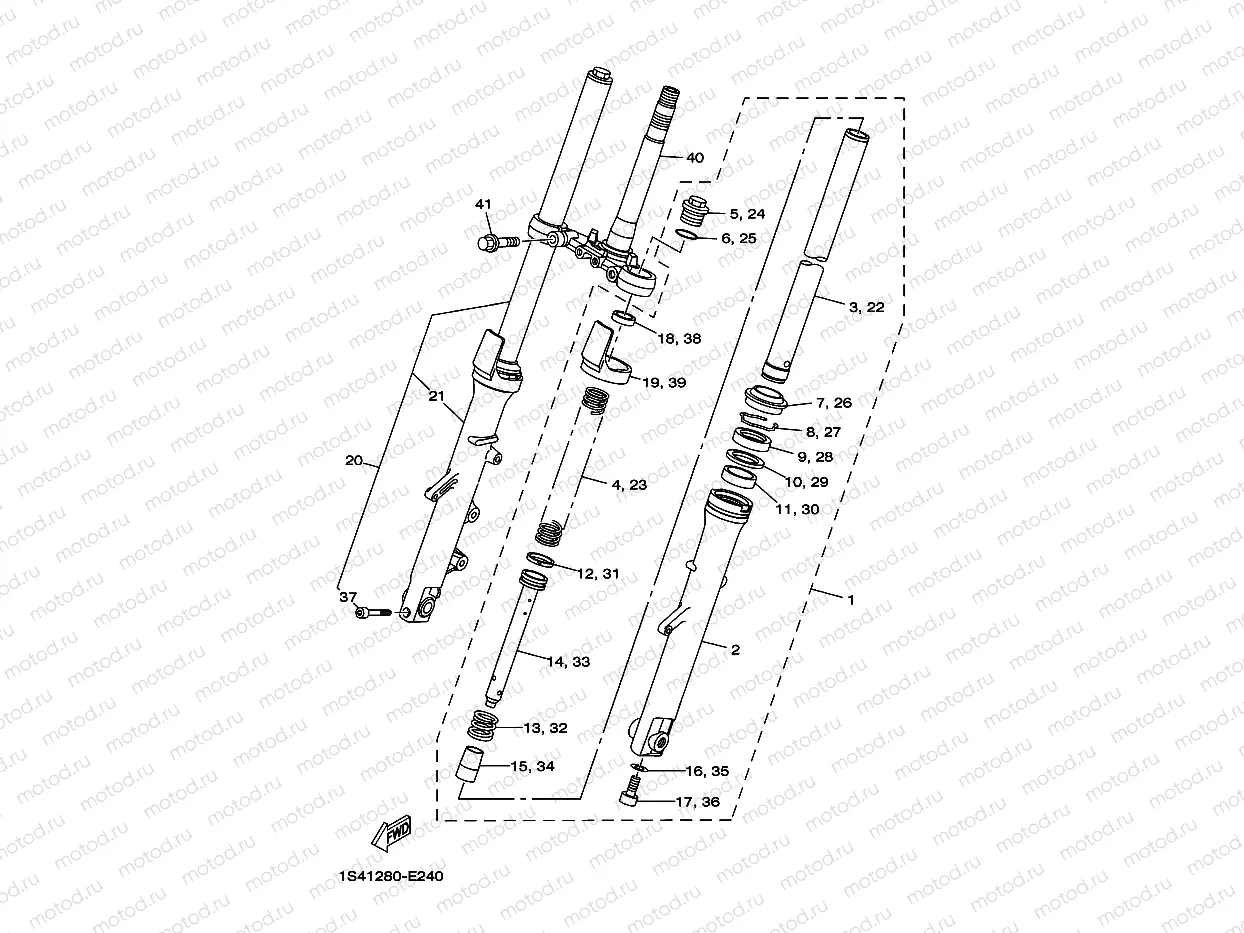

FRONT FORK

FRONT FORK
Например: 1S4-F3102-00
1
1S4-F3102-00
RONT FORK ASSY (L.H) (LH)
2
1S4-F3126-00
TUBE, OUTER (LEFT)
3
1S4-F3124-00
TUBE, INNER 1
4
1S4-F3141-00
PRING, FRONT FORK
5
1S4-F3111-00
BOLT, CAP
6
1S4-F3147-00
O-Ring
7
1S4-F3144-00
EAL, DUST
8
1S4-F3156-00
CLIP, OIL SEAL
9
1S4-F3145-00
Joint
10
1S4-F3146-00
WASHER, OIL SEAL
11
1S4-F3125-00
METAL, SLIDE 1
12
1S4-F3157-00
RING, PISTON
13
1S4-F3151-00
PRING, REBOUND
14
1S4-F3171-00
PISTON, FRONT FORK
15
1S4-F3173-00
PINDLE, TAPER
16
3MA-23163-10
Прокладка
493 ₽/шт
17
4NK-23181-00
Болт
699 ₽/шт
18
1S4-F3118-00
Entretoise
19
1S4-F331G-00
COVER
20
1S4-F3103-00
RONT FORK ASSY (R.H) (RH)
21
1S4-F3136-00
TUBE, OUTER (RIGHT)
22
1S4-F3124-00
TUBE, INNER 1
23
1S4-F3141-00
PRING, FRONT FORK
24
1S4-F3111-00
BOLT, CAP
25
1S4-F3147-00
O-Ring
26
1S4-F3144-00
EAL, DUST
27
1S4-F3156-00
CLIP, OIL SEAL
28
1S4-F3145-00
Joint
29
1S4-F3146-00
WASHER, OIL SEAL
30
1S4-F3125-00
METAL, SLIDE 1
31
1S4-F3157-00
RING, PISTON
32
1S4-F3151-00
PRING, REBOUND
33
1S4-F3171-00
PISTON, FRONT FORK
34
1S4-F3173-00
PINDLE, TAPER
35
3MA-23163-10
Прокладка
493 ₽/шт
36
4NK-23181-00
Болт
699 ₽/шт
37
1S4-F3128-00
BOLT, AXLE HOLDER
38
1S4-F3118-00
Entretoise
39
1S4-F331G-00
COVER
40
44C-F3340-00
UNDER BRACKET COMP
41
9581M-10030
Vis
