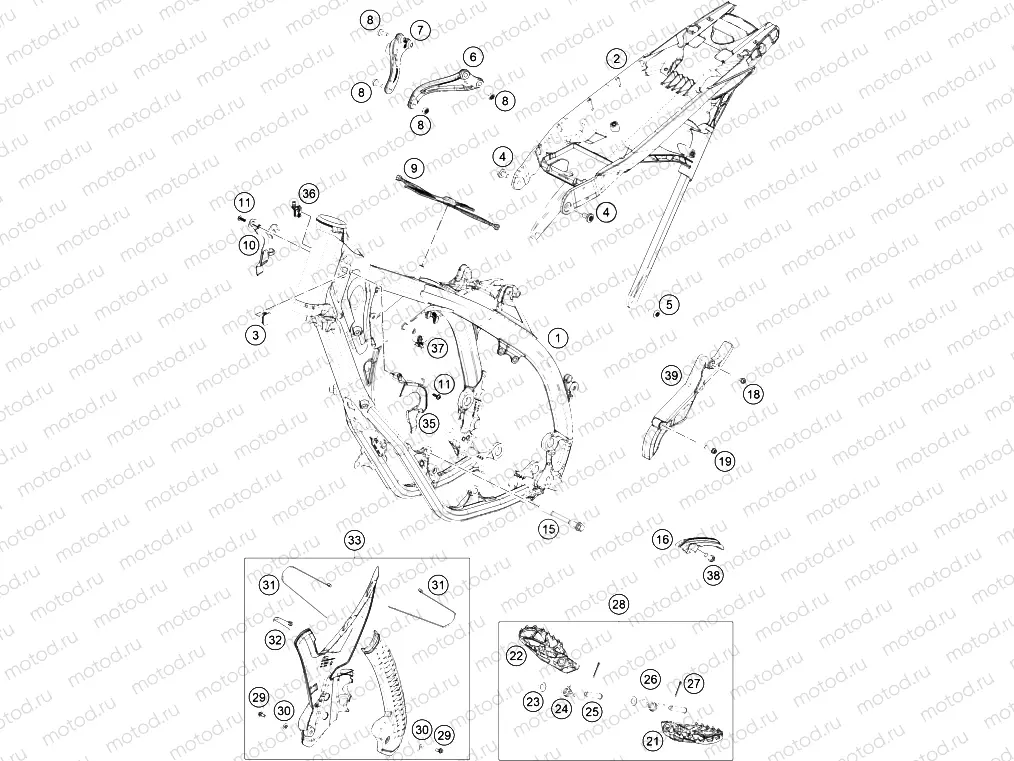

FRAME|Frame|03

FRAME|Frame|03
Например: A42003001000HF
1
A42003001000HF
QV FRAME
2
A36003002000C1A
HQV SUBFRAME
3
79111013010
Cover control head sheet
4
09000008016U0
Special screw M8x16 ISA45 self-locking
5
79003003000
Vis (spec)
6
A42003013000
ENGINE BRACE LEFT
7
A42003014000
ENGINE BRACE RIGHT
8
0035080206S
HCS M8x20 TX45
9
A46007012000
TANK SUPPORT RUBBER
10
A46003099020
CABLE BRACKET/THROTTLE CABLE GUIDE
11
0081050141
EJOT PT screw K50x14
15
59003013000
ENGINEBRAC.SCREW M10X123 WS=13
16
A46003053000
CHAIN SLIDER BELOW
18
0025080206
Vis
19
0025060456
Vis
21
A46003040000
FOOT GRID LEFT
22
A46003041000
FOOT PEG RIGHT
23
0125100003
washer DIN 125 A 10.5
24
A46003045000
FOOTREST SPRING RIGHT
25
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
26
A46003044000
FOOTREST SPRING LEFT
27
0094032253
PIN DIN0094-3,2X25 STEEL
28
A46003037033
FOOTPEG SET
29
0025050106
HH collar screw M5x10 TX30
30
54803092060
BUSH F. FRAME PROTECTION 03
31
44011076200
CABLE TIE 200/3,6MM BLACK
32
44011076140
CABLE TIE 140/2,5MM BLACK
33
A36003094000HA
QV FRAME PROTECTION SET
35
A46003099010
CABLE BRACKET
36
50303089000
ANGLE PIECE '97
37
79711013010
Cable bracket d8
38
0025080206
Vis
39
A42003096000
FRONT SPROCKET COVER
