Главная Каталог товаров HUSQVARNA EPC 2022 HUSQVARNA Offroad HUSQVARNA 2022 FE 250 CKD (F2187V4) [] HUSQVARNA 2022 Offroad FRAME|Frame|03

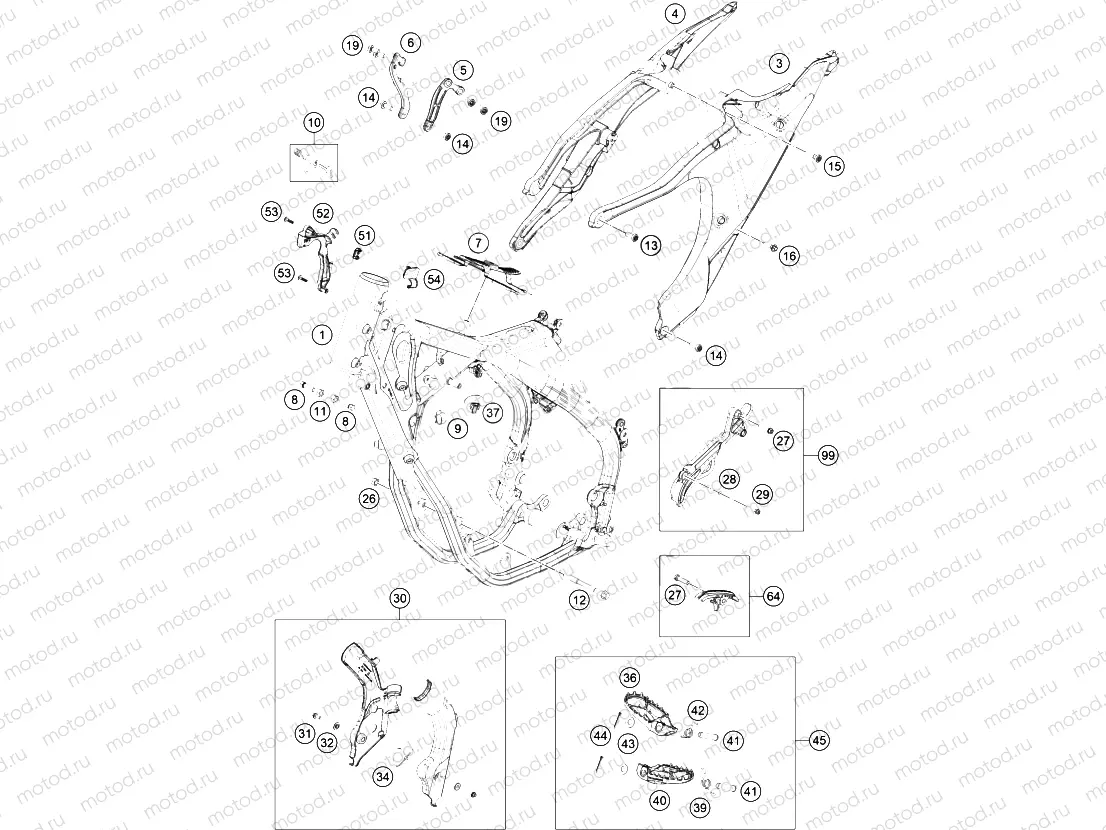

FRAME|Frame|03

FRAME|Frame|03
Например: 2510310110024
1
2510310110024
Frame 251
3
25103002144
Subframe kit le.
4
25103002244
Subframe kit ri.
5
79303113100
Engine brace left 250/350
6
79303114100
Engine brace right 250/350
7
79607012000
TANK REST RUBBER
8
59001037000
Vis (spec)
9
58111076000
CABLE SUPPORT KHS NR.150-47610
10
78003035100
Steering lock
11
0934080003
Nut
12
77203014000
engine brac.scr. M10x115
13
0035080256S
ISA collar screw M8x25 ISA45
14
0035080206S
HCS M8x20 TX45
15
0035080306S
Vis (M8x30)
16
0016070253
PLASTIC SCREW K7X25 PT1447
19
0035080156S
AH-COLLAR SCREW M8X15 TORX45
26
54310086100
SELF LOCKING NUT M10 CU WS=14
27
0025080306
Vis
28
0125060003
WASHER DIN0125-A 6,4
29
0025060406
Vis
30
25103094100BJ
Frame protection set
31
0025050106
HH collar screw M5x10 TX30
32
54803092060
BUSH F. FRAME PROTECTION 03
34
44011076200
CABLE TIE 200/3,6MM BLACK
34
44011076305
CABLE TIE 300/4,8MM BLACK
36
79603041000
FOOTREST R/S EXC 2017
37
79711013010
Cable bracket d8
39
79003044000
FOOTREST SPRING R/S 2016
40
79603040000
FOOTREST L/S EXC 2017
41
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
42
79003045000
FOOTREST SPRING L/S 2016
43
0125100003
washer DIN 125 A 10.5
44
0094032253
PIN DIN0094-3,2X25 STEEL
45
79603040133
Footrest-Set
51
79111013010
Cover control head sheet
52
79711013000
Cable holder throttle cable guide
53
0081050181
SCREW FOR PLASTIC K50X18 T20
54
79111014010
Cable holder
64
79003053010
CHAIN SLIDING KIT BELOW CPL.16
99
79003096010
SPROCKET COVER KIT
