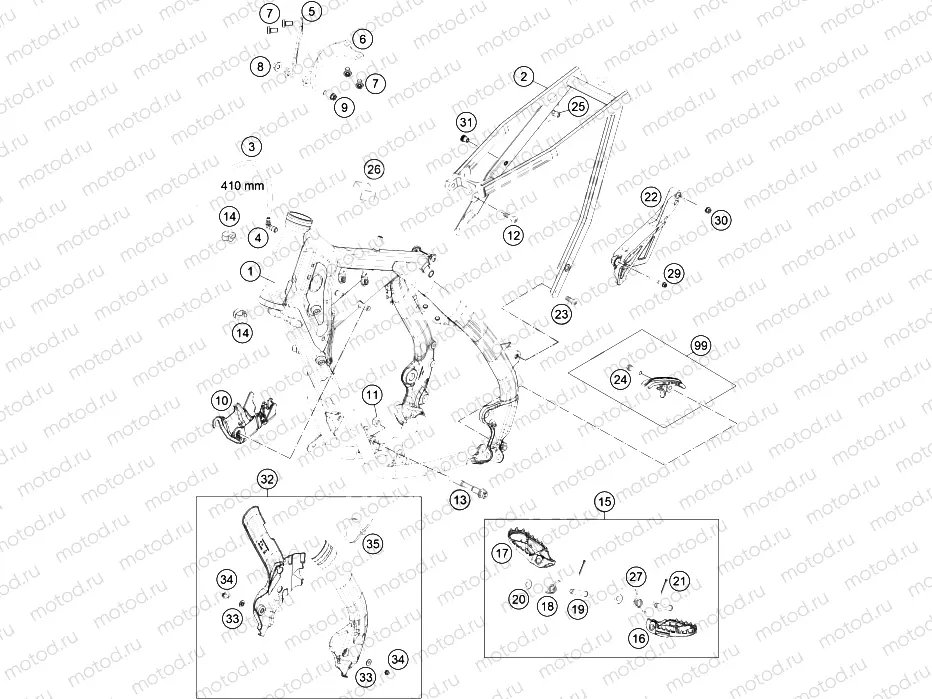

FRAME|Frame|03

FRAME|Frame|03
Например: 4720300120069
1
4720300120069
Frame 472T3
2
47203002000
Subframe
3
50335030001
PVC-HOSE 6X9
4
51030022000
pc - ANGLE PIECE 90 DEGREE M10X1
5
47203014000
MOTORSTREBE RECHTS
6
47203013000
Motorbracket left
7
0035080156S
AH-COLLAR SCREW M8X15 TORX45
8
54310086200
Nut (M8x10,9)
9
0025080506
Vis
10
47211095000
Cable compartment
11
54310086100
SELF LOCKING NUT M10 CU WS=14
12
0019080206S
Vis (Flat M8x20)
13
47003013000
ENGINE BRACKET SCREW 85 SX
14
57013072100
WIRING HOLDER 16MM
15
79003040033
FOOT PEGS SET CPL. 2016
16
79003040000
FOOTREST L/S 2016
17
79003041000
FOOTREST R/S 2016
18
79003044000
FOOTREST SPRING R/S 2016
19
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
20
0125100003
washer DIN 125 A 10.5
21
0094032253
PIN DIN0094-3,2X25 STEEL
22
47203096000
Sprocket cover 85
23
79003003000
Vis (spec)
24
0025080306
Vis
25
77303139000
BLIND RIVET NUT EM6-60LF/HX
26
50307012000
ADH. FOIL TRANSP. 80X80 MM 04
27
79003045000
FOOTREST SPRING L/S 2016
29
0025060406
Vis
30
0025080256
Vis
31
79003002080
BLIND RIVET NUT M6 KNURLED
32
4720309400033
frame protection sticker set
33
54803092060
BUSH F. FRAME PROTECTION 03
34
0014050123
Vis
35
44011076305
CABLE TIE 300/4,8MM BLACK
99
79003053010
CHAIN SLIDING KIT BELOW CPL.16
