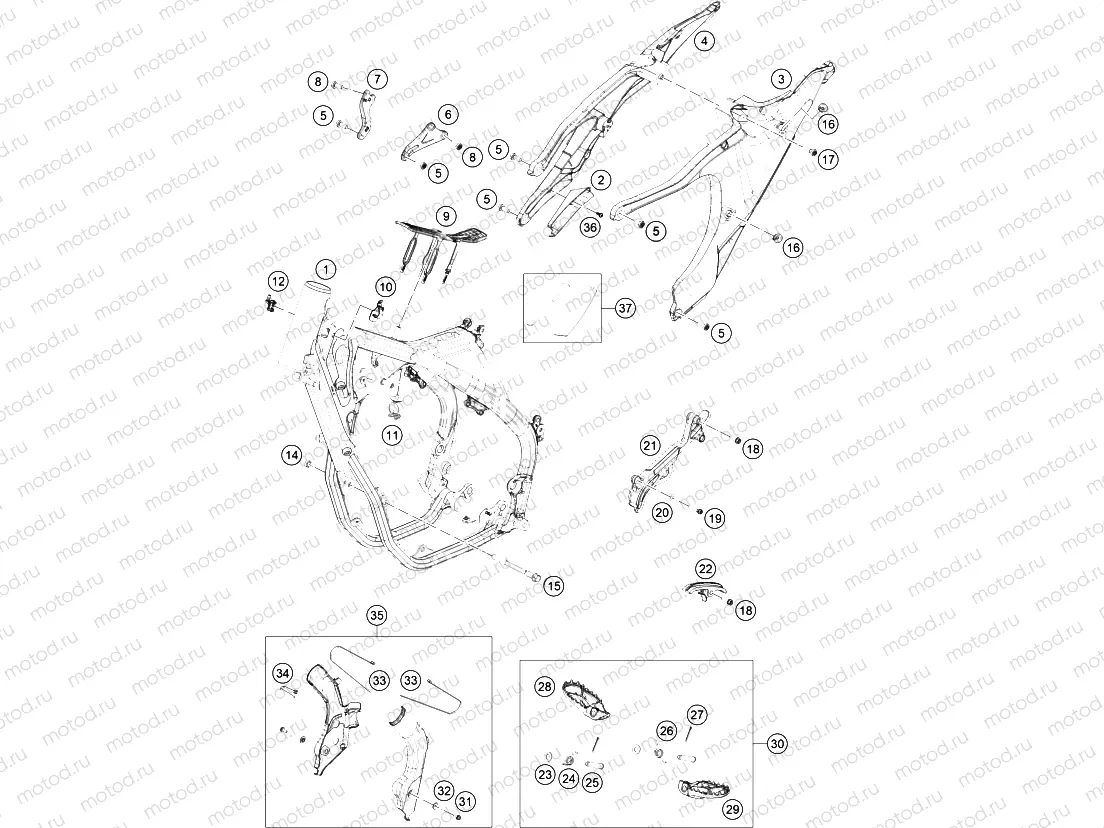

FRAME|Frame|03

FRAME|Frame|03
Например: 7910300120069
1
7910300120069
Frame, 791T3
2
25105090000
HEAT PROTECTION SUBFRAME
3
2510300211033A
SUBFRAME LEFT
4
2510300212033A
SUBFRAME RIGHT
5
0035080206S
HCS M8x20 TX45
6
7910301300001S
Engine brace, left
7
7910301400001S
Engine brace, right
8
0035080156S
AH-COLLAR SCREW M8X15 TORX45
9
79607012000
TANK REST RUBBER
10
79111093000
wire holder le 19
11
61111041000
CABLE SUPPORT 07
12
79107013010
wire holder / fuel ventilation
14
54310086100
SELF LOCKING NUT M10 CU WS=14
15
77203014000
engine brac.scr. M10x115
16
47106003160
quick release rubber grommet
17
0035080306S
Vis (M8x30)
18
0025080306
Vis
19
0025060406
Vis
20
0125060003
WASHER DIN0125-A 6,4
21
79003096000
ENGINE SPROCKET COVER 250/350
22
79003053000
CHAIN SLIDER LOWER PART CPL.
23
0125100003
washer DIN 125 A 10.5
24
79003044000
FOOTREST SPRING R/S 2016
25
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
26
79003045000
FOOTREST SPRING L/S 2016
27
0094032253
PIN DIN0094-3,2X25 STEEL
28
79003041000
FOOTREST R/S 2016
29
79003040100
Foot grid left 2016
30
79003040133
Footpegs left+right cpl. 16
31
0014050123
Vis
32
54803092060
BUSH F. FRAME PROTECTION 03
33
44011076305
CABLE TIE 300/4,8MM BLACK
34
76311093200
CABLE TIE 200MM
35
2510309410030
Frame protection set
36
0081050121
EJOT PT screw K50x12
37
25105090044
HEAT PROTECTOR SET
