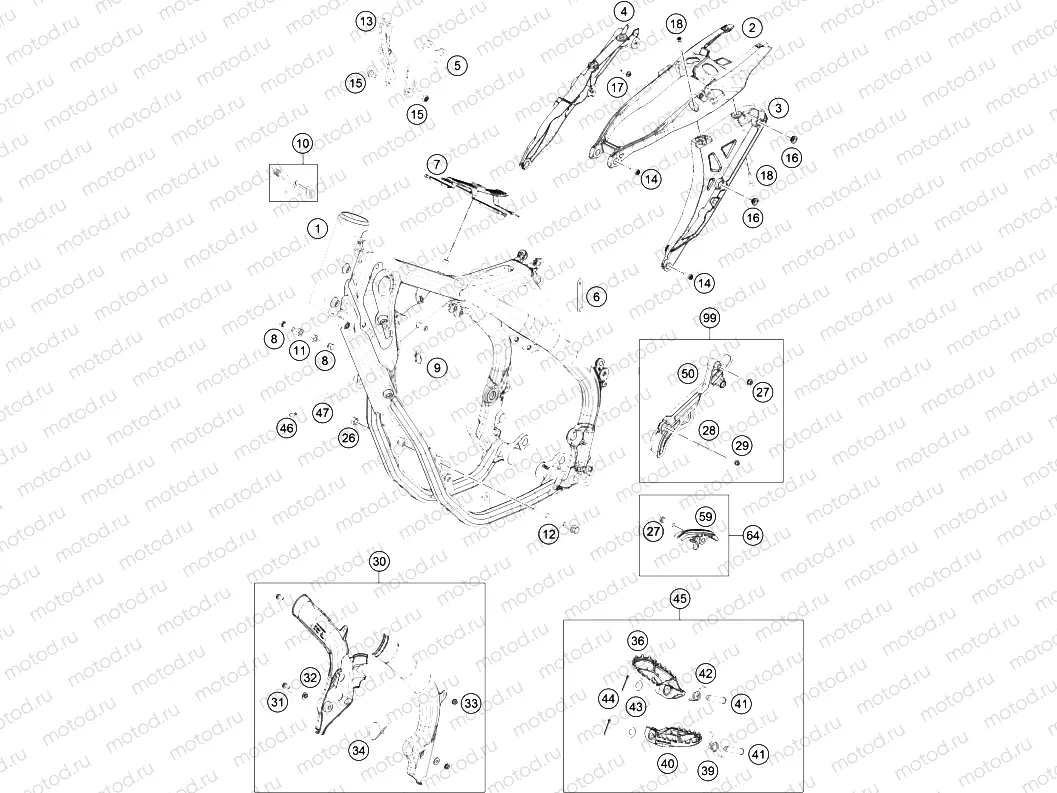

FRAME|Frame|03

FRAME|Frame|03
Например: 2500300110028
1
2500300110028
FRAME ''250Q1'' WEISS
2
2500300201033A
Rear frame top
3
25003002020
SUBFRAME L/S
4
25003002130
SUBFRAME RIGHT
5
79203113000
ENGINE BRACE LEFT
6
60011093075
RUBBER CABLE TIE 75MM 03
7
79607012000
TANK REST RUBBER
8
59001037000
Vis (spec)
9
58111076000
CABLE SUPPORT KHS NR.150-47610
10
78003035100
Steering lock
11
0934080003
Nut
12
77203014000
engine brac.scr. M10x115
13
79203114044
ENGINE BRACE RIGHT CPL.
14
0035080206S
HCS M8x20 TX45
15
0035080156S
AH-COLLAR SCREW M8X15 TORX45
16
47106003160
quick release rubber grommet
17
0017060205
Vis
18
0019080306S
COUNTER-SUNK SCREW ISA45 M8X30
26
54310086100
SELF LOCKING NUT M10 CU WS=14
27
0025080306
Vis
28
0125060003
WASHER DIN0125-A 6,4
29
0025060406
Vis
30
7900309400033
Frame Protection Set Black
3 492 ₽/шт
31
0014050123
Vis
32
54803092060
BUSH F. FRAME PROTECTION 03
33
0025060126
Vis
34
44011076140
CABLE TIE 140/2,5MM BLACK
34
44011076305
CABLE TIE 300/4,8MM BLACK
36
79603041000
FOOTREST R/S EXC 2017
39
79003044000
FOOTREST SPRING R/S 2016
40
79603040000
FOOTREST L/S EXC 2017
41
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
42
79003045000
FOOTREST SPRING L/S 2016
43
0125100003
washer DIN 125 A 10.5
44
0094032253
PIN DIN0094-3,2X25 STEEL
45
79603040133
Footrest-Set
46
50303089000
ANGLE PIECE '97
47
55007016001
PVC-HOSE 7X10 PER METER
50
79003096000
ENGINE SPROCKET COVER 250/350
59
79003053000
CHAIN SLIDER LOWER PART CPL.
64
79003053010
CHAIN SLIDING KIT BELOW CPL.16
99
79003096010
SPROCKET COVER KIT
