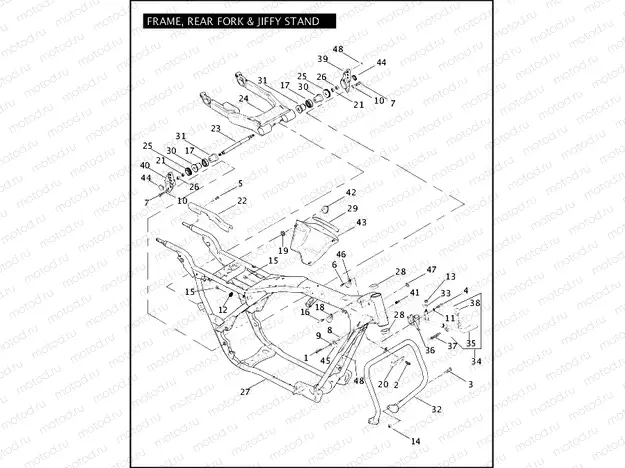

FRAME, REAR FORK & JIFFY STAND (1 OF 2)

FRAME, REAR FORK & JIFFY STAND (1 OF 2)

Например: 933

1

933

Vis

2

2708A

SCREW, HEX SOC HEAD CAP

3

3678

Vis

4

3987

SCREW, CAP

5

4017

pc - SCREW, HEX

6

4124

SCREW, TAPPING

7

4752

Vis

8

5207

Nut

9

6047

Rondelle

10

7039

Rondelle (Lock)

11

7041

Rondelle (Lock)

12

7232

Rondelle (Lock)

13

7596

Nut

14

7601

NUT, FLANGE LOCK

15

NUT

16

8483A

RIVET, BLIND

17

9208

BEARING, PIVOT

18

10076

CLAMP, MAIN HARNESS

19

11491A

GROMMET, SIDECOVER

19

14148-86

ENG GUARD,WARNING LABEL

20

RETAINER, cable, upper

20

RETAINER, cable, lower (not illustrated)

21

47491-02A

CUP WASHER

22

47502-97

FRAME COVER, LH

22

47504-97

FRAME COVER, RH

23

47505-02

PIVOT SHAFT

24

47549-02A

FORK ASSY, REAR

25

47564-86B

MOUNT, SWINGARM

26

47606-02

NUT, PIVOT

27

47900-02A

FRAME, FLT (WITH KIT)

28

48315-60

STEERING HEAD BEARING CUP

29

48419-04

PROTECTIVE TAPE, S/COVER RH

29

48420-04

PROTECTIVE TAPE, S/COVER LH

30

48487-02

SPACER, PIVOT, END CAP

31

48489-02

SPACER, PIVOT

32

49184-97

ENGINE GUARD, FRONT

33

50015-74A

JIFFYSTAND CATCH

34

50075-83B

JIFFY STAND KIT

35

50075-83B

JIFFY STAND KIT

36

50078-81B

JIFFY BRACKET, CHROME

37

50112-99

JIFFY STAND SPRING

38

50245-99A

BUMPER

39

50588-03

BRACKET, FOOTBOARD MOUNT, LH

40

50589-03

BRACKET, FOOTBOARD MOUNT, RH

41

FITTING, lubrication

42

66055-93

WEAR PAD, SIDE COVER
