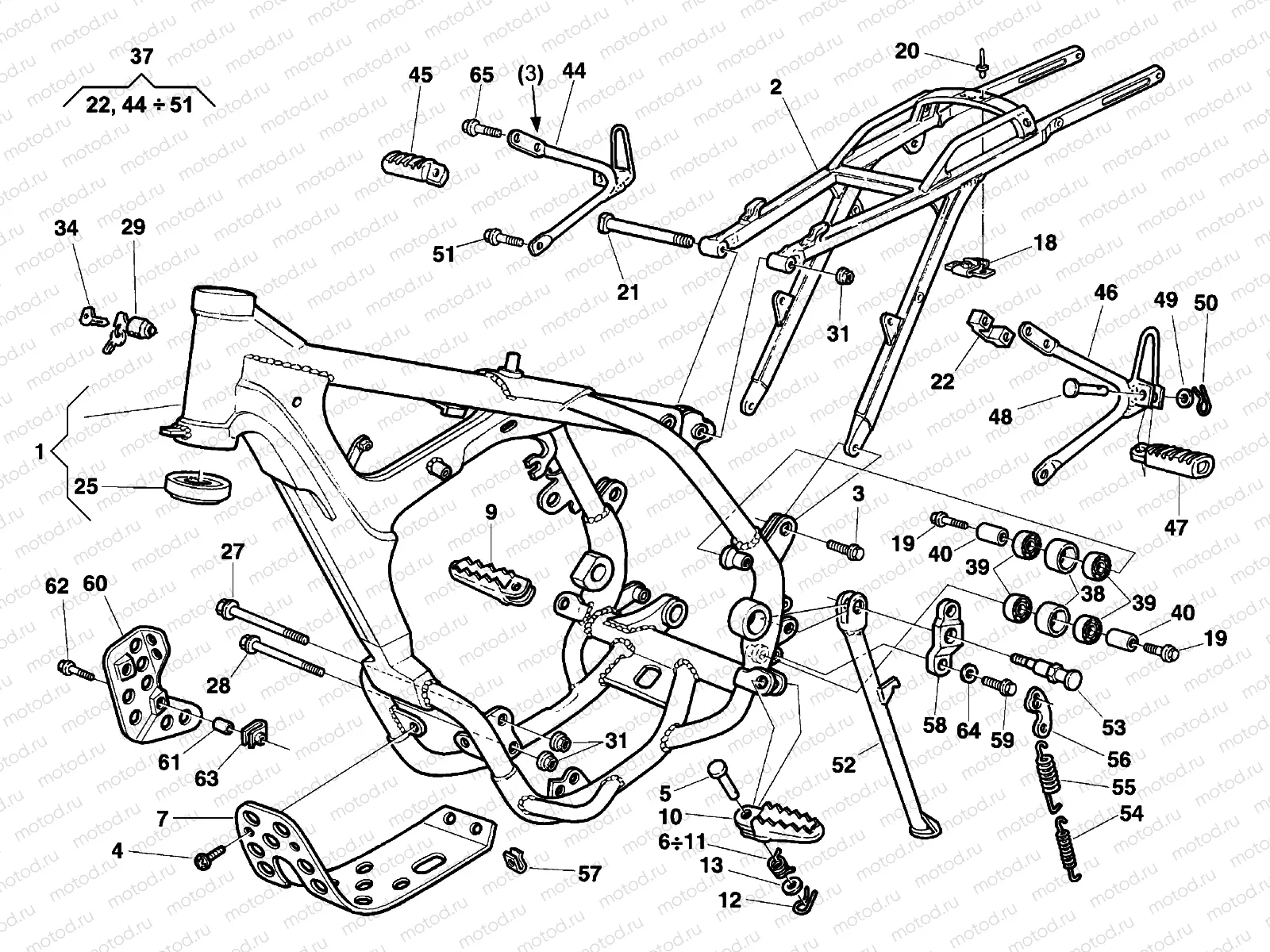

FRAME - FOOTRESTS

FRAME - FOOTRESTS
Например: 8A0099587
1
8A0099587
FRAME
1
8C0099587
FRAME
2
8000A0597
REAR FRAME
3
Z00069056
Vis
4
800060898
SCREW TTEI M6X1.00X15
5
Y00073140
FOOTREST PIN
6
800096907
SPRING, FOOTREST, LH
7
8000A0865
PROTECTOR, ENGINE
9
80A089953
Repose pieds (Front RH)
10
80A089962
Repose pieds (Front LH)
11
800096908
SPRING, FOOTREST, RH
12
64ND20068
PIN
13
ZA0001815
Rondelle
18
SPMV800069150
2 pc - SUPPORT, SEAT LOCK, PASSENGER
19
Z00062796
Vis
20
800033373
RIVET 3.3X14
21
Y00069111
Vis
22
8A0071091
U-BOLT
25
151307001
CONICAL ROLLERS BEARING 25-50-
27
YG0073458
Vis
28
YG0073458
Vis
29
800043391
LOCK, STEERING
31
Y00043928
Nut (Lock)
34
800035531
Raw key
37
8000A0677
FOOTREST BRACKET KIT
38
8AA059433
ROLLER, CHAIN TENSIONER
39
800063312
Bearing(ø8xØ22x7mm)
40
8A0059434
Entretoise
44
8000A0676
BRACKET, REAR RIGHT FOOTREST
45
800066652
Repose pieds (REAR RH)
46
8000A0675
BRACKET, REAR LEFT FOOTREST
47
800066651
Repose pieds (REAR LH)
48
800041459
Vis
49
62N115504
WASHER 6.4X12X1
50
64ND20048
PIN, COTTER 1.3X12
51
77251328B
pc - Vis (M8x25)
52
8000A0264
Béquille latérale
53
8000A0266
SCREW M8X25
54
8000A0268
Spring (Inner)
55
8000A0269
SPRING SIDE STAND OUTER (Outer)
56
8000A0267
PLATE
57
U00046893
Clip nuts (M6x1)
58
800099613
BRACKET, SIDE STAND
59
60N101108
SCREW TE M7X1.00X16
60
8000A1427
GUARD. RH CRANKCASE
61
8A0067207
Entretoise
62
Z00062730
Vis
63
U00046893
Clip nuts (M6x1)
64
62N115505
Rondelle
65
SPMV8B0069056
pc - Vis
