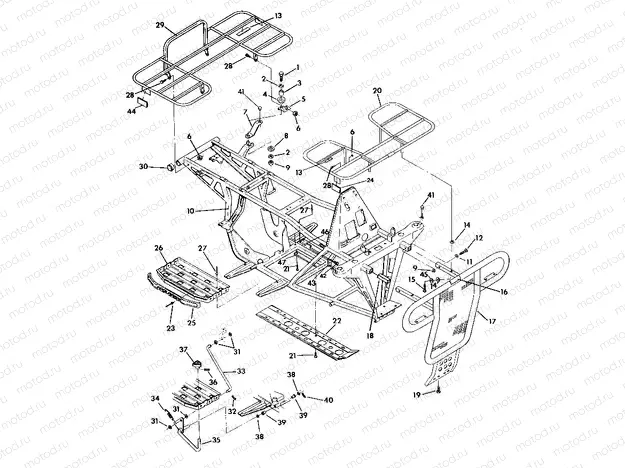

Главная Каталог товаров Polaris EPC 1992 Polaris ATV Polaris 1992 TRAIL BOSS 350L 2X4 (W927539) Polaris 1992 ATV FRAME ASSEMBLY w/RACKS 350 2X4 / W927539 (4922882288003A) | FRAME ASSEMBLY w/RACKS 350 2X4 / W927539 (4922882288003A)

FRAME ASSEMBLY w/RACKS 350 2X4 / W927539 (4922882288003A) | FRAME ASSEMBLY w/RACKS 350 2X4 / W927539 (4922882288003A)

FRAME ASSEMBLY w/RACKS 350 2X4 / W927539 (4922882288003A) | FRAME ASSEMBLY w/RACKS 350 2X4 / W927539 (4922882288003A)

Например: 7515304

1

7515304

SCREW-FLANGED

2

7555716

Rondelle

3

5010192

BUSHING

4

5412508

DAMPENER-VIBRATION

5

5220901-067

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5

5243468-067

BRKT SUPPORT RACK LH BLK

6

7542327

NUT NYLOK

7

5220902-067

SUPPORT R.FENDER

8

5410436

Rondelle (Rubber)

9

7542324

Nut (SELF-LOCKING)

10

1040233-067

FRAME, SQUARE [No Longer Available]

11

7558402

WASHER FLAT

12

7512329

Vis

13

5810455

PAD

14

7558301

WASHER FLAT

15

7512163

Vis

16

7073455

DECAL, F.SUSP.

17

2670125-067

BUMPER FRT BLK(2X4 350)

18

5810467

PLUG FRAME

19

7512399

Vis

20

2670137-067

RACK FRT.BLK.

21

7512232

Vis

22

5220922-067

GUARD, ROCK, BLK.

23

7661825

RIVET

24

2670134

ASM. REFLECTOR AMBER

25

5431484

TRIM, FOOTREST

26

1040274-117

FOOTPAD,LH,SILVER

27

7661637

RIVET INTERLOCK Z

28

7515355

Vis

29

2670138-067

RACK REAR

30

5430823

CAP, BUMPER, 4 WHL.(10) Substituted by 5410794

31

7555827

Rondelle

32

7661103

PIN COTTER

33

5224394

ROD,BRAKE LINKAGE Substituted by 5224446

34

7042029

Spring

35

1910063-067

PEDAL, BRAKE

36

7661416

PIN, SPIRAL(10)

37

5130715-067

PEDAL FOOT

38

7558702

WASHER THRUST

39

5431107

BUSHING PEDAL PIVOT

40

7661401

PIN COTTER

41

5410012

PLUG RUBBER-HOLE .5DIA

42

7512208

Vis

43

5222665

TAB, SPRINGS

44

2670133

REFLECTOR ASM RED

45

7552801

Rondelle (Lock)

46

5211359-067

GUARD,CLUTCH,INNER

47

5222860-067

GUARD,CLUTCH,OUTER
