Главная Каталог товаров APRILIA Motor EPC DORSODURO 900 APRILIA Motor 2017 APRILIA DORSODURO 900 Dorsoduro 900 ABS (APAC) APRILIA DORSODURO 900 (VIN: ZD4KB000) Frame

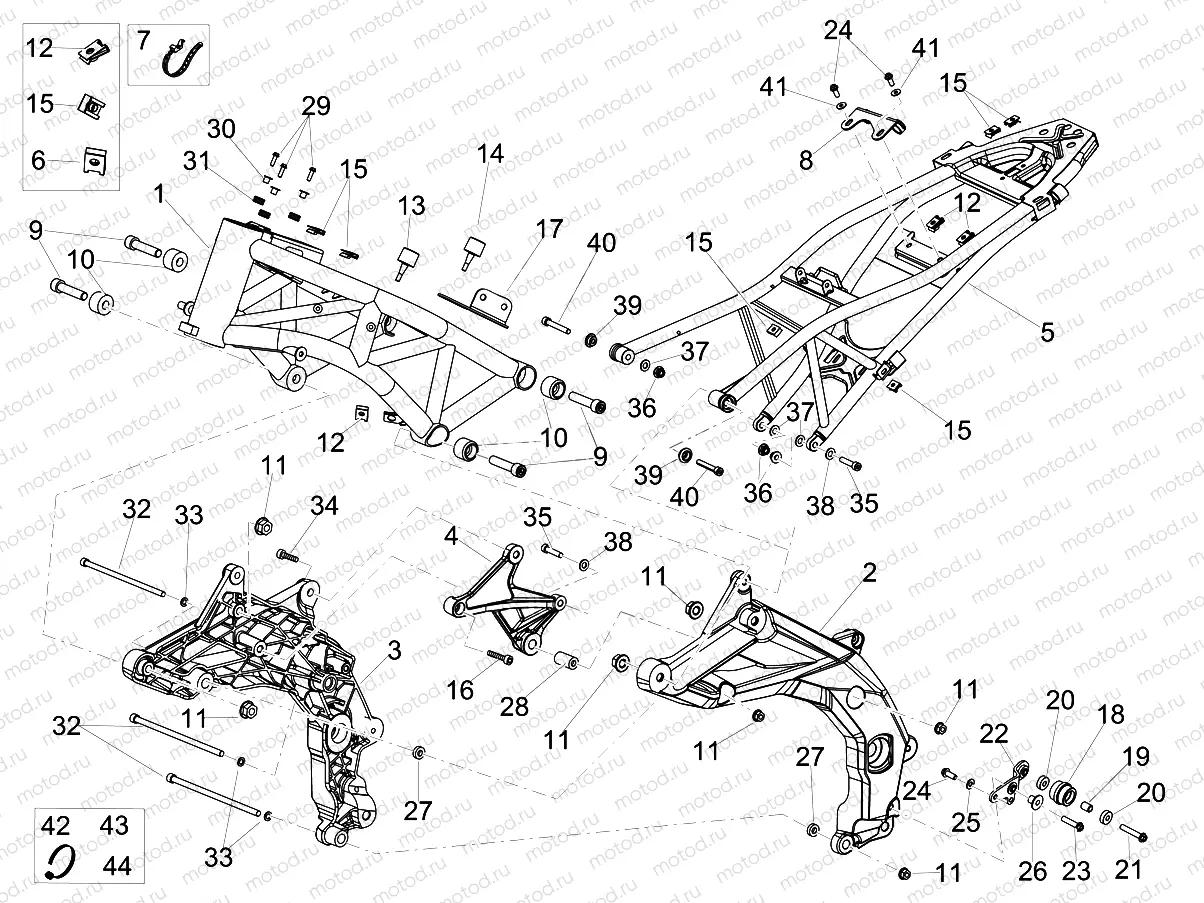

Frame

Frame
Например: 89886800XR8
1
89886800XR8
Front frame,red
2
85153700XNB
LH side panel, black
3
85153600XNB
RH flank frame,black
4
851541
Shock absorber plate
5
85495200XR8
Saddle support, Red
6
AP8102375
Clip nuts (M5)
7
GU06609600
2 pc - Collier
8
851789
Exhaust pipe support clamp
9
852165
4 pc - Vis
10
853037
Bush
11
271740
Nut
12
575268
Clip nuts (M8)
13
AP8144277
Stand end stop
14
AP8144030
Stand end stop
15
254485
Clip nuts (M6)
16
AP8150195
pc - Vis (M10x30)
17
860404
Plate
18
AP8161074
Black chain guide roller
19
AP8161076
Entretoise
20
AP9100175
Roulement
21
AP8152291
0 pc - Vis
22
890206
Upper plate
23
2B004782
M8x35 flanged hex head screw
24
2B002416
rake disc fixing screw (M8x2)
25
AP8150009
Rondelle
26
AP8121332
Entretoise
27
853036
Entretoise
28
853035
Entretoise
29
AP8150044
Vis
30
AP8221023
5 pc - Entretoise
31
AP8120030
Rubber spacer
32
851784
Engine pin
33
AP8150101
pc - Rondelle
34
AP8150329
pc - Vis
35
2B002216
Hex socket screw M 8X35
36
272176
Nut
37
AP8150376
pc - Rondelle (spring)
38
AP8150017
pc - Rondelle
39
860909
Bush
40
AP8150046
pc - Vis
41
AP8150018
pc - Rondelle
42
AP8120422
Black hose 2.5X99
43
AP8120657
Hose clamp 4.5X280
44
AP8102386
50 pc - Collier
