Главная Каталог товаров APRILIA Motor EPC CAPONORD APRILIA Motor 2013 APRILIA CAPONORD Caponord 1200 APRILIA CAPONORD (VIN: ZD4VK000, ZD4VKA, ZD4VK001, ZD4VKA01) Frame

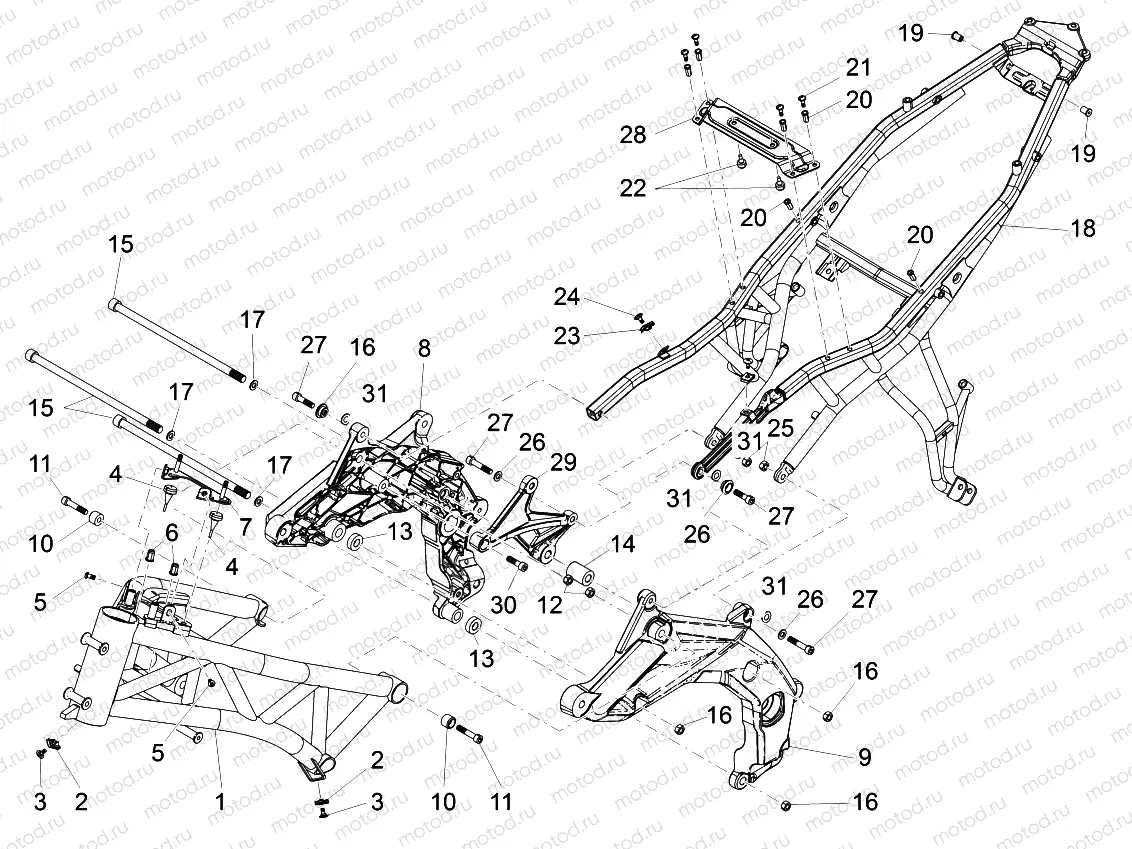

Frame

Frame
Например: B04511400XI1
1
B04511400XI1
Frame
3
AP8150500
pc - Vis
4
AP8220238
6 pc - Damper
5
AP8150537
pc - Vis (M6x12)
6
AP8102902
pc - Hex threaded insert
7
B046009
Front stirrup
8
85153600XNB
RH flank frame,black
9
85153700XNB
LH side panel, black
10
853037
Bush
11
852165
4 pc - Vis
13
853036
Entretoise
14
896014
Entretoise
15
851784
Engine pin
16
271740
Nut
17
AP8150101
pc - Rondelle
18
2B001622
Saddle support
18
B044216
Saddle support
19
AP8120531
Rubber w/ insert
20
AP8201755
Threaded rivet
21
AP8152298
Vis
22
AP8120001
5 pc - Rubber spacer
23
AP8102375
Clip nuts (M5)
24
AP8152339
Vis
25
020008
10 pc - Nut
26
AP8150017
pc - Rondelle
27
AP8150236
pc - Vis
28
B045316
Support bracket
29
851541
Shock absorber plate
30
AP8150195
pc - Vis (M10x30)
31
AP8150272
pc - Curved spring washer 5,3x10x0,5
