Главная Каталог товаров YAMAHA EPC 700 cm³ - 1099 cm³ YAMAHA GTS 1000 YAMAHA GTS1000A (4FE1) 1993 YAMAHA GTS 1000 (VIN: 4BH) FRAME

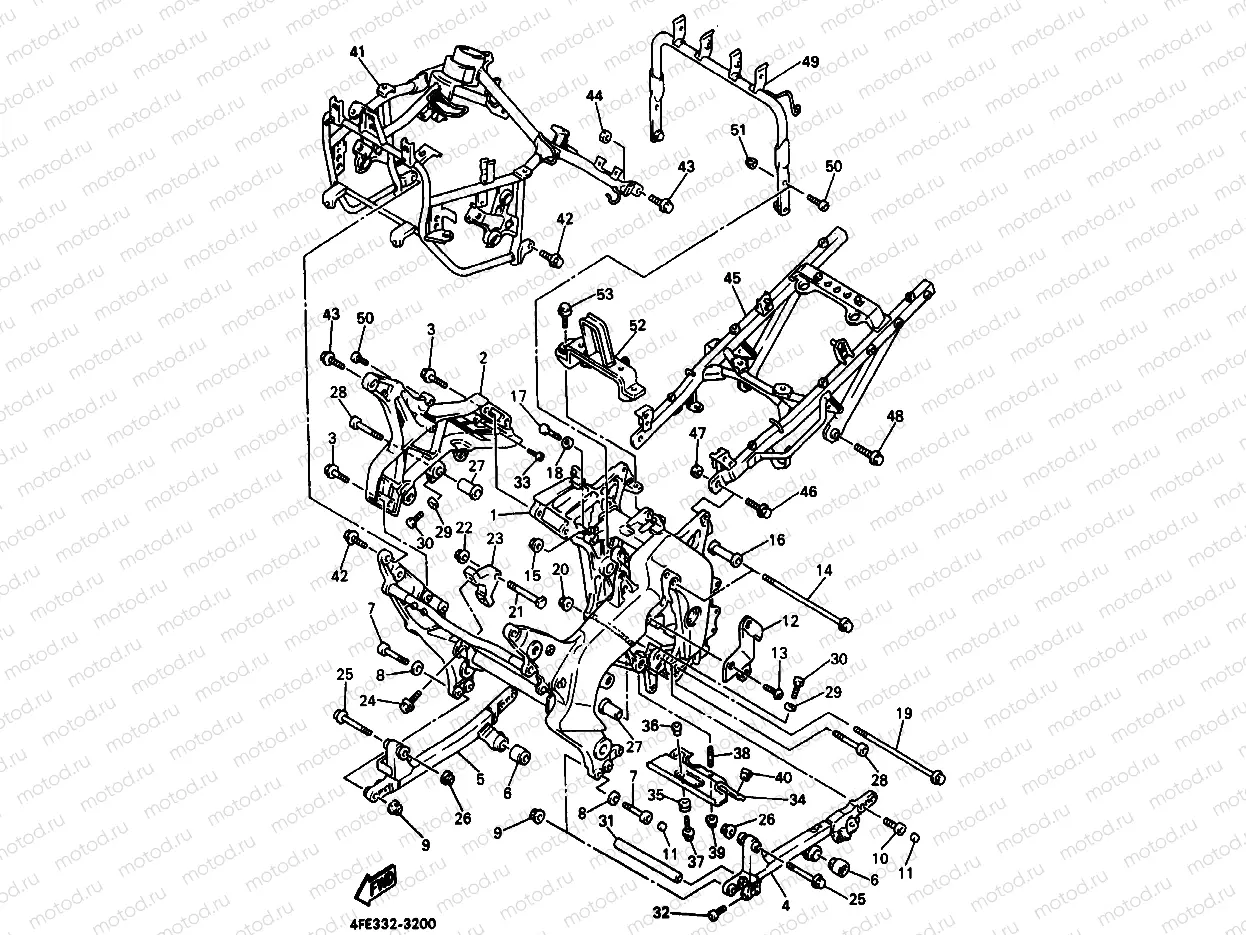

FRAME

FRAME
Например: 4BH-21110-01-P1
1
4BH-21110-01-P1
FRAME COMP.
2
4BH-21102-00-P1
SIDE MEMBER SUB-ASSY
3
90105-10678
Болт с шайбой
117 ₽/шт
4
4BH-21140-00-35
DOWN TUBE COMP.
5
4BH-21150-00-35
DOWN TUBE COMP.2
6
4FU-27424-00
Damper, Footrest 2
3 823 ₽/шт
7
90110-10218
Vis
8
90201-126A7
Шайба
175 ₽/шт
9
90185-10170
Гайка самоконтрящаяся
699 ₽/шт
10
91314-10025
Болт
397 ₽/шт
11
90336-08026
Пробка
111 ₽/шт
12
4BH-2117F-00-P1
Cover
34 395 ₽/шт
13
90149-06302
Винт
381 ₽/шт
14
90105-10401
Болт с шайбой
1 351 ₽/шт
15
90179-10682
NUT
16
3TJ-21459-00
Кольцо/шайба
3 898 ₽/шт
17
97017-08035
Болт
191 ₽/шт
18
92990-08200
Шайба
95 ₽/шт
19
90105-10N53
Болт
1 065 ₽/шт
20
95704-10500
Гайка
95 ₽/шт
21
90105-10737
Болт с шайбой
715 ₽/шт
22
95704-10500
Гайка
95 ₽/шт
23
4BH-21315-00
STAY, ENGINE 2
24
95817-10025
Болт
95 ₽/шт
25
90105-10480
Болт
604 ₽/шт
26
95704-10500
Гайка
95 ₽/шт
27
90387-115VB
Entretoise
28
91312-10045
Болт
318 ₽/шт
29
92990-08200
Шайба
95 ₽/шт
30
97017-08035
Болт
191 ₽/шт
31
4BH-21423-00
TUBE, CROSS
32
91314-08025
Болт
152 ₽/шт
33
98517-06012
Винт
159 ₽/шт
34
4BH-21183-00
PLATE
35
90480-20571
Grommet
234 ₽/шт
36
90387-083R4
Втулка
433 ₽/шт
37
90119-08113
Болт
288 ₽/шт
38
95622-06312
Болт заклепка
368 ₽/шт
39
95780-06500
Гайка
95 ₽/шт
40
90480-14153
Grommet (420)
286 ₽/шт
41
99999-02335
Front Frame Kit (4Bh1, Clamp)
284 323 ₽/шт
42
95817-10025
Болт
95 ₽/шт
43
90105-10115
Bolt, Flange
436 ₽/шт
44
90185-10170
Гайка самоконтрящаяся
699 ₽/шт
45
4FE-21190-00
REAR FRAME COMP
46
90105-10115
Bolt, Flange
436 ₽/шт
47
90185-10170
Гайка самоконтрящаяся
699 ₽/шт
48
95817-10030
Болт
95 ₽/шт
49
4BH-21348-00
RACKT, TANK FITTING
50
91317-08025
Болт
95 ₽/шт
51
95303-08000
NUT,CROWN
52
4FE-21345-00
BRAKET,TANK FITTING
53
90105-08X15
pc - Vis
