Главная Каталог товаров KTM EPC 2019 KTM Street KTM 2019 Supermoto KTM 2019 Street 690 SMC R (F9775S9) [US] KTM FRAME

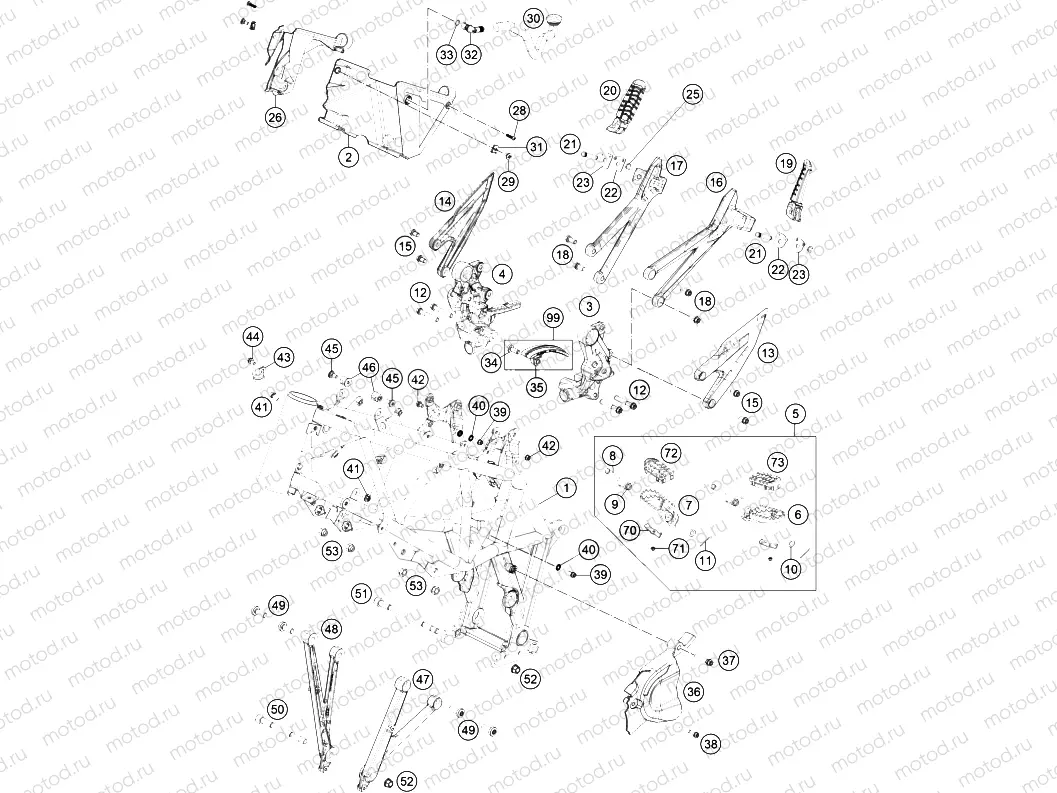

FRAME

FRAME
Например: 76903001000EB
1
76903001000EB
Frame 769 el. orange
2
76903092000
Frame cover left
3
76903038044
Front footpeg bracket left cmp
4
76903039044
Right footpeg holder cpl.
5
60003040133
FOOTPEG LS+RS CPL.
6
78003040050
FOOTREST L/S 08
7
78003041050
FOOTREST R/S 08
8
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
9
54603041000
FOOTREST SPRING L/S & R/S
10
0125100003
washer DIN 125 A 10.5
11
0094032253
PIN DIN0094-3,2X25 STEEL
12
0025080456
Vis
13
76903038050
Heel protector, left
14
76903039050
Heel protector, right
15
0025080126
Vis
16
7690304800001
Rear footpeg bracket left
17
7690304900001
Rear footpeg bracket right
18
0025080166
Vis
19
60003050000
FOOTREST CPL. L/S REAR 03
20
60003051000
FOOTREST CPL. R/S REAR 03
21
60003044000
BOLT FOR FOOTREST REAR 03
22
60003152000
ENGAGE PANEL FOOTREST L/S 03
23
60003052000
ENGAGE PANEL FOOTREST R/S 03
25
0799060003
retaining washer DIN 6799 - 6
26
76903086000
Frame cover right
28
0081250181
SCREW FOR PLASTIC 50X18 T20
29
69008021160
Vis (spec)
30
76930088030
oil separator vent
31
69008021080
clip nut M5
32
60038082000
ANGLE CONNECTOR LC8 03
33
0770080020
O-RING 8X2 SILICONE
34
0035080206S
HCS M8x20 TX45
35
76504067000
CHAIN SLID. GUARD 08
36
76530060044
Guard chain sliding shoe
37
0025080356
Vis
38
0025060406
Vis
39
0025060126
Vis
40
58411098100
CONTACT WASHER M6 VSV-K6
41
0024060106
Vis
42
0025060086
Vis
43
49007439000
CLAMP RSGU 15/12
44
0025050126
Vis
45
69008021040
Vis (spec)
46
76907026000
Seat holder
47
7650300500033
Engine Support L/s Black
11 992 ₽/шт
48
7650300600033
Engine Support R/s Black
12 270 ₽/шт
49
0035100249
SHCS M10x24 TX45
50
75003015000
Vis (spec)
51
75003014000
Vis (spec)
52
55530044000
Nut
53
54310086100
SELF LOCKING NUT M10 CU WS=14
70
60003044010
CLOSING PANEL FRONT L/S R/S 03
71
0985050003
SELF LOCKING NUT DIN0985-M 5
72
60003041010
FOOTREST RUBBER FRONT R/S 03
73
60003040010
FOOTREST RUBBER FRONT L/S 03
99
76504067010
CHAIN SLIDING BELOW 08-13
