Главная Каталог товаров KTM EPC 2017 KTM Offroad KTM 2017 Enduro KTM 2017 Offroad 450 RALLY FACTORY REPLICA (F9375Q8) [US] KTM FRAME

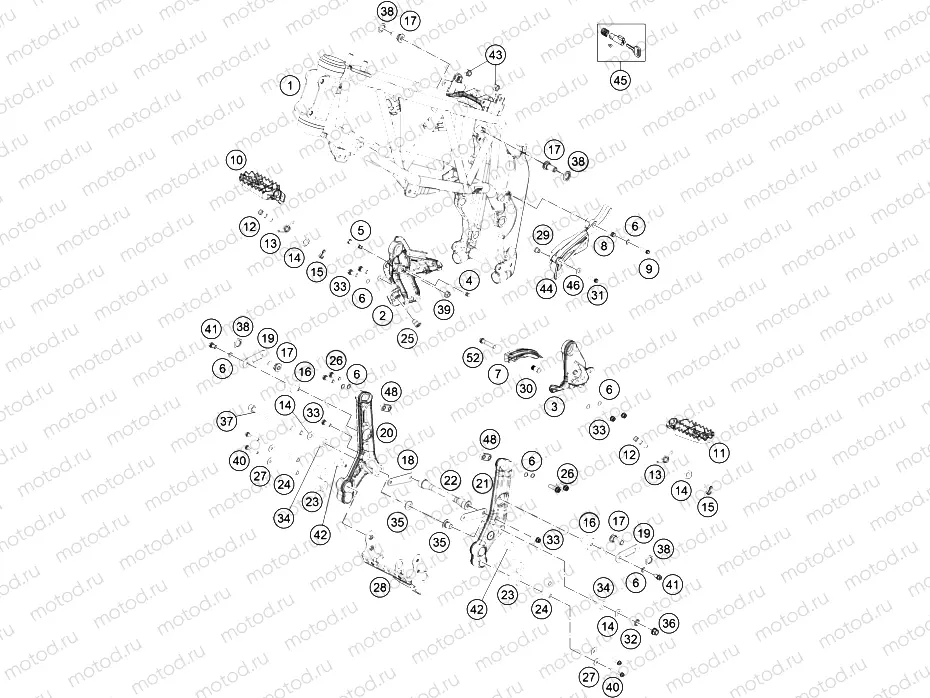

FRAME

FRAME
Например: 7640310100004
1
7640310100004
FRAME 450 RALLY ORANGE
2
76403139000
FOOTREST BRACKET RIGHT
3
76403138000
FOOTREST BRACKET LEFT
4
76413050010
Mechanical Stop
5
76413050030
Vis
6
36003014000
Rondelle (Lock)
7
76404066000
CHAIN SLIDING PART
8
51103053051
BUSHING 8,2X10X20
9
0025080356
Vis
10
76203041250
FOOTREST RIGHT RALLY 07
11
76203040250
FOOTREST LEFT RALLY 07
12
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
13
54603041000
FOOTREST SPRING L/S & R/S
14
0125100003
washer DIN 125 A 10.5
15
0094032253
PIN DIN0094-3,2X25 STEEL
16
76305062000
RUBBER GROMMET 30X20-M8X20
17
76407063000
FIXING SCREW TANK
18
76403005030
RADIATOR STRUT
19
76403034000
FUEL TANK SUPPORT PLATE
20
76403106000
ENGINE SUPPORT RIGHT
21
76403105000
ENGINE SUPPORT LEFT
22
76403005040
CROSS MEMBER
23
76203005031
RUBBER INSERT
24
76203005050
BUSH ENGINE SUPPORT
25
76403044000
PRESS IN NUT
26
0025080256
Vis
27
0021060003
Rondelle
28
76412099024
ENGINE GUARD BRACKET CPL.
29
76430047005
SPACER BUSHING CHAIN GUARD
30
76304266001
BUSHING
31
0025060356
Vis
32
50233041100
Rondelle (Lock)
33
0025080206
Vis
34
76203018000
ELASTOMER BEARING
35
76203019000
COLLAR BUSH FOR ELAST.BEARING
36
55530044000
Nut
37
0912101603
AH SCREW DIN0912-M10X160
38
60512063050
NUT F.TANK BRAKET REAR
39
56509064100
SELF LOCKING NUT M6 10.9
40
0025060356
Vis
41
0933080103
HH SCREW DIN0933-M 8X10
42
58538010000
RUBBER GROMMET 20X11/M6X18 01
43
54310086100
SELF LOCKING NUT M10 CU WS=14
44
76403096000
Sprocket cover
45
78003035100
Steering lock
46
0125060003
WASHER DIN0125-A 6,4
48
76403007000
NUT PLATE
52
0025080406
Vis
